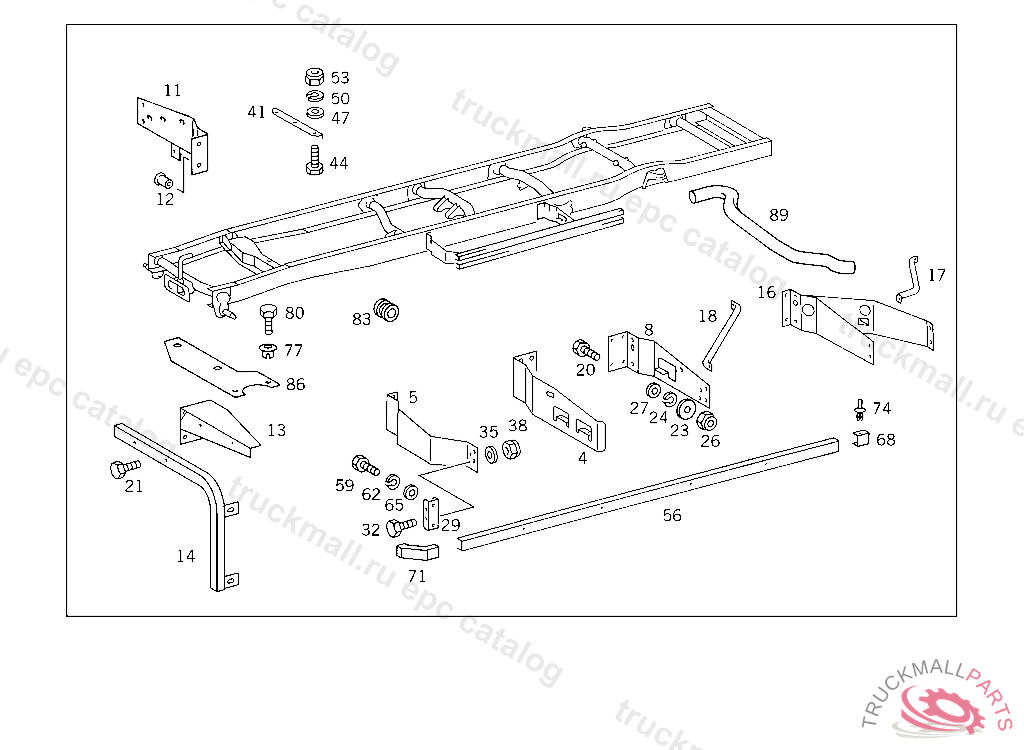

Поз.
Артикул
Описание
4
SUPPORT LEFT LATERAL UNDERRUN PROTECTION
5
SUPPORT UNDERRUN PROTECTION LINKS, TO BE ADAPTED DURING ASSEMBLY
5
SUPPORT UNDERRUN PROTECTION
5
BRACKET , Replaced By: A6675200233
5
BRACKET , Replaced By: A6675200033
8
BRACKET , Replaced By: A6675202033
8
BRACKET , Replaced By: A6675202233
8
SUPPORT , Replaced By: A6675251439, +001A6675255939
8
SUPPORT UNDERRUN PROTECTION, TO BE ADAPTED DURING ASSEMBLY
8
BRACKET
8
SUPPORT UNDERRUN PROTECTION
8
SUPPORT
8
SUPPORT LEFT LATERAL UNDERRUN PROTECTION
8
SUPPORT UNDERRUN PROTECTION RECHTS
11
BRACKET UNDERRUN PROTECTION RECHTS,N 017994
11
BRACKET UNDERRUN PROTECTION,N 017993 TO BE ADAPTED DURING ASSEMBLY
11
SUPPORT UNDERRUN PROTECTION LINKS, TO BE ADAPTED DURING ASSEMBLY
11
SUPPORT UNDERRUN PROTECTION RECHTS
11
SUPPORT , Replaced By: A6675200133, +001A6675255939
11
SUPPORT , Replaced By: A6675256839, +001A6675256139
12
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
13
BRACKET UNDERRUN PROTECTION
13
BRACKET UNDERRUN PROTECTION
14
BRACKET LATERAL UNDERRUN PROTECTION TO PLATFORM MEMBER ON THE RIGHT,NO.:
14
BRACKET LATERAL UNDERRUN PROTECTION TO PLATFORM MEMBER ON THE LEFT,NO.:
16
SUPPORT UNDERRUN PROTECTION RECHTS, TO BE ADAPTED DURING ASSEMBLY
16
SUPPORT , Replaced By: A6675200333, +001A6675256039
17
STRUT , Replaced By: A6675200232
17
STRUT , Replaced By: A6675200332
17
STRUT UNDERRUN PROTECTION AND BRACKET TO FRAME
17
STRUT UNDERRUN PROTECTION AND BRACKET TO FRAME
17
STAY UNDERRUN PROTECTION AND BRACKET TO FRAME,198731
17
STRUT UNDERRUN PROTECTION AND BRACKET TO FRAME
17
STAY UNDERRUN PROTECTION AND BRACKET TO FRAME, TO BE ADAPTED DURING ASSEMBLY
17
STRUT UNDERRUN PROTECTION AND BRACKET TO FRAME
18
STAY UNDERRUN PROTECTION AND BRACKET TO FRAME,198731
18
STRUT UNDERRUN PROTECTION AND BRACKET TO FRAME,198731
18
STRUT , Replaced By: A6675200232
20
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
20
SCREW BRACKET TO CROSS CONNECTION STRUT
20
HEXAGON HEAD BOLT BRACKET TO BRACKET
21
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
21
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
23
WASHER , Replaced By: N009021008213
23
WASHER BRACKET TO BRACKET
23
WASHER RADIATOR TO RUBBER MOUNTING
23
WASHER BRACKET TO LEFT SIDE MEMBER
24
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
26
NUT CROSS MEMBER TO SIDE MEMBERS
26
NUT STRAP TO BRACKET
27
WASHER , Replaced By: A1894660751
27
SPACER RING PIPE ELBOW TO BRACKET,K 023462
27
SPACER TUBE LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
29
BRACKET UNDERRUN PROTECTION TO SUPPORT LINKS
29
BRACKET UNDERRUN PROTECTION TO SUPPORT
29
BRACKET UNDERRUN PROTECTION TO SUPPORT RECHTS
29
BRACKET , Replaced By: A6675254039
32
SCREW CABLE HARNESS MOUNTING
35
WASHER EXHAUST MUFFLER TO STRAP
38
NUT STRAP TO BRACKET
41
REINFORCEMENT
44
SCREW CABLE HARNESS MOUNTING
44
SCREW BRACKET TO CROSS CONNECTION STRUT
47
WASHER BRACKET TO LEFT SIDE MEMBER
47
WASHER EXHAUST MUFFLER TO STRAP
47
WASHER , Replaced By: N009021008213
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
53
NUT STRAP TO BRACKET
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
56
RAIL UNDERRUN PROTECTION
59
SCREW STOP TO SUPPORT
59
SCREW DOOR CHECK TO BODY M8 X 20
62
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER BRACKET TO LEFT SIDE MEMBER
65
WASHER , Replaced By: N009021008213
68
CAP UNDERRUN PROTECTION
71
CAP UNDERRUN PROTECTION
71
CAP UNDERRUN PROTECTION
74
RIVET , Replaced By: A0019901692
74
RIVET BRACKET TO BATTERY FRAME, 042 011569 ALSO INSTALLED ON 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 045 009132 ALSO INSTALLED ON 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 046 000987 ALSO INSTALLED ON 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
77
BUSHING AIR RESERVOIR DRAIN,5 593023
80
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
83
GROMMET O.D., 36 MM
86
PLATE PRESSURE REGULATOR,FOUR-CIRCUIT PROTECTIVE VALVE
89
REAR EXHAUST PIPE
999
MOUNTING PLATE UNDERRUN PROTECTION AND BRACKET TO FRAME
999
MOUNTING PLATE UNDERRUN PROTECTION
999
CABLE AIR RESERVOIR
999
BRACKET
999
BRACKET
999
BRACKET
