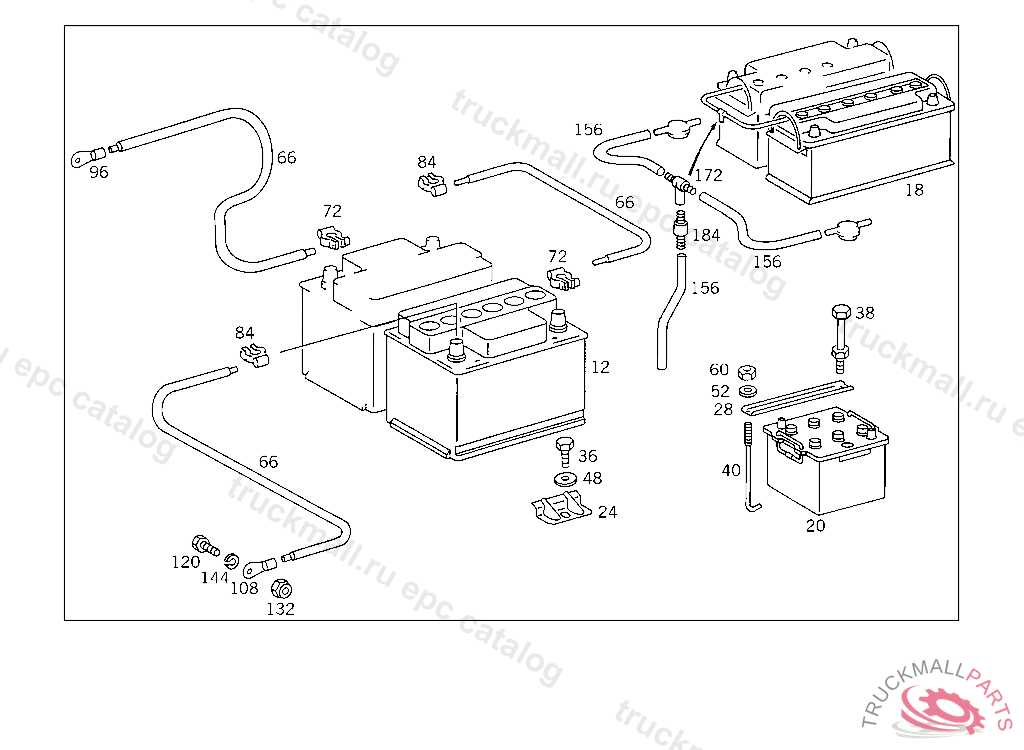

Поз.
Артикул
Описание
12
BATTERY12V/88AH
12
BATTERY , Replaced By: A0025414101
12
BATTERY , Replaced By: A0045411501
12
BATTERY , Replaced By: A0045413101
12
BATTERY12V/88AH, Replaced By: A0009823808
18
BATTERY12 V 90 AH
20
BATTERY12V 125 AH
24
ANGLE BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
28
CLAMPING RAIL BATTERY MOUNTING
36
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
SCREW RAIL TO BATTERY SUPPORT, N 000001 P 062531
40
SCREW BATTERY MOUNTING
48
WASHER BRACKET TO LEFT SIDE MEMBER
48
WASHER , Replaced By: N009021008213
52
WASHER , Replaced By: N009021006208
52
WASHER COMPRESSED AIR LINE TO BRACKET
60
NUT SPRING-LOADED PUSH ROD
66
ELECTRIC CABLE , Replaced By: A6735460011
66
ELECTRIC CABLE , Replaced By: A6735460013
66
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
66
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
72
SOLDERING TERMINAL POS. POLE
72
SOLDERING TERMINAL POS. POLE
84
SOLDERING TERMINAL NEG.POLE
84
SOLDERING TERMINAL POS. POLE
96
CABLE SHOE BATTERY CABLE
108
CABLE SHOEA 10-35
108
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
120
SCREW POS. POLE
132
NUT POS. POLE
144
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
156
HOSE BREATHER LINE 65X45 MM, ORDER BY THE METER
156
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
172
T-FITTING LINE CONNECTIONS
184
CONNECTOR LINE CONNECTIONS
999
MOUNTING RAIL
