Поз.
Артикул
Описание
5

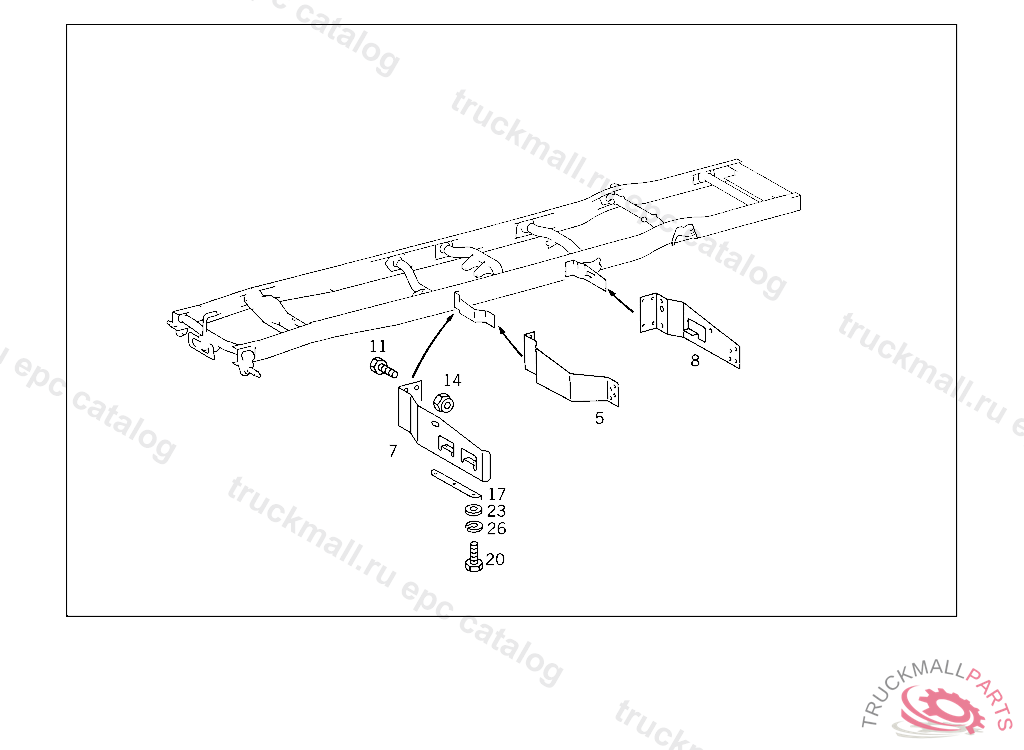

SUPPORT UNDERRUN PROTECTION LINKS, TO BE ADAPTED DURING ASSEMBLY
5
SUPPORT UNDERRUN PROTECTION LINKS, TO BE ADAPTED DURING ASSEMBLY
5
SUPPORT UNDERRUN PROTECTION
5
BRACKET , Replaced By: A6675200233
5
SUPPORT , Replaced By: A6675200133, +001A6675255939
7
SUPPORT LEFT LATERAL UNDERRUN PROTECTION
8
SUPPORT
8
SUPPORT
8
SUPPORT , Replaced By: A6675201233, +001A6675256039
11
HEXAGON HEAD BOLT BRACKET TO BRACKET
14
NUT CROSS MEMBER TO SIDE MEMBERS
17
REINFORCEMENT
20
SCREW CABLE HARNESS MOUNTING
20
SCREW BRACKET TO CROSS CONNECTION STRUT
23
WASHER BRACKET TO LEFT SIDE MEMBER
23
WASHER , Replaced By: N009021008213
23
WASHER EXHAUST MUFFLER TO STRAP
26
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
