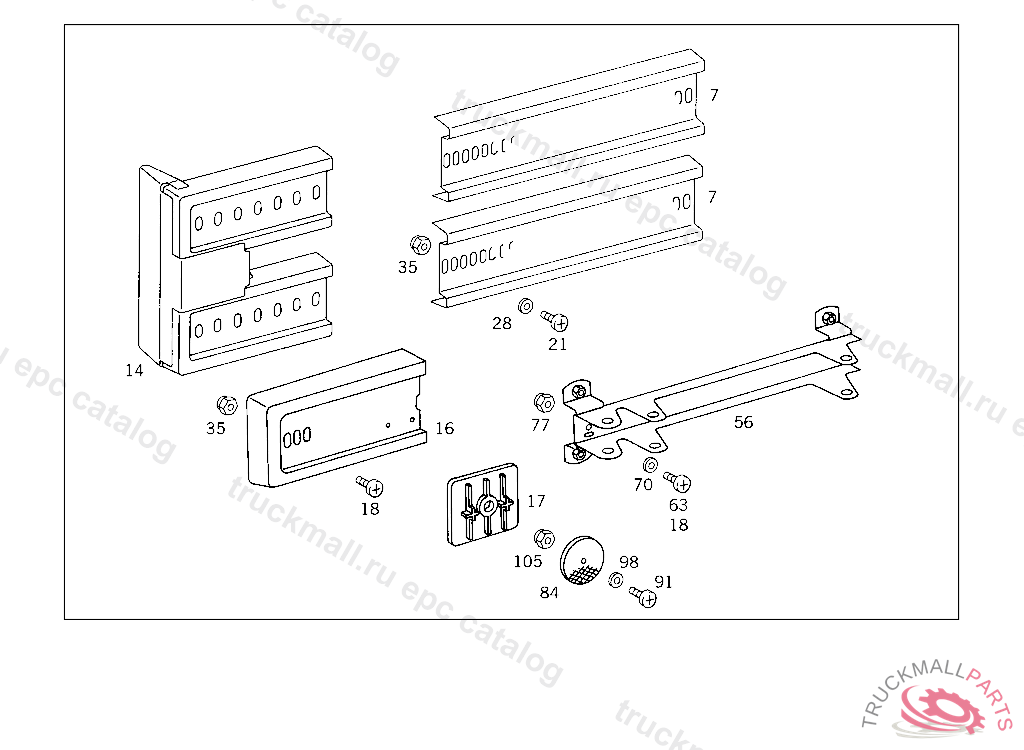

Поз.
Артикул
Описание
7
PROTECTIVE RAIL UNDERRUN PROTECTION,LEFT 4590 MM, TO BE ADAPTED DURING ASSEMBLY
14
BUMPERETTE
14
BUMPERETTE
14
BUMPERETTE ,5 942981
14
BUMPERETTE ,5 942981
14
BUMPERETTE
14
BUMPERETTE
14
BUMPERETTE RAIL
14
BUMPERETTE RAIL
16
CAP LEFT AND RIGHT,FRONT AND REAR
16
CAP LEFT AND RIGHT,FRONT AND REAR
16
CAP FRONT,5 942982
16
CAP FRONT,5 942982
16
CAP LEFT AND RIGHT,FRONT AND REAR
16
CAP LEFT AND RIGHT,FRONT AND REAR
16
CAP LEFT AND RIGHT,FRONT AND REAR
17
SCREW COVERING TO RAIL
17
SCREW COVERING TO RAIL
17
STOP ,K 015919
17
STOP ,K 015919
17
STOP ,K 015919
17
STOP ,K 015919
18
SCREW STOP TO SUPPORT
18
SCREW STOP TO SUPPORT
18
SCREW STOP TO SUPPORT
21
SCREW COVERING TO RAIL
28
WASHER , Replaced By: N000125008443
28
WASHER EXHAUST MUFFLER TO STRAP
28
WASHER EXHAUST MUFFLER TO STRAP
35
NUT COVERING TO RAIL
35
NUT COVERING TO RAIL
56
SUPPORT , Replaced By: A6735202333
56
SUPPORT ,5 942981
56
SUPPORT ,5 942981
56
SUPPORT ,5 942981
56
SUPPORT ,5 942981
56
SUPPORT ,5 942981
56
SUPPORT , Replaced By: A6735202233
56
SUPPORT ,K 015918
56
SUPPORT ,K 015918
56
SUPPORT ,K 015918
56
SUPPORT ,K 015918
56
SUPPORT ,K 015918
56
SUPPORT ,K 218236
56
SUPPORT ,K 218236
56
SUPPORT ,K 218236
56
SUPPORT ,K 218236
56
SUPPORT ,K 218236
56
SUPPORT , Replaced By: A6735202133
56
SUPPORT , Replaced By: A6735202033
56
SUPPORT ,K 015919
56
SUPPORT ,K 015919
56
SUPPORT ,K 015919
56
SUPPORT ,K 015919
56
SUPPORT ,K 015919
56
SUPPORT ,K 015919
56
SUPPORT ,K 015919
63
SCREW BRACKET TO CLAMP,K 015918
63
SCREW BRACKET TO CLAMP,K 015918
70
WASHER EXHAUST MUFFLER TO STRAP
70
WASHER , Replaced By: N000125008443
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
77
NUT , Replaced By: N913004008001
84
REFLECTOR FENDER
84
REFLECTOR AMBER
84
REFLECTOR REAR LEFT AND RIGHT
91
SCREW HOOK TO BRACKET
98
WASHER , Replaced By: N009021005205
98
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
105
NUT TWO-WAY VALVE TO BRACKET
999
BRACKET UNDERRUN PROTECTION
999
BRACKET UNDERRUN PROTECTION
