Поз.
Артикул
Описание

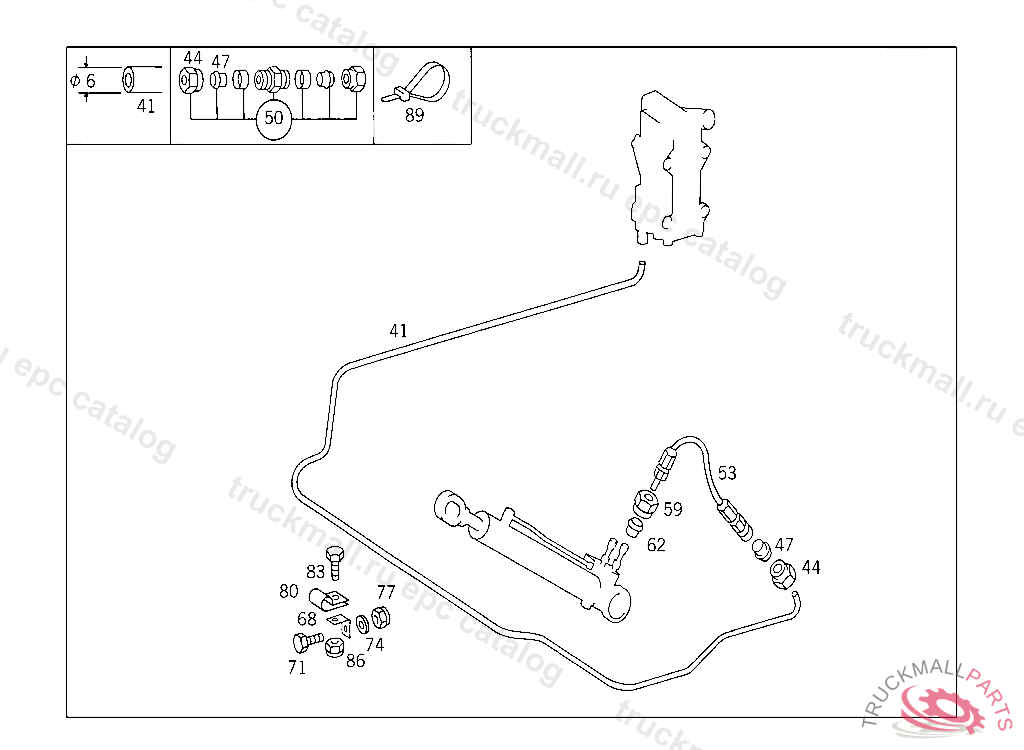

41
PIPE LINE , Replaced By: A0004290001, +002N003861006007, +002N915017006100
41
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
44
UNION NUT
47
GLAND , Replaced By: A0019901667
47
SEAL CONE
50
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
53
HOSE , Replaced By: A3875530182
53
HOSE FROM HYDRAULIC LINE TO CYLINDER
59
UNION NUT
62
SEAL CONE
62
GLAND , Replaced By: A0019901667
68
BRACKET SENSOR CABLE TO FRONT AXLE
68
BRACKET , Replaced By: A3852670040
71
SCREW , Replaced By: N308676012012
71
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
74
WASHER BRACKET TO FRAME
77
NUT SUPPORT TO SIDE MEMBER
80
CLAMP LINE MOUNTING
83
SCREW COVER PLATE TO COVER PLATE M 6 X 12
83
SCREW , Replaced By: N304017006018
86
NUT PUMP TO BRACKET
86
NUT , Replaced By: N913004006001
89
LOOM TIE LINE MOUNTING
999
LOCK RING
999
SCREW , Replaced By: A0009901310
