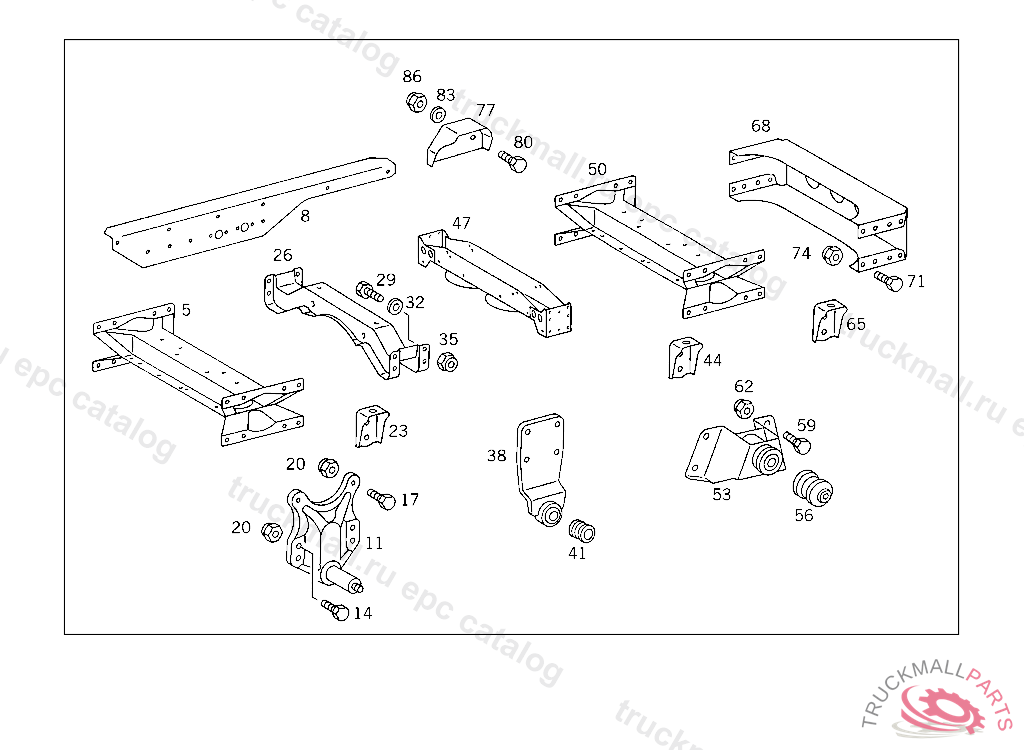

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SPRING FRONT BRACKET NO.4
11
SPRING BRACKET (REAR SPRING BRACKET),FRONT, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
14
SCREWM 14X15X19X36
14
SCREWM 14X15X21X38
17
SCREWM 14X15X17X34
20
NUT , Replaced By: N910113014000
20
NUT STEERING SUPPORT TO FRAME
23
CONSOLE BODY MOUNTING
26
CROSS MEMBER SHOCK ABSORBER
38
CONSOLE
41
BEARING SHACKLE TO FRAME
44
CONSOLE BODY MOUNTING
47
SUPPORT AIR SPRING BELLOWS,TOP NO.6
50
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
53
SPRING BRACKET (REAR SPRING BRACKET),REAR,5 905404
53
SPRING BRACKET (REAR SPRING BRACKET),REAR,5 905404
56
BUSHING SPRING EYE,REAR,5 905404
59
SCREW BRACKET TO SIDE MEMBER
59
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
59
SCREWM 14X15X17X34
59
SCREW SUPPORT TO SIDE MEMBER M 14X45
59
SCREWM 14X15X15X32
62
NUT BRACKET TO SIDE MEMBER
62
NUT , Replaced By: N910113014001
65
CONSOLE BODY MOUNTING
68
CROSS MEMBER (REAR CROSS MEMBER)
71
SCREW MOUNTING TO CONSOLE M 14X35
71
SCREW , Replaced By: N308676014008
74
NUT , Replaced By: N910113014000
74
NUT STEERING SUPPORT TO FRAME
77
CONSOLE BODY MOUNTING
80
SCREW , Replaced By: N304017010002
80
SCREW BRACKET TO SIDE MEMBER
83
WASHER , Replaced By: N000125010532
83
WASHER RADIATOR TO RUBBER MOUNTING
86
NUT STRAP TO BRACKET
86
NUT , Replaced By: N910113010000
