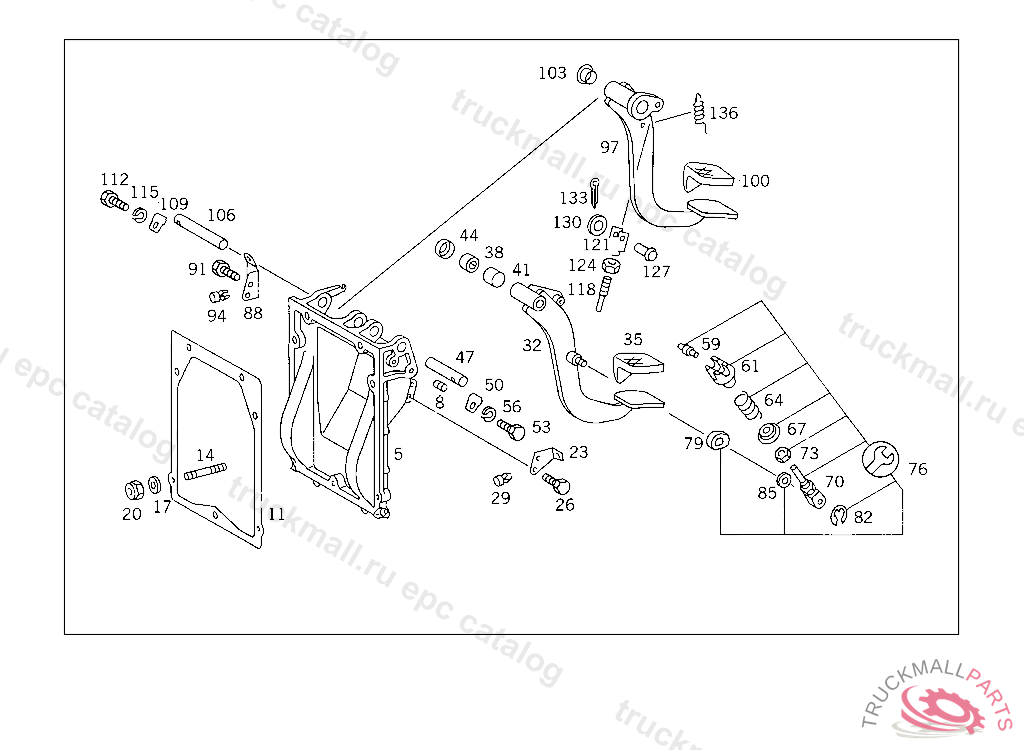

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
THREADED INSERT
11
GASKET BEARING BRACKET TO CAB
11
GASKET , Replaced By: A6732940180
14
STUD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 219888, Replaced By: A6732940270
14
STUD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 219888, Replaced By: A6732940270
14
STUD
17
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
20
NUT , Replaced By: N913004008001
23
STOP CLUTCH PEDAL,5 219889
23
STOP CLUTCH PEDAL,5 219888
26
SCREW , Replaced By: N304017006018
26
SCREW COVER PLATE TO COVER PLATE M 6 X 12
29
STOP , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6732910286
29
STOP CLUTCH PEDAL AND BRAKE PEDAL
32
PEDAL CLUTCH,5 219889
32
PEDAL ,5 219888, Replaced By: A6732900816, +001A6742900093
32
PEDAL ,5 219888, Replaced By: A6732901016, +001A6742900093
32
PEDAL CLUTCH,5 219889
35
PAD BRAKE
38
NEEDLE BEARING CLUTCH PEDAL
38
NEEDLE BEARING CLUTCH PEDAL
41
SPACER TUBE CLUTCH PEDAL
44
WASHER CLUTCH PEDAL TO BEARING BRACKET
47
PIN CLUTCH PEDAL TO BEARING BRACKET
50
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
50
LOCK , Replaced By: A6732920073
53
SCREW , Replaced By: N304017006016
53
SCREW PUMP TO BRACKET
56
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
59
PIN CLUTCH PEDAL RESET
61
SPRING RETAINER CLUTCH PEDAL RESET
64
SPRING CLUTCH PEDAL RESET
67
SPRING RETAINER CLUTCH PEDAL RESET
70
ROD CLUTCH PEDAL RESET,5 219288
73
NUT , Replaced By: N304035010001
73
NUT
76
REPAIR KIT DEAD CENTER SPRING,5 219889
79
STOP CLUTCH PEDAL RESET,5 219889
79
STOP CLUTCH PEDAL RESET,5 219888
82
LOCK PLATE RELEASE LEVER TO SHAFT
82
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
85
WASHER RADIATOR TO RUBBER MOUNTING
85
WASHER , Replaced By: N000125010532
88
STOP BRAKE PEDAL
91
SCREW COVER PLATE TO COVER PLATE M 6 X 12
91
SCREW , Replaced By: N304017006018
94
STOP BRAKE PEDAL
97
PEDAL BRAKE
97
PEDAL BRAKE
100
PAD BRAKE
103
BUSHING , Replaced By: A1242920050
106
PIN BRAKE PEDAL TO BEARING BRACKET
109
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
112
SCREW PUMP TO BRACKET
112
SCREW , Replaced By: N304017006016
115
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
118
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
121
YOKE OPERATING ROD,K 202311
124
NUT , Replaced By: N304035008001
124
NUT
127
PIN ROD TO BRAKE PEDAL
130
WASHER BRACKET TO CROSS MEMBER
133
COTTER PIN LEVER TO ROD
133
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
136
SPRING BRAKE PEDAL RELEASE SPRING
999
ROD CLUTCH PEDAL RESET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
