Поз.
Артикул
Описание

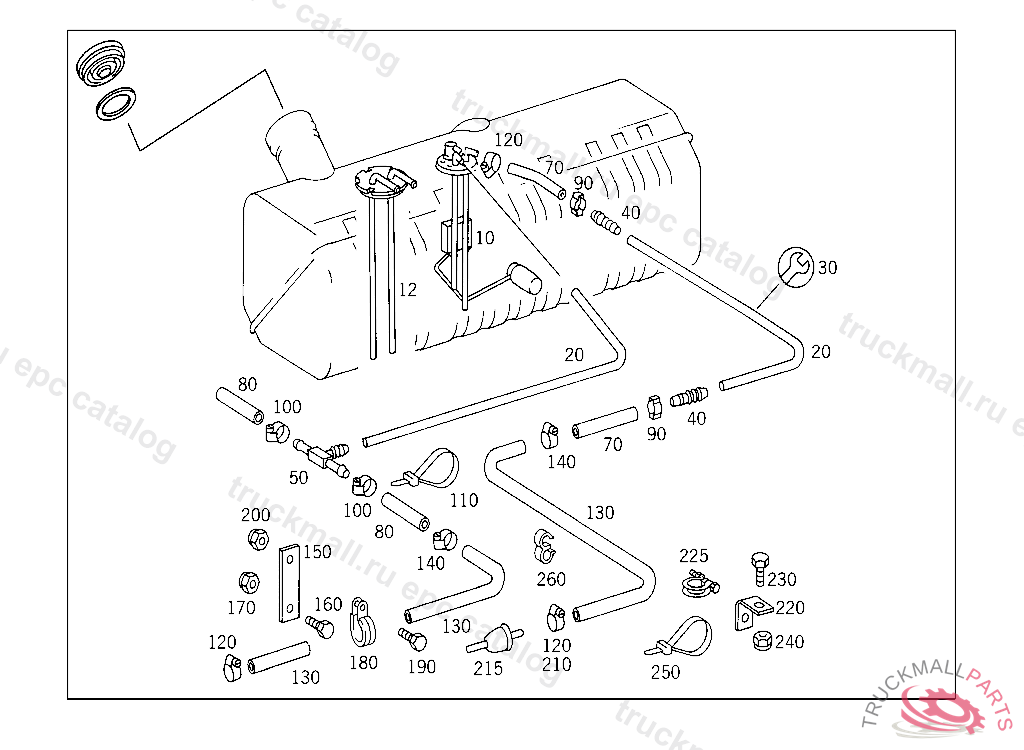

10
SENDER UNIT FUEL GAUGE
10
SENDER UNIT FUEL GAUGE
10
SENDER UNIT FUEL GAUGE
10
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
10
SENDER UNIT FUEL GAUGE
12
COVERING FUEL TANK
12
COVERING FUEL TANK
20
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
FITTING , Replaced By: A0029905971
30
FITTING (PARTS KIT),LINE RUPTURE
40
CONNECTOR FEED & RETURN
50
ELBOW FITTING FUEL TANK BREATHING
50
ELBOW FITTING FUEL TANK BREATHING
50
ELBOW FITTING FUEL TANK BREATHING
50
T-FITTING BREATHER LINE,K 169122
50
T-FITTING BREATHER LINE,K 169122
50
T-FITTING BREATHER LINE,K 169122
50
T-FITTING RETURN LINE
70
HOSE LEAK LINE, ORDER BY THE METER
80
HOSE LEAK LINE
80
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
90
LOOM TIE LINE MOUNTING
90
LOOM TIE LINE MOUNTING
100
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
100
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
100
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
100
CLAMP LINE CONNECTION
100
CLAMP , Replaced By: N000000000665
100
CLAMP , Replaced By: N000000000665
110
LOOM TIE LINE MOUNTING 280 MM
110
CLIP LEAK LINE
110
CLIP LEAK LINE
120
CLAMP LINE MOUNTING
130
HOSE LEAK LINE, ORDER BY THE METER
140
CLAMP LINE MOUNTING
150
BRACKET , Replaced By: A6173020440
150
BRACKET FEED LINE AND RETURN LINE,5 346007
160
SCREW EXHAUST PIPE TO BRACKET
160
SCREW , Replaced By: A4609900601
170
NUT , Replaced By: N913004008001
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
180
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
190
SCREW PUMP TO BRACKET M 6X20
200
NUT , Replaced By: N913004006001
200
NUT PUMP TO BRACKET
210
CLAMP LINE MOUNTING
215
FILTER FUEL
215
FILTER FUEL
220
ANGLE LINE MOUNTING
225
HOSE CLAMP EXHAUST PIPE TO HEATER UNIT
225
HOSE CLAMP EXHAUST PIPE TO HEATER UNIT
230
SCREW PUMP TO BRACKET M 6X20
240
NUT PUMP TO BRACKET
240
NUT , Replaced By: N913004006001
250
LOOM TIE LINE MOUNTING 280 MM
260
CLAMP PLASTIC LINE ON CONTROL LINE
260
CLAMP PLASTIC LINE ON CONTROL LINE
999
FILLER CAP
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
SENDER UNIT , Replaced By: A0085424017
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
BOOT CHECK VALVE,K 169122
999
VALVE BREATHER LINE,K 169122
999
VALVE BREATHER LINE,K 169122
999
SEAL RING
999
RISING PIPE FUEL TANK
999
SENDER UNIT FUEL GAUGE,K 169122
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW PLUG , Replaced By: N007604014110
999
SCREW PLUG FUEL TANK
999
BANJO UNION HEATING CONNECTION,K 169122
