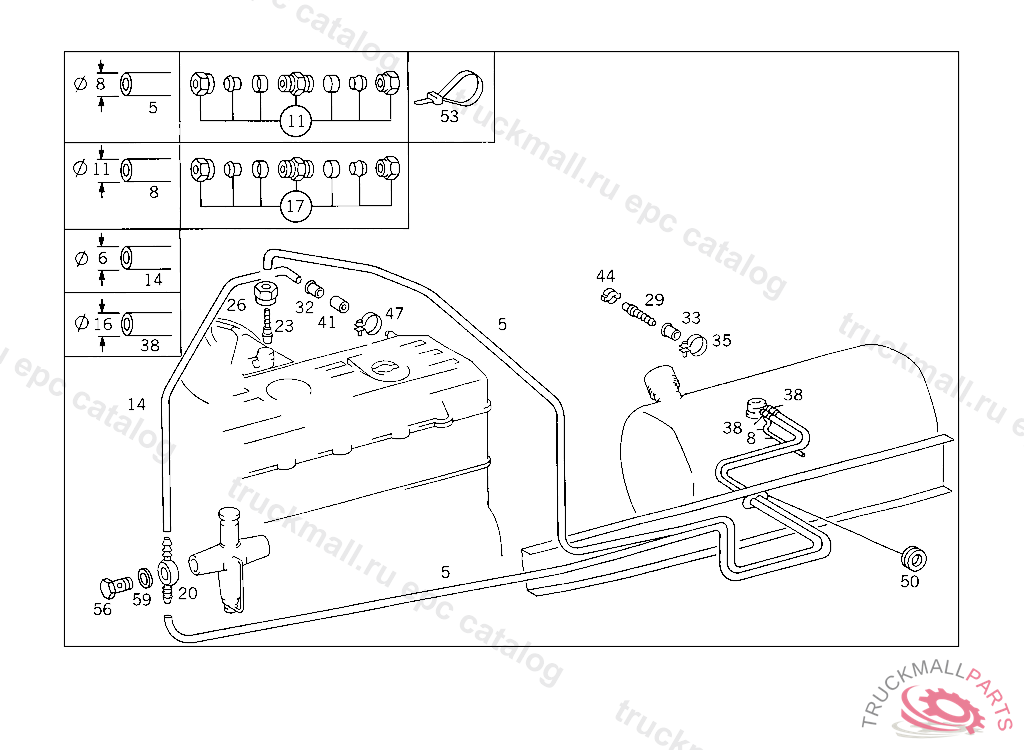

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
11
FITTING , Replaced By: A0029905971
11
FITTING (PARTS KIT),LINE RUPTURE
14
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
14
PLASTIC PIPE RISING PIPE 4X6 MM
17
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
20
BANJO UNION FEED LINE
23
FITTING RETURN LINE
26
UNION NUT RETURN
29
INTERMEDIATE PIECE FEED LINE AND RETURN LINE,K 169122
32
SLEEVE LEAK LINE
33
SLEEVE LINE CONNECTION
35
LOOM TIE , Replaced By: N916002012100
35
CLAMP LINE CONNECTION
38
HOSE LEAK LINE
38
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
41
HOSE LEAK LINE, ORDER BY THE METER
44
LOOM TIE , Replaced By: A0019978390
44
LOOM TIE LINE MOUNTING 280 MM
47
CLAMP , Replaced By: N000000000665
47
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
47
CLAMP LINE CONNECTION
47
LOOM TIE VENT VALVE TO FUEL TANK
47
CLAMP LINE MOUNTING
50
GROMMET BATTERY CABLE THRU SIDE MEMBER
50
GROMMET FOR PASSAGE OF LINE
53
LOOM TIE LINE MOUNTING
53
LOOM TIE LINE MOUNTING 280 MM
56
HOLLOW SCREW , Replaced By: N915036010108
56
HOLLOW SCREW FUEL LINE TO FEED PUMP
59
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE AERATION, ORDER BY THE METER
