Поз.
Артикул
Описание
5

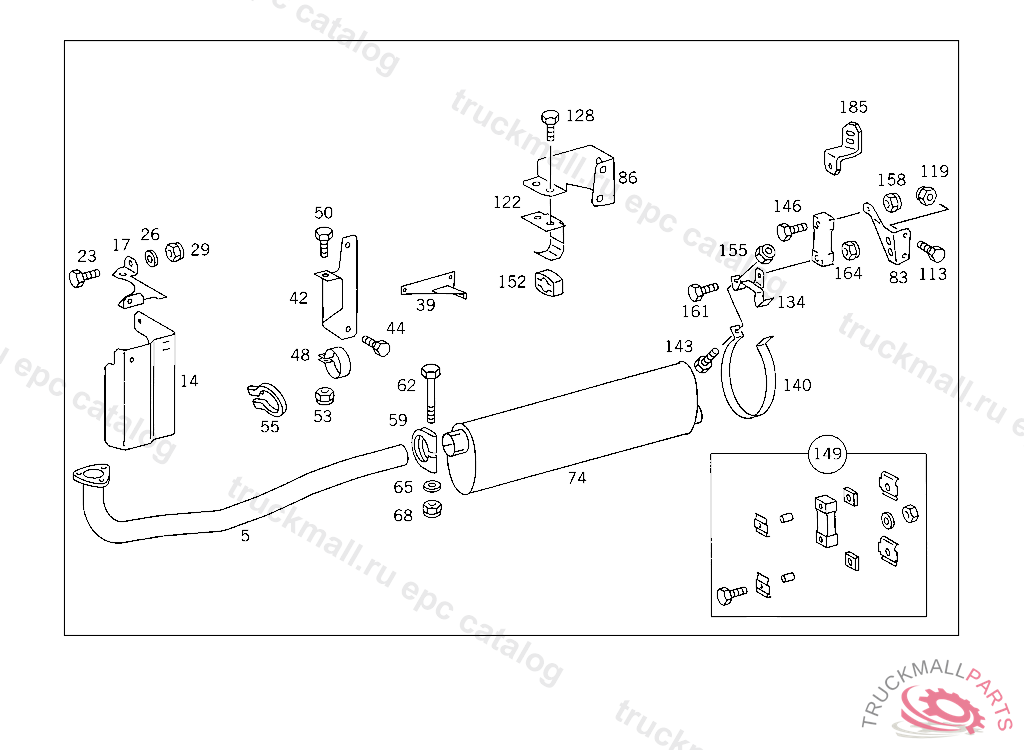

EXHAUST PIPE FRONT,FRONT PART,5 3373435 528482
5
EXHAUST PIPE , Replaced By: A6764905519
5
EXHAUST PIPE FRONT,FRONT PART,K 049384N 822692
14
PROTECTIVE PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640, Replaced By: A6764900730, +001A6764901140, +002A1089900340, +002N000933008147, +002N913004008004
14
PROTECTIVE PLATE , Replaced By: A6764900730
14
PROTECTIVE PLATE FRONT EXHAUST PIPE,5 502998
17
BRACKET , Replaced By: A6764901040
17
BRACKET FRONT EXHAUST PIPE,5 502998
23
SCREW , Replaced By: N304017008021
23
SCREW PIPE CLAMP
26
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
29
NUT , Replaced By: N913004008001
39
BRACKET FRONT EXHAUST PIPE TO BRACKET,5 528482
42
BRACKET FRONT EXHAUST PIPE TO BRACKET
44
SCREW BRACKET TO SIDE MEMBER
48
CLAMP , Replaced By: N071555090502
48
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
50
SCREW , Replaced By: N304017010002
50
SCREW BRACKET TO SIDE MEMBER
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
55
CLAMP BRACKET TO EXHAUST PIPE
59
CLAMP EXHAUST PIPE TO MUFFLER
59
CLAMP EXHAUST PIPE TO MUFFLER
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
65
WASHER , Replaced By: N000125008443
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER EXHAUST MUFFLER TO STRAP
68
NUT , Replaced By: N913004008001
68
NUT , Replaced By: N913004008001
74
EXHAUST MUFFLER , Replaced By: A6764900201
83
BRACKET EXHAUST MUFFLER,5 194472
86
BRACKET EXHAUST MUFFLER,5 1944735 337342
113
SCREW SUPPORT TO CROSS MEMBER M 10X28
119
NUT , Replaced By: N910113010000
119
NUT STRAP TO BRACKET
119
NUT STRAP TO BRACKET
122
SUPPORT REAR EXHAUST MUFFLER
128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
134
BRACKET AT MUFFLER,5 194472
140
BRACKET AT MUFFLER,5 337342
140
BRACKET , Replaced By: A6744914541
140
STRAP EXHAUST MUFFLER TO SIDE MEMBER
143
SCREW , Replaced By: N304017010043
143
SCREW BRACKET TO CONSOLE
146
NUT , Replaced By: N910113010000
146
NUT STRAP TO BRACKET
149
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
152
DAMPING PAD PARTICLE FILTER
155
SCREW VALVE TO BRACKET, Replaced By: N304014008002
155
SCREW VALVE TO BRACKET
158
NUT , Replaced By: N913004008001
161
SCREW VALVE TO BRACKET, Replaced By: N304014008002
161
SCREW VALVE TO BRACKET
164
NUT , Replaced By: A1201420072
164
HEXAGON NUT SCREENING PLATE,5 163561
185
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
999
WASHER HEAT SHIELD TO BRACKET
999
BRACKET HEAT SHIELD
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
BRACKET , Replaced By: A6744904440
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
999
BRACKET ,5 4783245 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744916241
999
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6734901434
999
PROTECTIVE PLATE , NOT USED
999
SCREW COVERING TO SUPPORT
999
SCREW PROTECTIVE PLATE TO CLAMP
