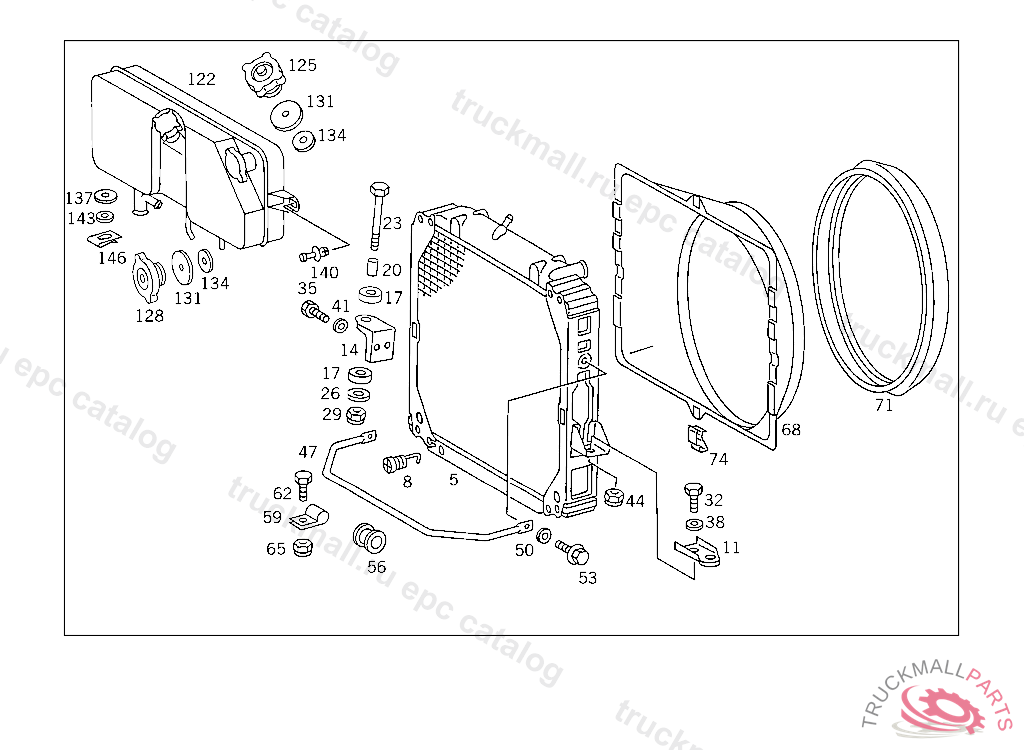

Поз.
Артикул
Описание
5
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 418349, Replaced By: A6765000403
5
RADIATOR ,5 463261, Replaced By: A6775000903, +001A6745011982
5
RADIATOR ,5 527393, Replaced By: A6775001503, +004A6739900032, +004A6739900132
5
RADIATOR ,5 527394, Replaced By: A6775002003
5
RADIATOR WATER
8
SCREW WATER DRAIN
11
SUPPORT RADIATOR,LEFT
14
SUPPORT RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW BRACKET TO BELL HOUSING
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT , Replaced By: N910113010000
29
NUT STRAP TO BRACKET
32
SCREW , Replaced By: N308676012038
32
SCREW BRACKET TO TRANSMISSION
35
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
38
WASHER COVER PLATE TO FRAME
41
WASHER , Replaced By: N000125010532
41
WASHER RADIATOR TO RUBBER MOUNTING
44
NUT SUPPORT TO SIDE MEMBER
47
CLAMP RADIATOR
50
WASHER , Replaced By: N009021008213
50
WASHER BRACKET TO LEFT SIDE MEMBER
53
SCREW CLAMP TO RADIADOR
56
RUBBER MOUNTING BRACKET TO CROSS MEMBER
59
CLAMP , Replaced By: A6739950101
59
CLAMP BRACKET TO CROSS MEMBER
62
SCREW , Replaced By: N304017008021
62
SCREW PIPE CLAMP
65
NUT , Replaced By: N913004008001
68
AIR BAFFLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 937517, Replaced By: A6765050230
68
AIR BAFFLE ,K 053730
71
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 315939, Replaced By: A6765050186
71
BOOT AIR BAFFLE TO 676 505 01 30
74
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
122
TANK EXPANSION TANK
122
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 941451, Replaced By: A6745000049, +001A6745012082, +001A6745012182
125
RADIATOR CAP FILLER NECK
125
RADIATOR CAP , Replaced By: A0005016415
125
RADIATOR CAP FILLER NECK
125
RADIATOR CAP FILLER NECK
128
RADIATOR CAP
131
GASKET O.D., 52 MM
134
GASKET O.D., 37 MM
137
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
140
RIVET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6739900192
140
RIVET COOLANT LINE ON FAN SHROUD
143
WASHER , Replaced By: N000125017016
143
WASHER BRACKET TO FRAME
146
CLIP RESERVOIR TO CAB FRONT PANEL
