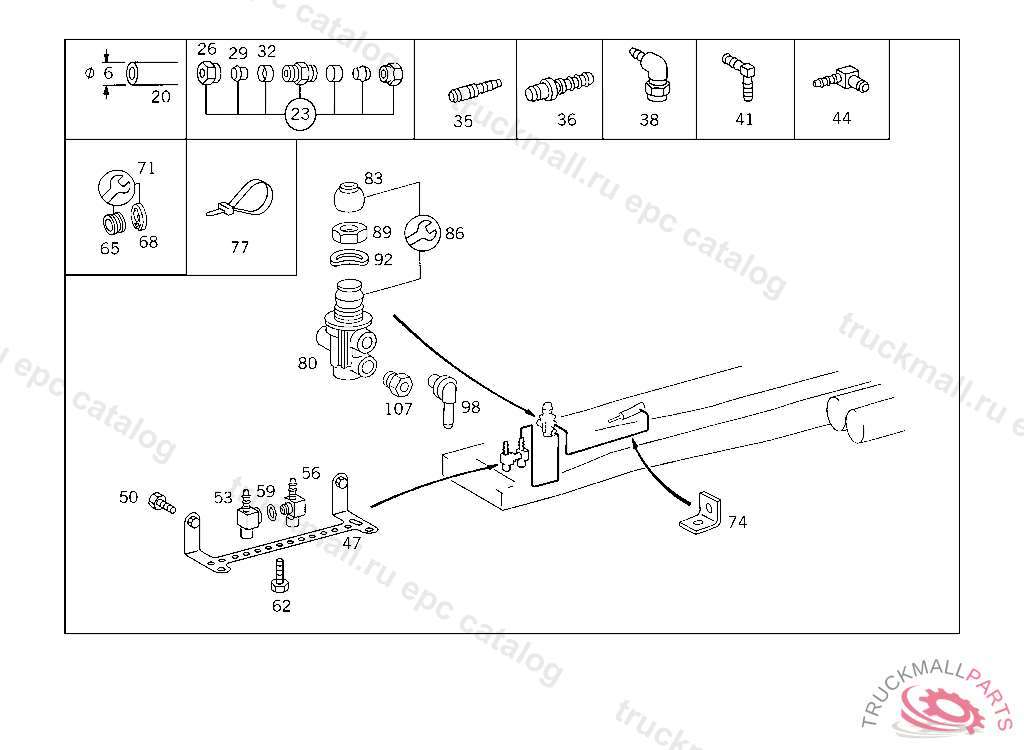

Поз.
Артикул
Описание
20
PLASTIC PIPE RISING PIPE 4X6 MM
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
26
UNION NUT
29
SEAL CONE
29
GLAND , Replaced By: A0019901667
32
SLEEVE LEAK LINE
35
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
35
CONNECTOR , Replaced By: A0029905378
36
CONNECTOR DISTRIBUTOR TO CAB
38
ELBOW FITTING
41
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
41
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
44
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
47
BRACKET DISTRIBUTOR TO CAB
50
SCREW , Replaced By: N304017006034
50
SCREW COVER PLATE TO COVER PLATE M 6 X 10
53
CONNECTOR DISTRIBUTOR TO CAB
56
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
59
SEAL RING
62
SCREW , Replaced By: N304017006034
62
SCREW COVER PLATE TO COVER PLATE M 6 X 10
65
LOCK RING LINE CONNECTION
65
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
65
SEAL RING , Replaced By: A0009940747
68
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
68
LOCK , Replaced By: A0009945448
68
LOCK LINE CONNECTION
71
REPAIR KIT , Replaced By: A0309971748
71
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
71
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
74
BRACKET SENSOR CABLE TO FRONT AXLE
77
LOOM TIE LINE MOUNTING
80
VALVE EXHAUST BRAKE 3/2-WAY VALVE BOSCH
80
VALVE EXHAUST BRAKE 3/2-WAY VALVE WABCO
83
CUP 3/2-WAY VALVE WABCO
86
REPAIR KIT 3/2-WAY VALVE WABCO
86
REPAIR KIT 3/2-WAY VALVE BOSCH
89
NUT SUCTION LINE TO OIL PUMP
92
SPRING WASHER AT CAB FLOOR
98
PIPE SOCKET 3/2-WAY VALVE,CONNECTION: "30"
107
SCREW. UNION SCREW LINE CONNECTION
107
SCREW. UNION SCREW , Replaced By: A0009973734
999
FITTING FROM PUMP TO CYLINDER
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
