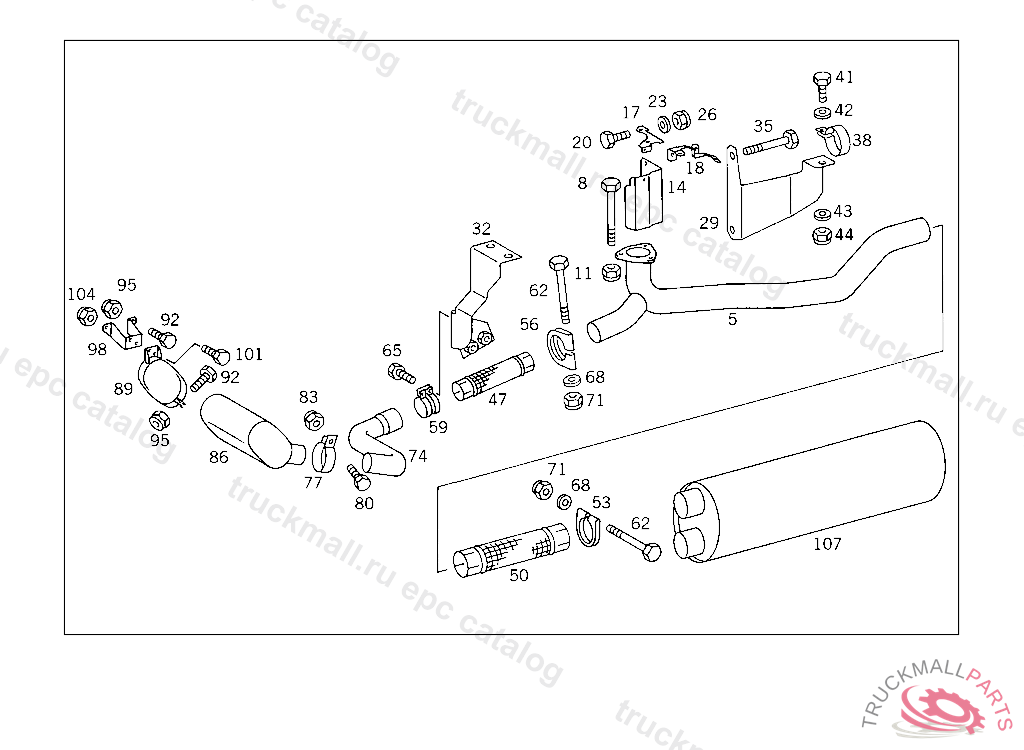

Поз.
Артикул
Описание
5
EXHAUST PIPE RESONATOR,K 049384
5
EXHAUST PIPE RESONATOR,K 049383
8
SCREW LEFT AND RIGHT CONSOLES TO CAB
8
SCREW , Replaced By: N308676012015
11
NUT , Replaced By: N910113012006
11
NUT THROTTLE HOUSING AND BRACKET TO FRONT EXHAUST PIPE
14
PROTECTIVE PLATE FRONT EXHAUST PIPE,5 502998
17
BRACKET HEAT SHIELD,5 502998
20
SCREW , Replaced By: N304017008021
20
SCREW PIPE CLAMP
23
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
26
NUT , Replaced By: N913004008001
29
BRACKET FRONT EXHAUST PIPE,5 528483
32
BRACKET EXHAUST LINE FLEXIBLE METAL TUBE
35
SCREW BRACKET TO FRAME SIDE MEMBER
38
CLAMP , Replaced By: N071555090502
38
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
41
SCREW BRACKET TO SIDE MEMBER
41
SCREW , Replaced By: N304017010002
44
NUT , Replaced By: N910113010000
44
NUT STRAP TO BRACKET
47
FLEXIBLE METAL TUBE
50
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
53
CLAMP EXHAUST PIPE TO MUFFLER
56
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
59
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
62
SCREW , Replaced By: N304017008067
62
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
65
SCREW BRACKET TO SIDE MEMBER
65
SCREW , Replaced By: N304017010002
68
WASHER EXHAUST MUFFLER TO STRAP
68
WASHER EXHAUST MUFFLER TO STRAP
68
WASHER , Replaced By: N000125008443
71
NUT , Replaced By: N913004008001
71
NUT , Replaced By: N913004008001
74
EXHAUST PIPE RESONATOR
77
CLAMP FROM FLEXIBLE METAL TUBE TO RESONATOR
80
SCREW , Replaced By: N304017008034
80
SCREW BRACKET TO CROSS CONNECTION STRUT
83
NUT , Replaced By: N913004008001
86
RESONATOR
89
CLAMP RESONATOR
92
SCREW , Replaced By: N304017010002
92
SCREW BRACKET TO SIDE MEMBER
92
SCREW BRACKET TO SIDE MEMBER
95
NUT , Replaced By: N910113010000
95
NUT STRAP TO BRACKET
95
NUT STRAP TO BRACKET
98
BRACKET RESONATOR
101
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
104
NUT , Replaced By: N910113010000
104
NUT STRAP TO BRACKET
107
EXHAUST MUFFLER
999
SCREW PROTECTIVE PLATE TO CLAMP
999
SCREW COVERING TO SUPPORT
999
PROTECTIVE PLATE , NOT USED
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
WASHER HEAT SHIELD TO BRACKET
