Поз.
Артикул
Описание

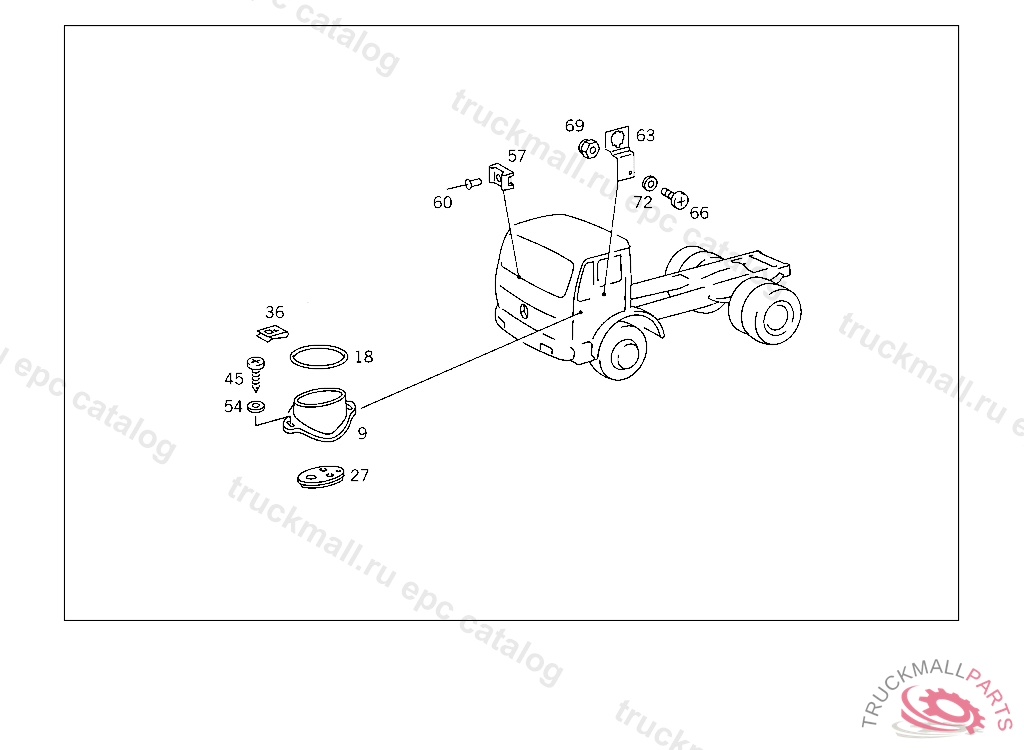

9
BRACKET CABLE HARNESS MOUNTING
18
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
27
GASKET BRACKET
36
LOCK ELECTRIC CABLE THRU CAB FLOOR
45
SHEET METAL SCREW ELECTRIC CABLE THRU CAB FLOOR
45
TAPPING SCREW BRACKET TO CAB FLOOR
54
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
54
WASHER , Replaced By: N009021005205
57
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
60
RIVET BRACKET TO CAB
63
BRACKET TIME-LAG RELAY
66
SCREW BRACKET MOUNTING
66
SCREW CLAMP MOUNTING M 6X16
66
SCREW , Replaced By: N000000001146
69
NUT , Replaced By: N913004006001
69
NUT PUMP TO BRACKET
72
WASHER COMPRESSED AIR LINE TO BRACKET
72
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
