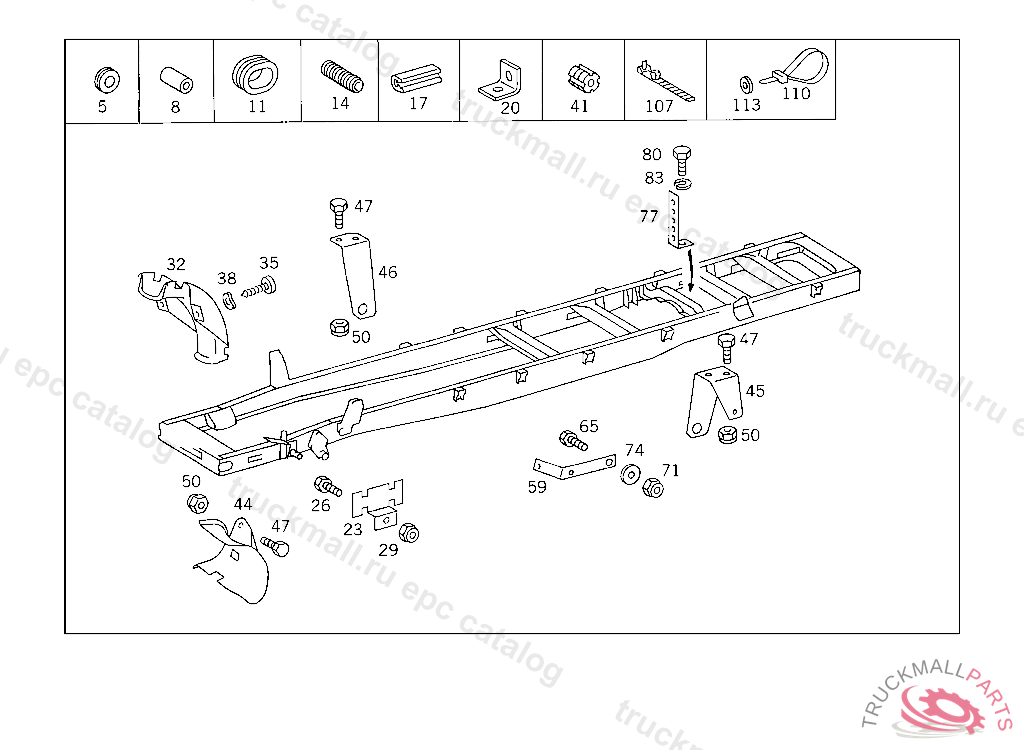

Поз.
Артикул
Описание
5
GROMMET CABLE HARNESS THRU SIDE MEMBER
8
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
11
GROMMET FOR PASSAGE OF LINE
11
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
14
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
17
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
17
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
23
BRACKET BREATHER LINE TO SIDE MEMBER
26
SCREW BRACKET TO CROSS CONNECTION STRUT
26
SCREW , Replaced By: N304017008034
29
NUT , Replaced By: N913004008001
29
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
32
BRACKET COMPRESSED AIR LINE TO CAB
35
SHEET METAL SCREW BRACKET TO CAB
38
SPRING WASHER LICENSE PLATE TO BRACKET
41
BRACKET LINE MOUNTING
44
BRACKET LEFT
44
BRACKET , Replaced By: A6735402673
44
BRACKET CABLE HARNESS
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
50
NUT STRAP TO BRACKET
50
NUT , Replaced By: N910113010000
59
BRACKET LINE MOUNTING
65
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
65
SCREW , Replaced By: N308676012026
71
NUT SUPPORT TO SIDE MEMBER
74
WASHER BRACKET TO FRAME
77
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
77
BRACKET , Replaced By: A3604292940
77
BRACKET , Replaced By: A3604292440
80
SCREW , Replaced By: N304017008039
80
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
107
LOOM TIE , Replaced By: A1149970590
107
LOOM TIE
110
LOOM TIE LINE MOUNTING 280 MM
110
LOOM TIE LINE MOUNTING
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
