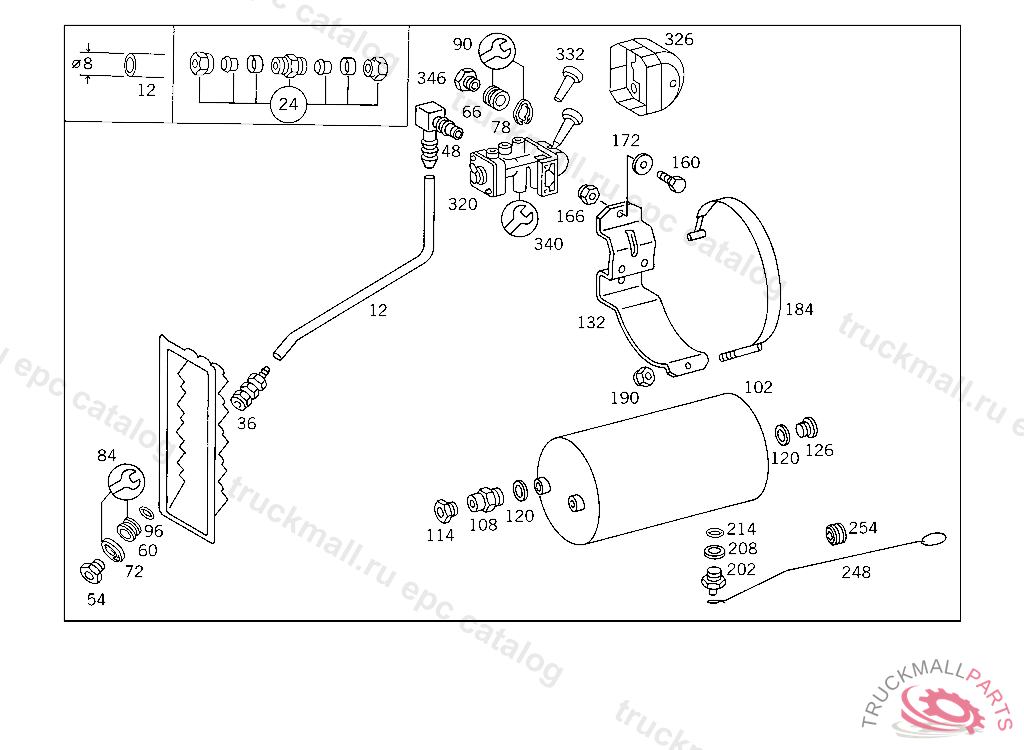

Поз.
Артикул
Описание
12
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
FITTING (PARTS KIT),LINE RUPTURE
24
FITTING , Replaced By: A0029905971
36
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
48
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
48
ELBOW FITTING , Replaced By: A0049905371
48
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
54
SCREW. UNION SCREW LINE CONNECTION
54
SCREW. UNION SCREW , Replaced By: A0009973734
60
SEAL RING , Replaced By: A0009940747
60
LOCK RING LINE CONNECTION
66
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
72
LOCK , Replaced By: A0009945448
72
LOCK LINE CONNECTION
78
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
84
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
84
REPAIR KIT , Replaced By: A0309971748
90
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
96
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
102
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
102
RESERVOIR10L,206 MM,8.5 BAR
108
FITTING LINE CONNECTION
114
SCREW. UNION SCREW LINE CONNECTION
120
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
126
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
126
SCREW PLUG , Replaced By: N000908022011
132
BRACKET CLUTCH BOOSTER AIR RESERVOIR
160
SCREW BRACKET TO LEFT SIDE MEMBER
166
NUT SUPPORT TO SIDE MEMBER
172
WASHER BRACKET TO FRAME
184
STRAP AIR RESERVOIR TO BRACKET
190
NUT , Replaced By: N910113010000
190
NUT STRAP TO BRACKET
202
VALVE DRAIN, Replaced By: A0004322107
202
VALVE DRAIN, Replaced By: A0004322407
202
VALVE. DRAIN VALVE DRAIN
208
THRUST RING CHECK VALVE TO AIR RESERVOIR
208
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
214
O-RING CHECK VALVE TO AIR RESERVOIR
248
ROD AIR RESERVOIR DRAIN, NOT USED
254
GROMMET CABLE HARNESS THRU SIDE MEMBER
320
VALVE PARKING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
320
VALVE PARKING BRAKE WABCO
320
VALVE PARKING BRAKE BOSCH
320
VALVE PARKING BRAKE WABCO
326
PROTECTIVE CAPTO BOSCH
326
PROTECTIVE CAPTO WABCO
332
HANDLETO 001 430 08 81,BOSCH
332
HANDLETO 002 430 29 81,WABCO
332
HANDLETO 000 430 85 81,WABCO,004 0
332
HANDLE , Replaced By: A0009972877
340
REPAIR KIT , Replaced By: A0034303281
340
REPAIR KITTO WABCO
340
REPAIR KIT HAND BRAKE LEVER TO WABCO
340
REPAIR KIT PARKING BRAKE TO 002 430 42 81/43 81,BOSCH
346
SCREW. UNION SCREW , Replaced By: A0009973734
346
SCREW. UNION SCREW LINE CONNECTION
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW VALVE TO BRACKET M 8X55
999
SCREW PIPE CLAMP
999
SCREW , Replaced By: N304014008001
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
999
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
999
SCREW , Replaced By: N308676012012
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017010002
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008043
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
BRACKET AIR RESERVOIR,5 593023
999
BRACKET AIR RESERVOIR
999
BRACKET AIR RESERVOIR DRAIN,5 936365812730
999
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
999
CLIP AIR RESERVOIR DRAIN,5 593023
999
CABLE AIR RESERVOIR DRAIN,5 593023
999
BRACKET MANUAL DRAIN
999
BRACKET MANUAL DRAIN
999
BUSHING AIR RESERVOIR DRAIN,5 593023
999
BRACKET AT RIGHT SIDE MEMBER,5 593023
999
WIRE CABLE AIR RESERVOIR DRAIN,5 5930225 318121
999
BRACKET AIR RESERVOIR TO CROSS MEMBER
999
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
999
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
999
ROPE FENDER FLAP
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET , Replaced By: A3853530440
999
HOSE , Replaced By: A0009872827
999
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
999
FITTING , Replaced By: A0029906171
999
VALVE PRESSURE LIMITER
999
FITTING (PARTS KIT),LINE RUPTURE
999
VALVE (PARKING BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (PARKING BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR HOSE WIDTH, / I.D., 6 MM
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
REPAIR KIT PRESSURE LIMIT VALVE
999
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
999
ADAPTER FITTING AT BRAKE LINE COUPLING
999
VALVE TAPPET22X4 MM,BOSCH
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
