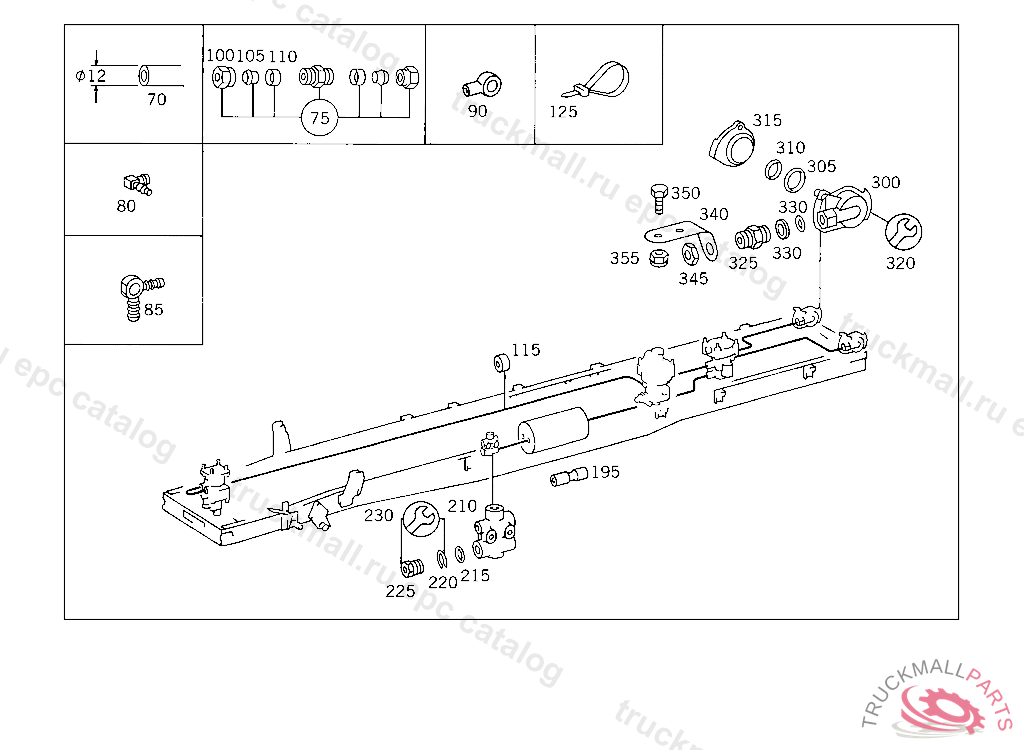

Поз.
Артикул
Описание
70
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
70
HOSE , Replaced By: A0009872827
75
FITTING , Replaced By: A0029906171
75
FITTING (PARTS KIT),LINE RUPTURE
80
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
85
BANJO UNION RETARDER,CONNECTION: "10"
90
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
100
UNION NUT LINE CONNECTION, Replaced By: N000000006239
100
UNION NUT LINE CONNECTION
105
SEAL CONE LINE CONNECTION
105
GLAND , Replaced By: A0019901967
110
SLEEVE LINE CONNECTION
115
RUBBER BUFFER LINE MOUNTING
125
LOOM TIE LINE MOUNTING 280 MM
125
LOOM TIE LINE MOUNTING
195
GROMMET CABLE HARNESS THRU SIDE MEMBER
210
DISTRIBUTOR CHECK VALVE
215
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
220
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
225
SCREW. UNION SCREW LINE CONNECTION
230
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
300
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
300
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
300
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
300
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
300
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
300
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
300
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
300
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
300
BRAKE LINE COUPLING , Replaced By: A0004299730
300
BRAKE LINE COUPLING , Replaced By: A0004299630
305
SEAL RING"GRAU"
305
SEAL RING30X2 MM,BOSCH
310
SEAL RING33X2.5 MM,BOSCH
310
SEAL RING22X4 MM,BOSCH
310
SEAL RING25X2 MM,BOSCH
310
VALVE TAPPET22X4 MM,BOSCH
310
SEAL RING , Replaced By: A0049978240, +001A0004290483
315
COVER BRAKE,YELLOW "WABCO"
315
COVER SUPPLY, RED "WABCO"
320
REPAIR KIT BRAKE LINE COUPLING "KNORR"
320
REPAIR KIT BRAKE LINE COUPLING "WABCO"
325
FITTING BRAKE LINE COUPLING TO BRACKET
330
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
340
BRACKET BRAKE LINE COUPLINGS
345
NUT BRACKET TO SIDE MEMBER
350
SCREW END PIECE TO EXHAUST PIPE M 10X25
355
NUT STRAP TO BRACKET
355
NUT , Replaced By: N910113010000
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
WASHER BRACKET TO FRAME
999
BUSHING AIR RESERVOIR DRAIN,5 593023
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
VALVE TAPPETTO 002 430 43 81,BOSCH
