Поз.
Артикул
Описание
5

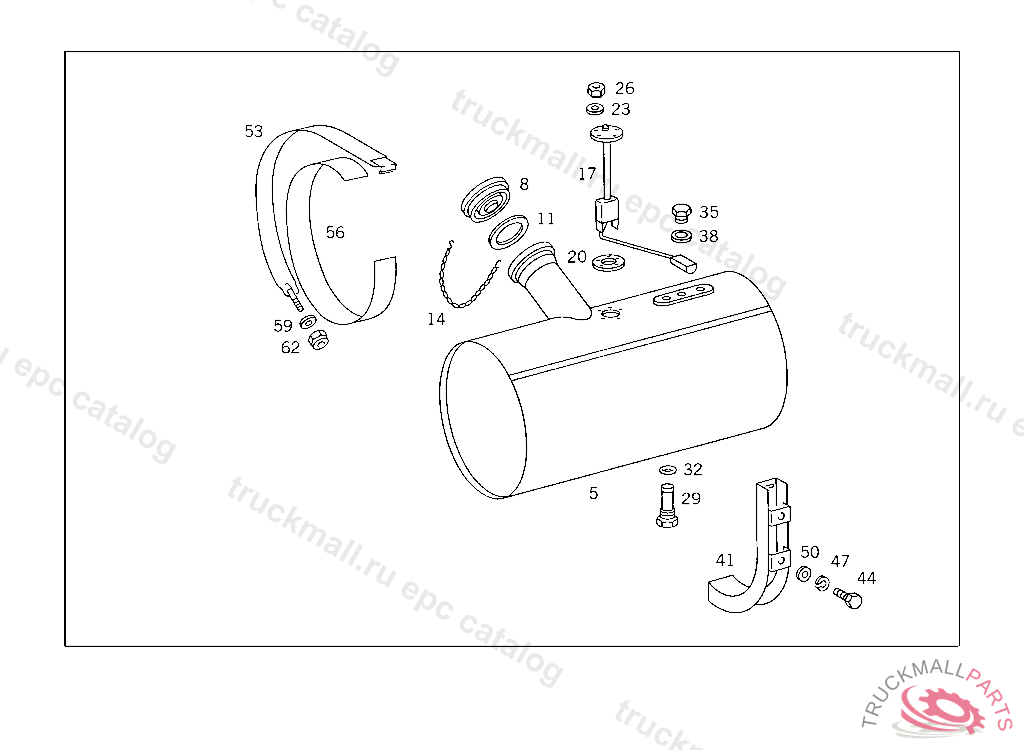

FUEL TANK LESS SENDER UNIT
8
FILLER CAP
11
SEAL RING
14
CHAIN FILLER CAP
17
SENDER UNIT , FROM CHASSIS A 002288
20
GASKET SENDER UNIT AND COVER TO FUEL TANK
23
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
26
NUT TACHOGRAPH TO BRACKET
29
FUEL STRAINER AT TANK
32
SEAL RING FUEL STRAINER SCREEN
35
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
38
SEAL RING AT TANK
41
SUPPORT
44
SCREW BRACKET TO SIDE MEMBER
44
SCREW , Replaced By: N308676014020
47
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
53
STRAP , Replaced By: A3224700140
56
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
59
WASHER
62
NUT , Replaced By: N910113012003
999
NUT MODULE TO HOUSING
999
RISING PIPE
999
FITTING
