Главная
›
Mercedes
›
TRUCK
›
L 1217
›
685.121
›
30 CONTROL
›
060 ACCELERATOR PEDAL CONTROL

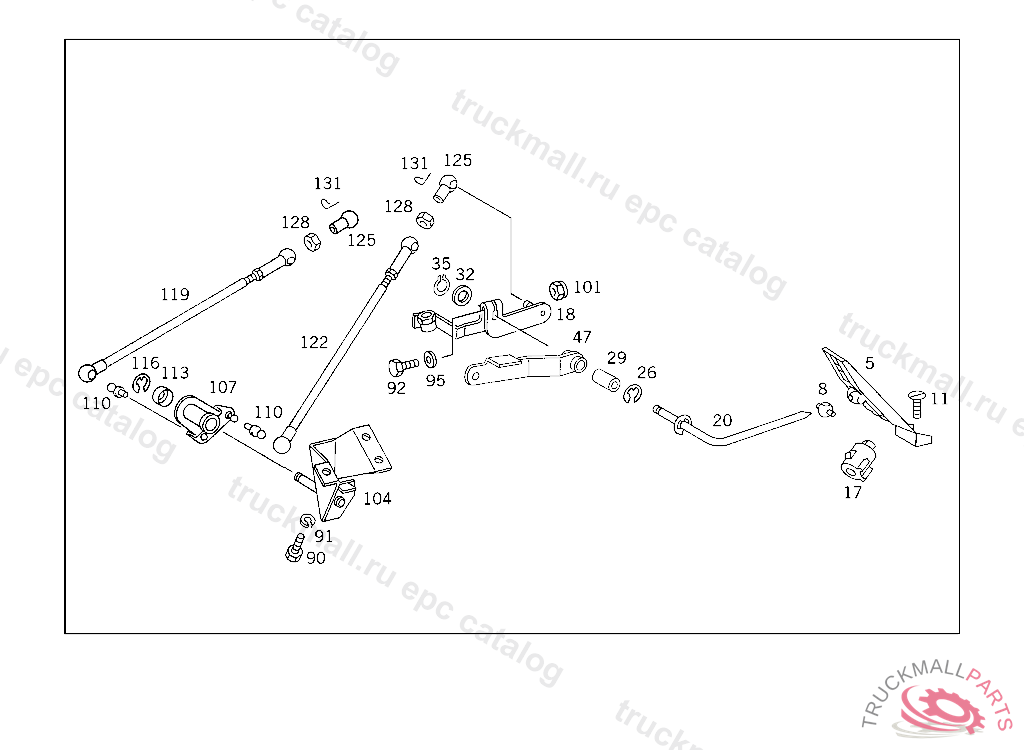

Mercedes A3093010022 - ШАРНИР
L 1217 685.121
30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
Поз.
Артикул
Описание
5
A6733000004
ACCELERATOR PEDAL
8
A3093010022
JOINT
11
N000963006010
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
17
A1263010141
STOP FULL THROTTLE
18
A3763007425
LEVER (CONTROL LEVER)
20
A3763007325
LEVER (PEDAL LEVER)
26
N006799009002
LOCK PLATE
29
A3863017050
BUSHING ,B 892893
32
N000125010517
WASHER GROUND CABLE
35
N900055010403
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
47
A3763007117
LEVER (CONTROL LEVER)
90
N000933008268
SCREW SWITCH TO BRACKET 8X16
91
N912004008100
LOCK WASHER RAIL TO BATTERY SUPPORT
92
N000931006197
SCREW BRACKET TO FRAME
95
N000125006420
WASHER PLUG SOCKET TO BRACKET
101
N913004006001
NUT PUMP TO BRACKET
104
A3843007240
BRACKET REVERSING LEVER
107
A3763007128
LEVER
110
N071803010205
BALL PIVOT INTERMEDIATE LEVER
113
A4073015088
COVERING
116
N006799009002
LOCK PLATE
119
A3863008115
ROD265 MM
122
A3863007315
ROD305 MM
125
A0009912422
BALL SOCKET PULL ROD TO LEVER
128
N000934006006
NUT
131
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
