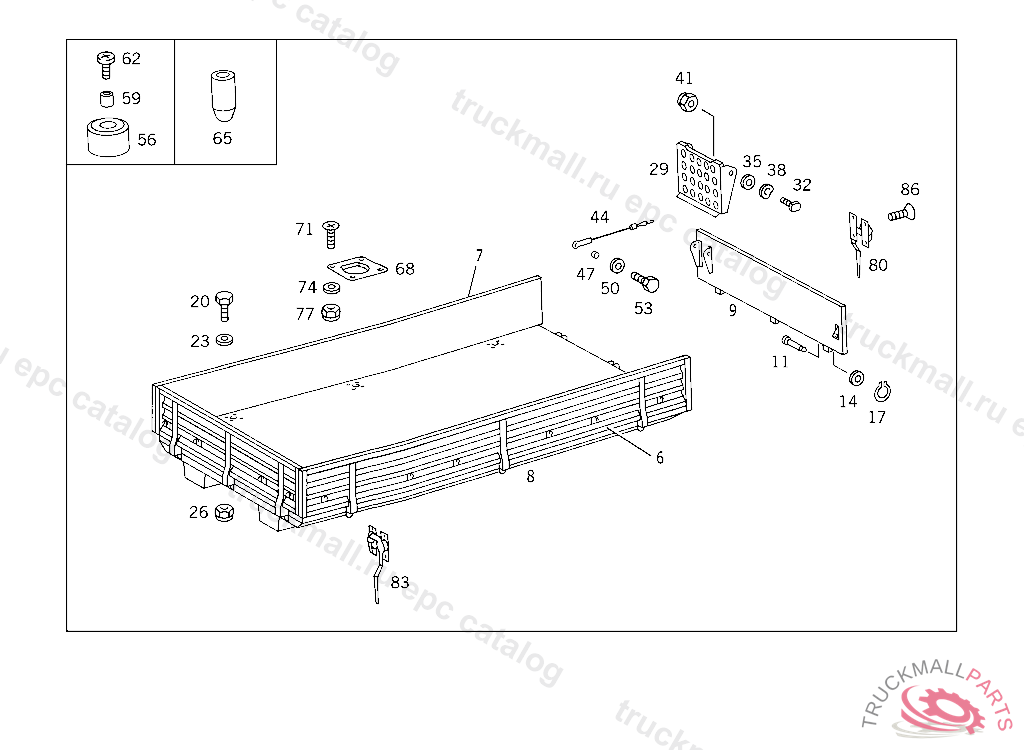

Поз.
Артикул
Описание
6
SIDE PANEL LEFT
7
SIDE PANEL RIGHT
8
PLATFORM , Replaced By: A6906007803
8
PLATFORM LESS REAR PANEL
9
REAR PANEL , TO BE PROCURED FROM MBA ONLY
11
PIN
14
WASHER , Replaced By: N000125010532
17
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
20
HEXAGON HEAD BOLT BRACKET TO BRACKET
23
WASHER STRUT TO CONSOLE
26
NUT CROSS MEMBER TO SIDE MEMBERS
29
STEP , TO BE PROCURED FROM MBA ONLY
32
BOLT. SCREW
35
WASHER , Replaced By: N000125008443
38
SPRING WASHER , Replaced By: N000137008212
41
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
RETAINING ROPE , Replaced By: A6909987175
44
RESTRAINT CABLE. RETAINING ROPE
47
SPACER TUBE , TO BE PROCURED FROM MBA ONLY NO LONGER AVAILABLE
50
WASHER , Replaced By: N000125008443
53
SCREW BRACKET TO CROSS CONNECTION STRUT
56
RUBBER BUMPER. RUBBER BUFFER
59
SPACER TUBE , TO BE PROCURED FROM MBA ONLY NO LONGER AVAILABLE
62
SCREW DELIVERY AND SUCTION LINES TO BRACKET
65
RUBBER STOP. RUBBER BUFFER
68
GRIP RAIL ,A 534983
68
CONNECTION , TO BE PROCURED FROM MBA ONLY
71
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
74
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
77
NUT HEATING PIPE TO BRACKET
80
LOCKING HOOK REAR LEFT, TO BE PROCURED FROM MBA ONLY
80
LOCKING HOOK RIGHT
80
LOCKING HOOK , Replaced By: A6909887597
80
LOCKING HOOK , Replaced By: A6909887697
83
LOCKING HOOK , Replaced By: A6909887797
83
LOCKING HOOK , Replaced By: A6909887897
83
LOCKING HOOK FRONT LEFT, TO BE PROCURED FROM MBA ONLY
83
LOCKING HOOK RIGHT
86
SCREW ACCELERATOR PEDAL TO CAB M 6X20
999
PLATFORM
