Mercedes N000125008443 - ШАЙБА
412 D 690.412

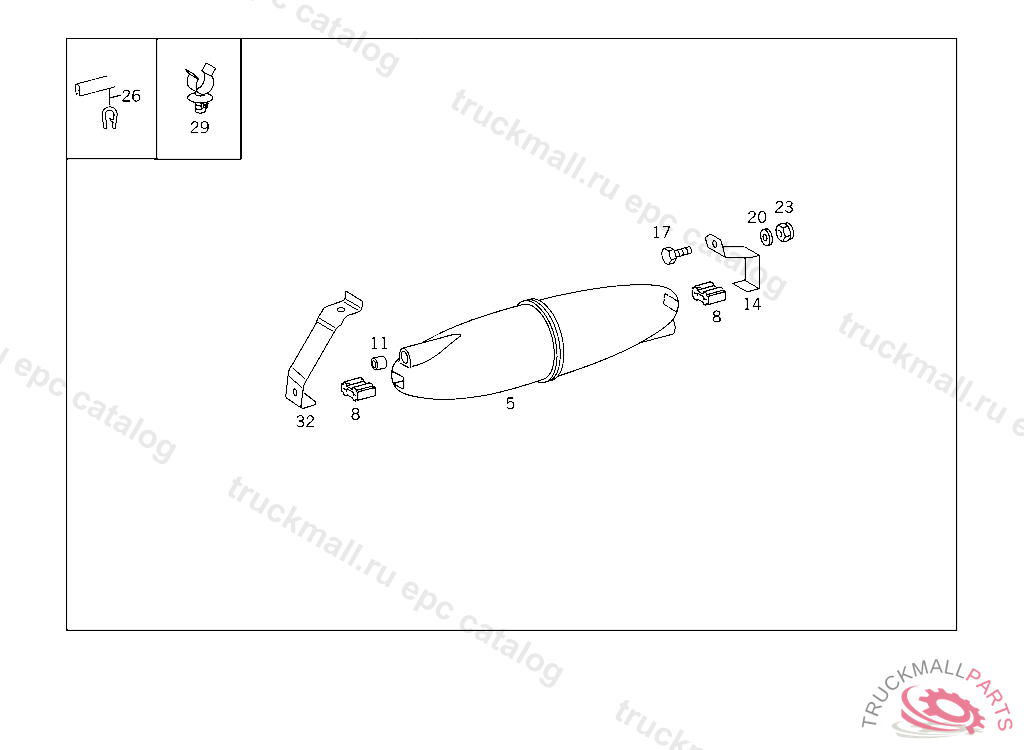

42 BRAKES - 522 VACUUM TANK AND LINES IL. 1
Поз.
Артикул
Описание
5
A6014310002
RESERVOIR VACUUM TANK 5 L
8
A6019870139
RUBBER BUFFER VACUUM TANK TO BRACKET
11
A6014350080
GASKET AT AIR RESERVOIR
14
A9014320340
BRACKET REAR
17
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
23
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
A0019875572
EDGE GUARD SECTION AT TANK 1000 MM, ORDER BY THE METER5 3506525 495522
29
A0109880578
CLIP AT BRACKET
32
A9014320440
BRACKET FRONT
