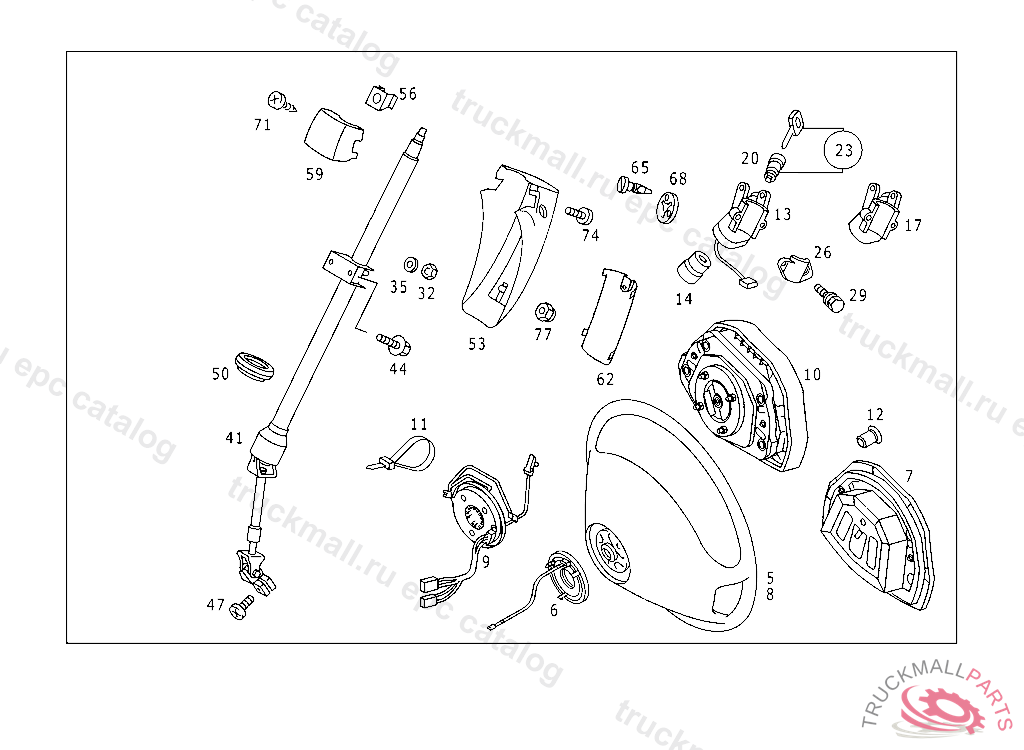

Поз.
Артикул
Описание
5
STEERING WHEEL , FOR ESP THE SLIP RING AND THE CABLE FROM SLIP RING TO THECONTACT BRIDGE MUST BE REMOVED 7E72QFT905A1800 SATURN GRAY
6
CONTACT RING USED WITHOUT AIRBAG
7
CAP. END COVER USED WITHOUT AIRBAG, 7D53QFT903A1600 DARK ORION GREY
8
STEERING WHEEL ONLY USED WITH AIRBAG, 7E72QFT904A1800 SATURN GRAY
9
CONTACT PIECE
10
AIR BAG , 7D53QFT903A2100 DARK ORION GREY
11
LOOM TIE , Replaced By: A0019978390
12
SCREW STEERING WHEEL TO STEERING COLUMN
13
STEERING LOCK
14
SWITCH
17
STEERING LOCK
20
TUMBLER STEERING LOCK, LOCKING SYSTEM, SEE GROUP 72V 202043 STATE LOCK NUMBER WHEN ORDERING THEFT-RELEVANT PART
23
TUMBLER , LOCKING SYSTEM, SEE GROUP 72, Replaced By: A0004620179
23
TUMBLER WORKSHOP VERSION,WITH KEY, ANY LOCK, ORDER ADDITIONALLY ALSO: 000 078 51 49 - SEE INCLUDED IN RANGE OF DELIVERY OF ENGINE
26
BRACKET STEERING LOCK
29
SCREW , Replaced By: A0004622271
32
NUT SPRING-LOADED PUSH ROD
35
WASHER SWITCH TO FIRE WALL
41
STEERING COLUMN
44
SCREW STEERING COLUMN TO FRONT PANEL AND TO PEDAL BEARING BRACKET M 8X20
47
SCREW
50
SEAL RING STEERING COLUMN TO FRONT PANEL AND TO PEDAL BEARING BRACKET
53
PANELLING REAR
56
CLIP CABLE DUCT COVER TO 001 988 47 42
59
SHELL AT STEERING COLUMN
62
PANELLING
65
FASTENER
68
WASHER CABLE DUCT COVER
71
SCREW PANELLING TO STEERING COLUMN 4,2X9,5
74
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X35
77
NUT , Replaced By: N913023006001
