Mercedes A6939970190 - LU V-BAND SCHELLE

1944 S 693.197

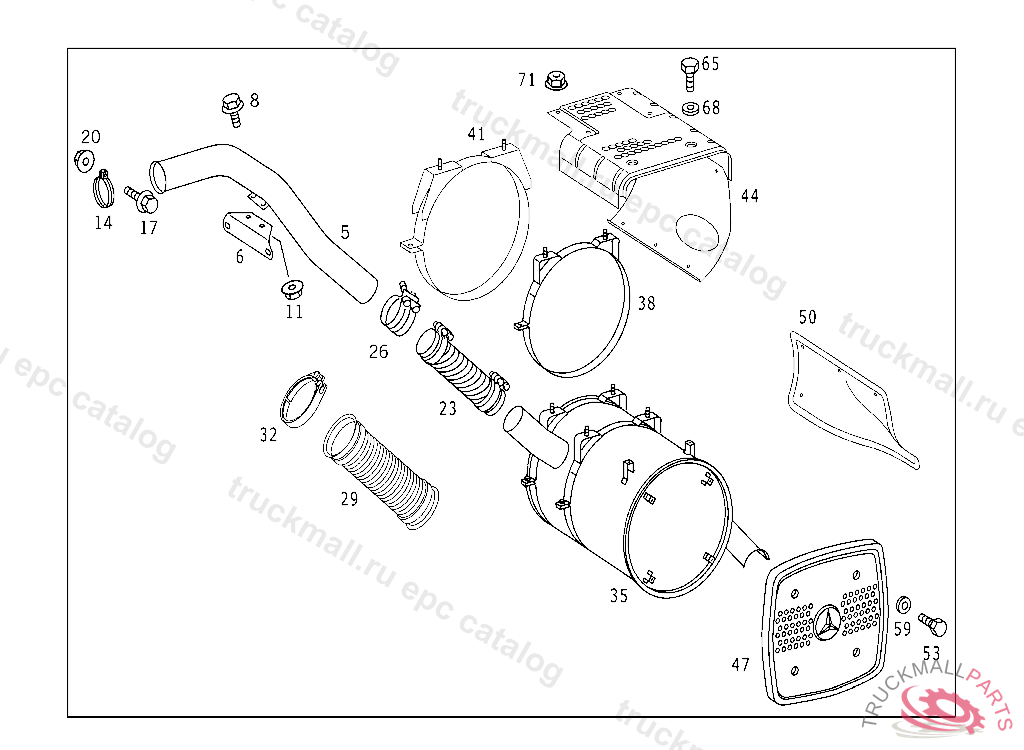

49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM

Поз.
Артикул
Описание
5
A6934900519
5
A6934900619
5
A6934900119
5
A6934900219
6
A6934917440
8
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
8
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
11
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
14
A6344920340
CLAMP AT EXHAUST PIPE
14
A6964927040
17
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
20
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
29
A6934900065
32
A6939970190
35
A6934900501
41
A9584900041
44
A6934917230
44
A6934900030
47
A6964917130
50
A6934910030
53
N000933006220
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
59
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
N000933010130
SCREW BRACKET TO STEERING
68
N000125010518
WASHER , Replaced By: N000125010532
71
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
