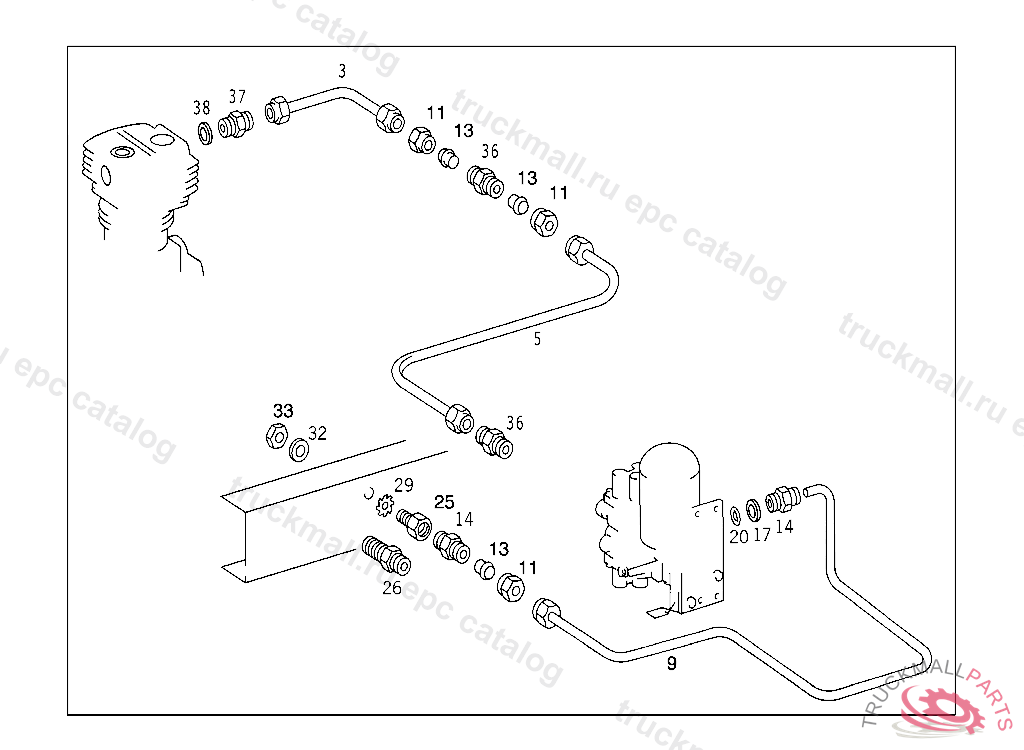

Поз.
Артикул
Описание
3
LINE FROM AIR COMPRESSOR TO AIR DEHYDRATOR
3
5
LINE , Replaced By: A6954202328, +001A6654297635
9
9
LINE FROM FITTING TO WATER SEPARATOR
11
UNION NUT
11
UNION NUT LINE MOUNTING
13
GLAND , Replaced By: A0019901667
13
GLAND , Replaced By: A0019901167
14
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
17
O-RING CHECK VALVE TO AIR RESERVOIR
20
BRACKET , Replaced By: A3864297040
25
ADAPTER FITTING LINE CONNECTION TO ENGINE
26
ADAPTER FITTING COMPRESSED AIR LINE THRU LEFT FRAME SIDE MEMBER
29
TOOTHED WASHER SENDER UNIT TO BRACKET
32
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
33
NUT BRACKET TO SIDE MEMBER
36
CONNECTION FITTING , Replaced By: N003902018002
37
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
37
CONNECTOR AT AIR COMPRESSOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
38
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
38
SEAL RING LINE CONNECTION
999
PLUGM12X1.5
999
CONNECTOR PRESSURE REGULATOR BREATHING
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
THROTTLE HOUSING. FITTING
999
999
999
CLAMP LINE MOUNTING
999
SCREW BRACKET AND CLAMP M6X20
999
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
NUT BRACKET TO FIRE WALL
999
NUT HORN TO BRACKET M8
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
