Поз.
Артикул
Описание

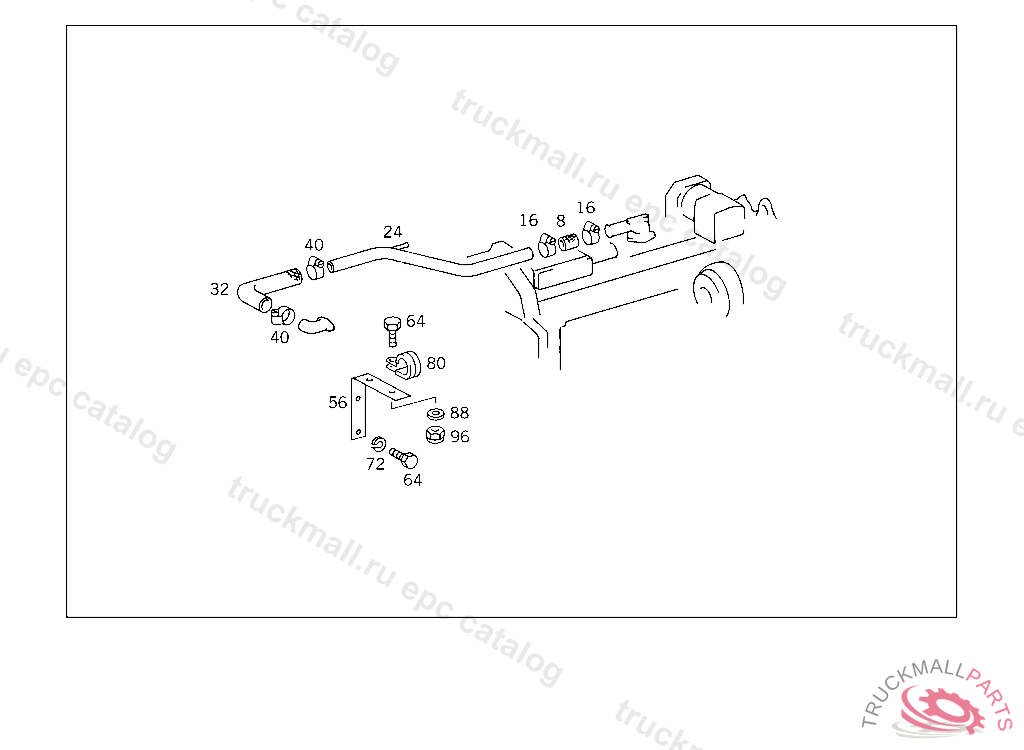

8
HOSE50X62X120, LENGTH AVAILABLE1 000 MM
16
CLAMP , Replaced By: N000000000672
16
CLAMP HOSE FASTENING 50-70X13 MM
24
COOLING WATER PIPE
24
COOLING WATER PIPE
32
HOSE LINE TO RETARDER
40
CLAMP , Replaced By: N000000000672
40
CLAMP HOSE FASTENING 50-70X13 MM
56
BRACKET
64
SCREW STEERING SHAFT BEARING TO CAB M 8X20
64
SCREW PIPE CLAMP
64
SCREW PIPE CLAMP
72
LOCK WASHER RAIL TO BATTERY SUPPORT
80
CLAMP SUCTION LINE TO CROSS MEMBER
88
WASHER TRAILER PLUG SOCKET TO BRACKET
96
NUT BRACKET TO CAB FLOOR
999
HOSE COOLING WATER LINE TO PIPE SOCKET
999
HOSE FEED & RETURN LINES TO HEAT EXCHANGER EXCHANGER, TO BE ADAPTED DURING ASSEMBLY
999
SPACER TUBE RETURN LINE TO BRACKET
999
PIPE SOCKET FEED LINE TO TRANSMISSION
999
PIPE SOCKET RETURN LINE TO TRANSMISSION
999
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
LINE FEED,CENTRAL
999
999
999
COOLING WATER PIPE
999
BUSHING COOLING WATER LINE TO TRANSMISSION 50 MM
999
WASHER EXHAUST MUFFLER TO STRAP
