Поз.
Артикул
Описание

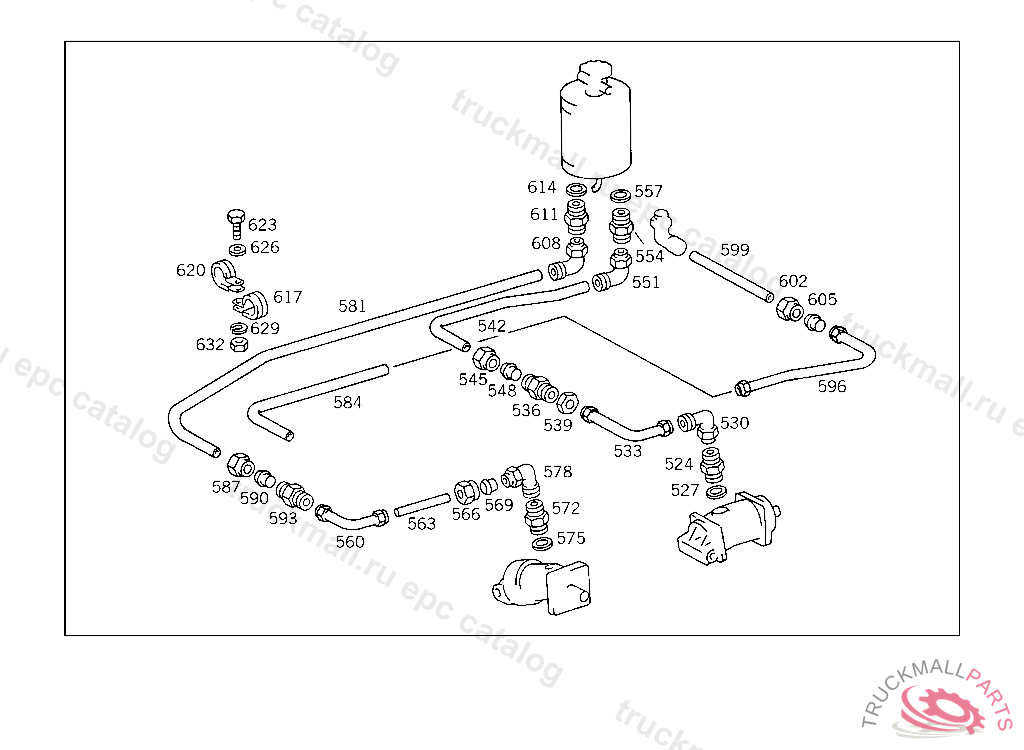

524
FITTING LINE TO OIL TANK
527
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
530
ELBOW FITTING DELIVERY LINE TO PUMP
533
HOSE (LEAK OIL LINE) FROM HYDRAULIC PUMP TO FAN MOTOR
536
FITTING DELIVERY LINE TO FRAME
539
NUT BRACKET TO SIDE MEMBER
542
LINE (LEAK OIL LINE) FROM FAN PUMP TO OIL TANK 12X1 MM
545
UNION NUT LINE CONNECTION, Replaced By: N000000006239
548
GLAND , Replaced By: A0019901967
551
ELBOW FITTING DELIVERY LINE TO PUMP
554
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
554
FITTING , Replaced By: A0039971672
557
SEAL RING SOLENOID VALVE A 18X24
560
HOSE (LEAK OIL LINE) FROM HYDRAULIC PUMP TO FAN MOTOR
563
LINE (LEAK OIL LINE) FROM FAN MOTOR TO OIL TANK 12X1 MM
566
UNION NUT LINE CONNECTION, Replaced By: N000000006239
569
GLAND , Replaced By: A0019901967
572
FITTING LINE TO OIL TANK
575
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
578
ELBOW FITTING DELIVERY LINE TO PUMP
581
LINE (LEAK OIL LINE) FROM FAN MOTOR TO OIL TANK 12X1 MM
587
UNION NUT LINE CONNECTION, Replaced By: N000000006239
590
GLAND , Replaced By: A0019901967
593
FITTING (PARTS KIT),LINE RUPTURE
608
ELBOW FITTING DELIVERY LINE TO PUMP
611
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
611
FITTING , Replaced By: A0039971672
614
SEAL RING SOLENOID VALVE A 18X24
617
CLAMP LINES TO BRACKET
620
CLAMP , Replaced By: A3829950701
623
SCREW , Replaced By: N304017008034
626
WASHER BRACKET TO LEFT SIDE MEMBER
626
WASHER , Replaced By: N009021008213
629
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
632
NUT , Replaced By: N304032008006
