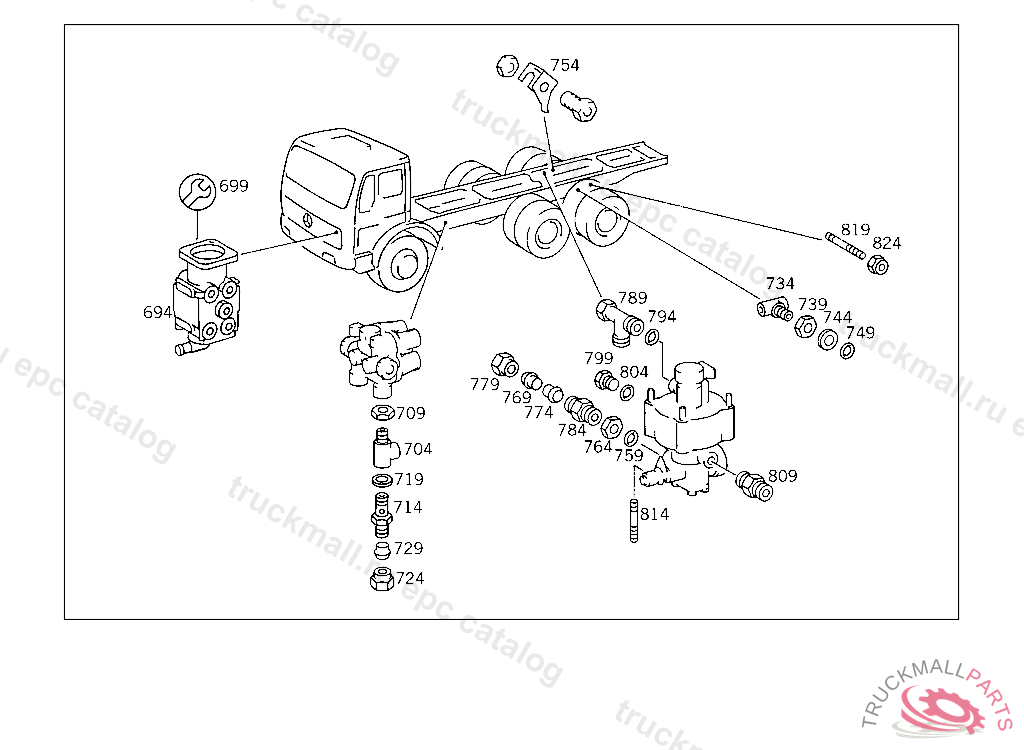

Поз.
Артикул
Описание
694
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
699
REPAIR KIT , Replaced By: A0004308206
699
REPAIR KITTO 002 431 06 05,WABCO
704
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
709
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
714
HOLLOW SCREW FITTING AT P.T.O.SHIFTING CYLINDER
719
SEAL RING SCREW PLUG
724
UNION NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
729
GLAND LINE CONNECTION
734
T-FITTING , Replaced By: A6559900070, +002A0009905168, +002N007603022403
734
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
739
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
744
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
744
THRUST RING CHECK VALVE TO AIR RESERVOIR
749
O-RING CHECK VALVE TO AIR RESERVOIR
754
LOCK BRAKE HOSE TO ANGLE
759
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
764
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
769
SEAL CONE
769
GLAND , Replaced By: A0019901667
774
SLEEVE LINE CONNECTION
779
UNION NUT
784
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
789
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
794
SEAL RING LINE CONNECTION
799
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
799
SCREW PLUGROCKINGER,TYP 59 U150
804
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
809
FITTING DELIVERY LINE TO PUMP
814
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
819
STUD BOLT P.T.O. TO BELL HOUSING M 12X30
824
NUT END PIECE TO EXHAUST PIPE
999
WASHER ADJUSTER
999
VALVE , Replaced By: A0044293144
999
FITTING , Replaced By: A0009977172
999
SEAL RING , Replaced By: A0149972247
999
VALVE , Replaced By: A0044293144
999
VALVE , Replaced By: A0044293244
999
SPACER TUBE , Replaced By: A3094310249
999
STRAP SERVICE BRAKE AIR RESERVOIR, Replaced By: A6204300040
999
BRACKET , Replaced By: A6454310740
999
BRACKET , Replaced By: A4255530840
999
STRAP , Replaced By: A3464300540
999
BRACKET , Replaced By: A6204910141
