Mercedes
AXLE
HL 7/1 D-10
740.104 MB EUROPA
42 REAR BRAKE
001 COMPRESSED AIR LINE USED FOR EXHAUST BRAKE CYLINDER OR FOR COMBINATION CYLINDER IL.3

Mercedes A0004312031 - Клапан редукционный 07635410

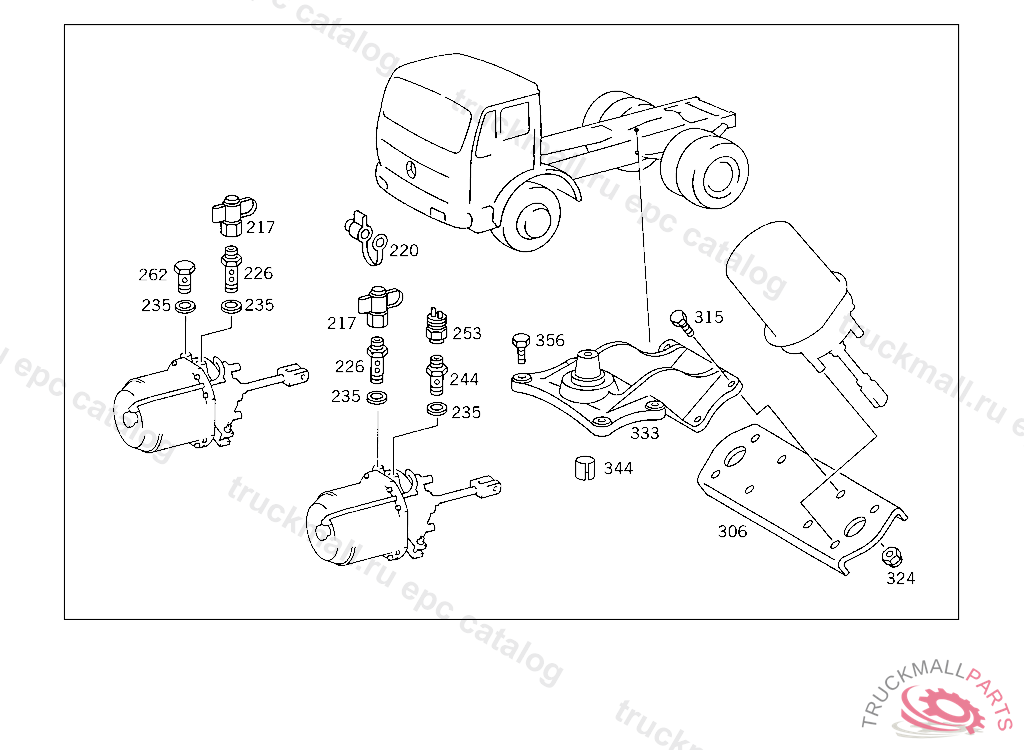

HL 7/1 D-10 740.104 MB EUROPA

42 REAR BRAKE - 001 COMPRESSED AIR LINE USED FOR EXHAUST BRAKE CYLINDER OR FOR COMBINATION CYLINDER IL.3

Поз.
Артикул
Описание
217
A0004312031
TEST CONNECTION
217
A0004314531
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
217
A0004314831
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
217
A0004316131
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
220
A0009979486
PLUG
226
N915040012206
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
235
N007603016105
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
244
N915039012205
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
253
A0005455414
SWITCH SUPPLY PRESSURE,5 966147
262
N915036012203
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
306
A3874230006
BRAKE ANCHOR TRISTOP CYLINDER
315
N000961014028
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
324
N910113014001
NUT BRACKET TO SIDE MEMBER
324
N913004014002
NUT , Replaced By: N910113014001
333
A3894201878
BEARING BRACKET TRISTOP CYLINDER
344
N001481028002
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
356
N000961016036
SCREW , Replaced By: N308676016013
356
N308676016013
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
