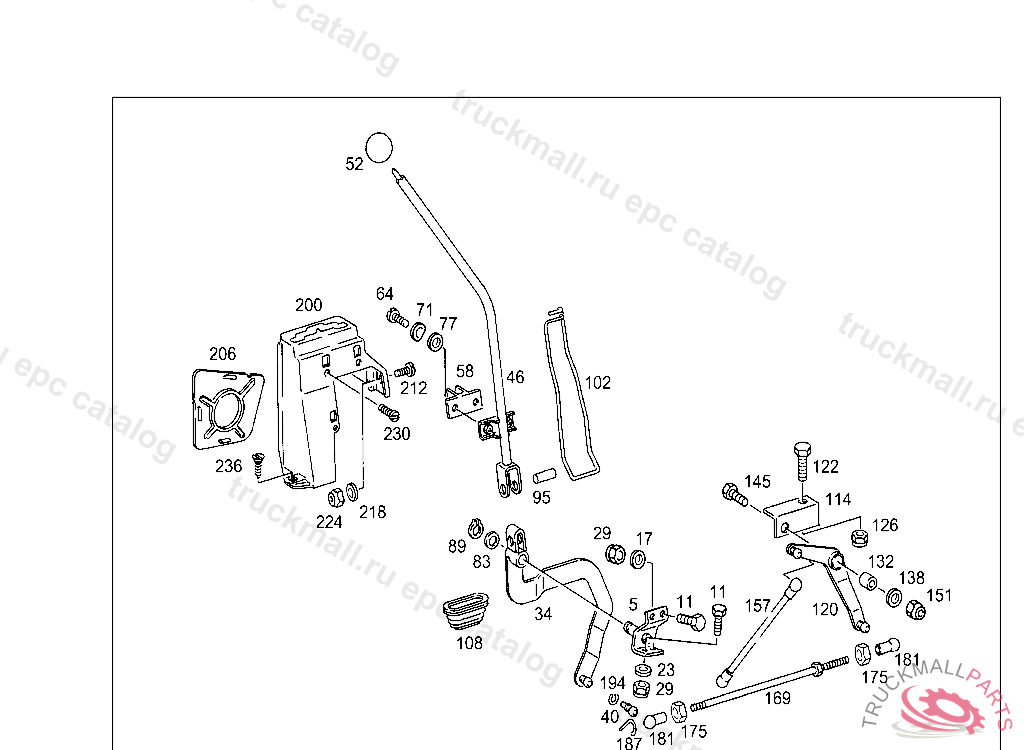

Поз.
Артикул
Описание
5
BRACKET
11
SCREW , Replaced By: N304017008021
11
SCREW PIPE CLAMP
17
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
23
WASHER , Replaced By: N000125008443
23
WASHER EXHAUST MUFFLER TO STRAP
29
NUT , Replaced By: N913004008001
29
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
34
LEVER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3132600437
34
LEVER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3132600437
40
BALL PIVOT
46
SHIFT LEVER
52
HANDLE , 108.018,019 071883 EXCEPT FOR 071802,071873 109.016 UNTIL PRODUCTION STOP 109.056 003758 111.024,025 005065 111.026,027 002941
58
BRACKET SHIFTING LEVER
64
SCREW CONTROL UNIT TO CAB
71
SPRING WASHER ALTERNATOR CONNECTION D+
77
WASHER , Replaced By: N000433005304
77
WASHER BOOT TO CAB FLOOR
83
FITTED WASHER
89
LOCK RING
95
PIVOT PIN SHIFT LEVER
102
SPRING SHIFT LEVER
108
BOOT SHIFTING LEVER
114
BRACKET TRANSMISSION
120
LEVER (INTERMEDIATE LEVER),TRANSMISSION
122
SCREW BRACKET TO CAB CONSOLE,K 035197
126
NUT , Replaced By: N910113014001
126
NUT BRACKET TO SIDE MEMBER
132
BUSHING INTERMEDIATE LEVER TO CONSOLE
138
WASHER STRUT TO CROSS MEMBER
145
SCREW REAR EXHAUST PIPE TO MUFFLER
151
NUT , Replaced By: N910113010000
151
NUT STRAP TO BRACKET
157
PULL ROD
169
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
175
NUT
181
BALL SOCKET PULL ROD
187
SNAP RING
194
SECURING CLIP. CIRCLIP
200
COVERING SLOTTED GATE
206
COVER
212
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
218
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
218
WASHER COMPRESSED AIR LINE TO BRACKET
224
NUT , Replaced By: N913004006001
224
NUT PUMP TO BRACKET
230
SCREW ,K 062140, Replaced By: N007985006580
230
SCREW APPARATUS PLATE TO CAB,K 062140
236
SHEET METAL SCREW HAND BRAKE ROD WITH COVERING TO CAB FLOOR
999
SHEET METAL SCREW , Replaced By: N007971005208
999
GROOVED PIN
999
NUT INTERMEDIATE SPEED STOP
999
BALL SOCKET ROD TO BALL PIVOT
999
PLUG , UP TO IDENT NO. 352290 EXCEPT FOR 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. ALSO INSTALLED ON 352332,352759,353163,353868,354161.
999
COVERING SLOTTED GATE
999
COVERING SLOTTED GATE
999
LEVER GEARSHIFT MECHANISM
999
LEVER GEARSHIFT MECHANISM, NOT USED
999
PLUG , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
