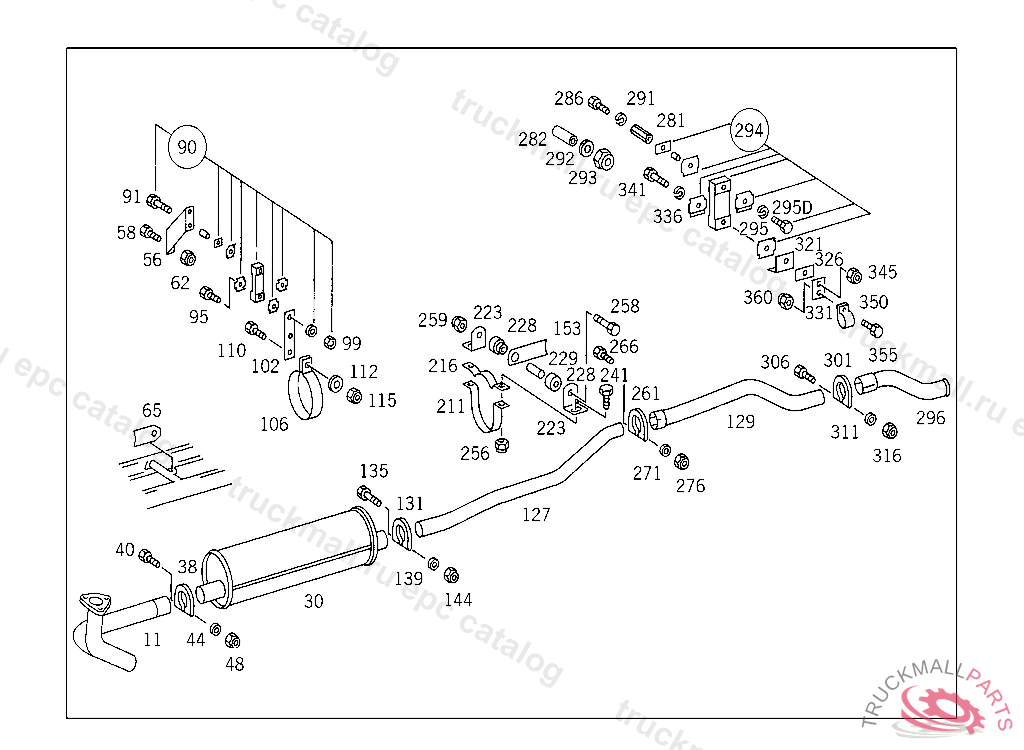

Поз.
Артикул
Описание
11
EXHAUST PIPE FRONT,564536
11
EXHAUST PIPE FRONT
30
EXHAUST MUFFLER
38
CLAMP FRONT EXHAUST PIPE TO MUFFLER
40
SCREW REAR AXLE REGULATING SOLENOID VALVE
44
WASHER EXHAUST MUFFLER TO STRAP
44
WASHER , Replaced By: N000125008443
48
HEXAGON NUT SCREENING PLATE,5 163561
48
NUT , Replaced By: A1201420072
48
NUT , Replaced By: N913004008007
56
SUPPORT EXHAUST MUFFLER TO SIDE MEMBER, FROM CHASSIS 556500 ALSO INSTALLED ON 553210,556146
58
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
65
BRACKET SUPPORT TO SIDE MEMBER
90
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
91
SCREWM 8X40
91
SCREWM 8X40
95
SCREW VALVE TO BRACKET
99
NUT , Replaced By: N913004008001
102
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
102
BRACKET , Replaced By: A3184923441
106
BRACKET EXHAUST MUFFLER SUSPENSION
106
BRACKET EXHAUST MUFFLER,564535
110
SCREW PIPE CLAMP
110
SCREW , Replaced By: N304017008021
112
WASHER EXHAUST MUFFLER TO STRAP
112
WASHER , Replaced By: N000125008443
115
HEXAGON NUT SCREENING PLATE,5 163561
115
NUT , Replaced By: A1201420072
115
NUT , Replaced By: N913004008007
127
REAR EXHAUST PIPE FRONT PART,564536
127
REAR EXHAUST PIPE FRONT PART
129
REAR EXHAUST PIPE CENTRAL PART
131
CLAMP FRONT EXHAUST PIPE TO MUFFLER
135
SCREW REAR AXLE REGULATING SOLENOID VALVE
139
WASHER EXHAUST MUFFLER TO STRAP
139
WASHER , Replaced By: N000125008443
144
HEXAGON NUT SCREENING PLATE,5 163561
144
NUT , Replaced By: A1201420072
144
NUT , Replaced By: N913004008007
153
BRACKET REAR EXHAUST PIPE,352291
211
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,352291
216
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,352291
223
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,352291
228
DAMPING PAD REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,352291
229
SPACER TUBE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER, FROM IDENT NO. 352291 ALSO INSTALLED ON 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. EXCEPT FOR 352759,353163,353868,354161.
241
SCREW PIPE CLAMP
241
SCREW PIPE CLAMP
241
SCREW , Replaced By: N304017008021
256
NUT , Replaced By: N913004008001
258
SCREW TWO-WAY VALVE TO FRAME M 8X140
259
NUT , Replaced By: N913004008001
261
CLAMP FRONT EXHAUST PIPE TO MUFFLER
266
SCREW REAR AXLE REGULATING SOLENOID VALVE
271
WASHER EXHAUST MUFFLER TO STRAP
271
WASHER , Replaced By: N000125008443
276
HEXAGON NUT SCREENING PLATE,5 163561
276
NUT , Replaced By: A1201420072
276
NUT , Replaced By: N913004008007
281
NUT REAR EXHAUST PIPE TO FRAME
282
SPACER TUBE EXHAUST PIPE TO SIDE MEMBER
286
SCREW EXHAUST PIPE TO SIDE MEMBER M 8X90,601652
286
SCREW END PIECE TO EXHAUST PIPE M 10X25
291
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
292
WASHER EXHAUST MUFFLER TO STRAP
292
WASHER , Replaced By: N000125008443
293
NUT , Replaced By: N913004008001
294
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
295
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
301
CLAMP FRONT EXHAUST PIPE TO MUFFLER
306
SCREW REAR AXLE REGULATING SOLENOID VALVE
311
WASHER EXHAUST MUFFLER TO STRAP
311
WASHER , Replaced By: N000125008443
316
HEXAGON NUT SCREENING PLATE,5 163561
316
NUT , Replaced By: A1201420072
316
NUT , Replaced By: N913004008007
321
PROTECTIVE PLATE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
326
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
326
INSULATING WASHER. INSULATION , Replaced By: A3094900037
331
BRACKET REAR EXHAUST PIPE TO BRACKET
331
BRACKET REAR EXHAUST PIPE TO BRACKET
336
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
341
SCREWM 8X40
341
SCREW VALVE TO BRACKET
345
NUT , Replaced By: N913004008001
350
CLAMP REAR EXHAUST PIPE 70.5 MM
355
SCREW BRACKET TO CROSS CONNECTION STRUT
355
SCREW , Replaced By: N304017008034
360
HEXAGON NUT SCREENING PLATE,5 163561
360
NUT , Replaced By: A1201420072
999
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
999
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
999
SPACER TUBE FRONT EXHAUST PIPE,B 884219
999
REPAIR KIT , Replaced By: A3094900037
999
SPACER TUBE , Replaced By: A3134920153
999
SPACER TUBE , Replaced By: A3104920153
