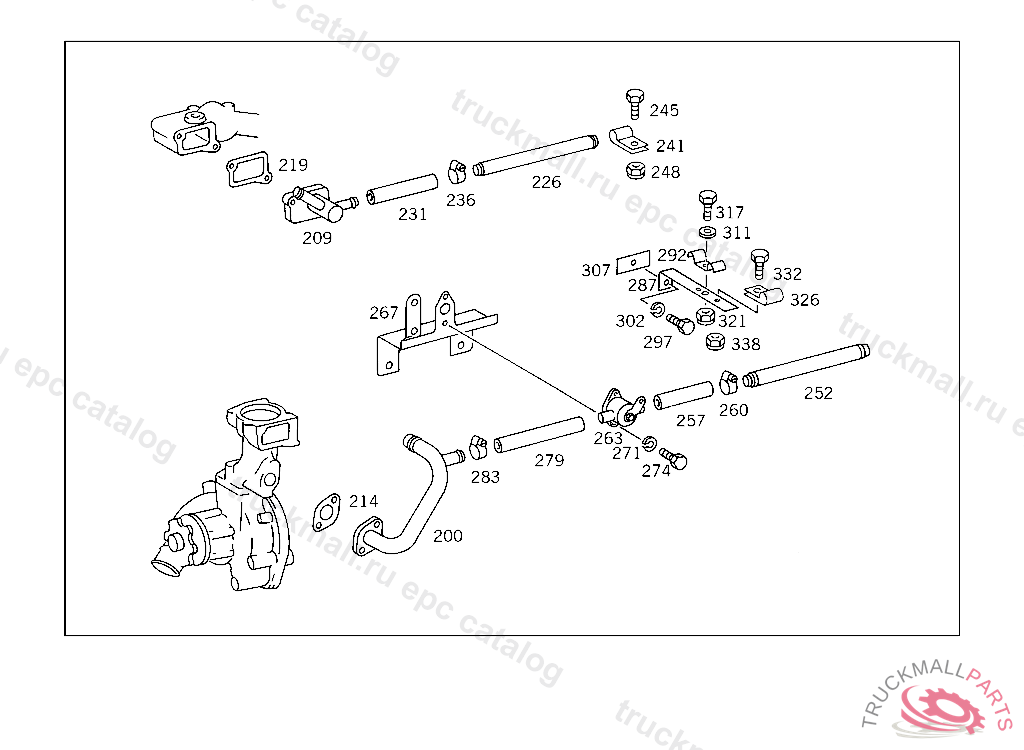

Поз.
Артикул
Описание
200
LINE DE-AERATION
209
FLANGE FEED, 313.402-429 UP TO CHASSIS 373687
214
GASKET HEATING PIPE TO ENGINE
219
GASKET DE-AERATION LINE TO HEATING LINE
219
GASKET , Replaced By: A3522032680
219
GASKET , Replaced By: A3522032480
226
PIPE FEED
231
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
236
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
236
CLAMP , Replaced By: N000000000667
241
CLAMP DELIVERY AND SUCTION LINES TO STEERING
241
CLAMP , Replaced By: A6739950001
241
CLAMP LINE MOUNTING
245
SCREW CLAMP MOUNTING M 6X16
245
SCREW , Replaced By: N000000001146
248
NUT PUMP TO BRACKET
248
NUT , Replaced By: N913004006001
252
PIPE RETURN
257
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
260
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
260
CLAMP , Replaced By: N000000000667
263
CONTROL VALVE (REGULATING VALVE)
263
CONTROL VALVE , Replaced By: A0008352820
263
VALVE , Replaced By: A0008352420
267
BRACKET REGULATING VALVE
271
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
271
LOCK WASHER BRACKET TO STEERING COLUMN END
274
SCREW IN CASE OF SUBSEQUENT INSTALLATION
279
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
283
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
283
CLAMP , Replaced By: N000000000667
287
BRACKET HEATING WATER PIPES TO CRANKCASE
292
CLAMP DELIVERY AND RETURN LINES
297
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
297
SCREW , Replaced By: N304017008016
302
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
307
BASE DELIVERY AND SUCTION LINES TO RADIATOR CONSOLE
307
SHIM , Replaced By: A4064750019
311
WASHER COMPRESSED AIR LINE TO BRACKET
311
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
317
SCREW CLAMP MOUNTING M 6X16
317
SCREW , Replaced By: N000000001146
321
NUT PUMP TO BRACKET
321
NUT , Replaced By: N913004006001
326
CLAMP LINE MOUNTING
332
SCREW COVER PLATE TO BRACKET
338
NUT PUMP TO BRACKET
338
NUT , Replaced By: N913004006001
