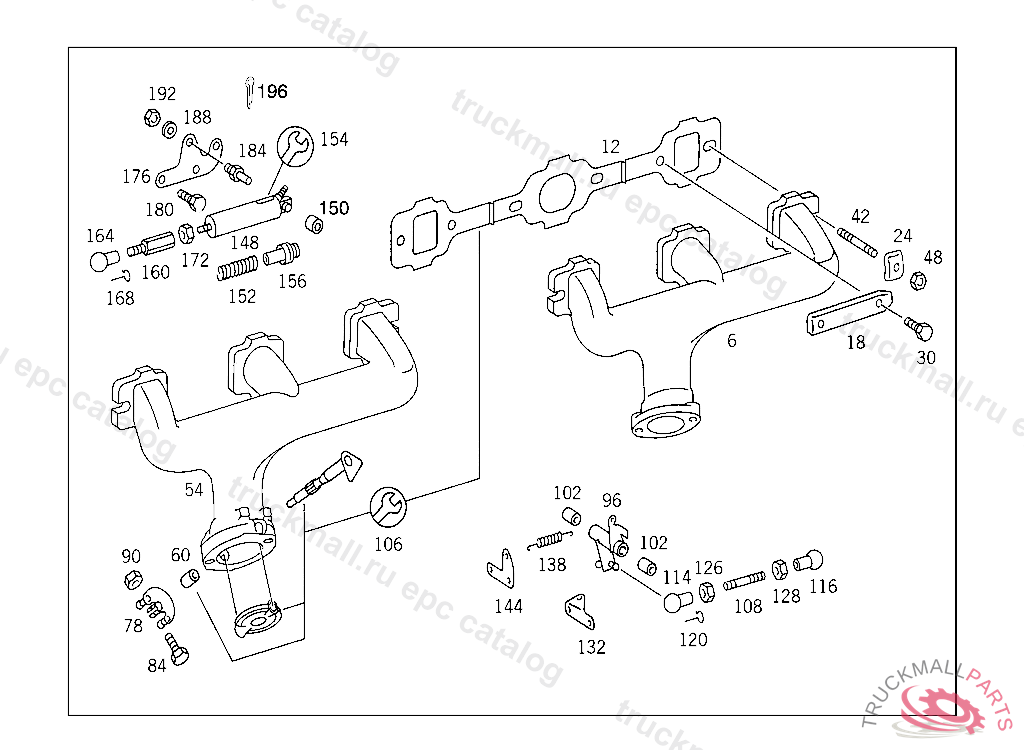

Поз.
Артикул
Описание
6
EXHAUST MANIFOLD
12
GASKET EXHAUST MANIFOLD
18
CLAMPING PIECE LATERAL
24
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD,014208
30
SCREW PIPE ELBOW TO BRACKET M 10X50
30
HEXAGON HEAD BOLT. SCREW LEVER TO RELEASE SHAFT
42
STUD BOLTM 10X45
48
NUT
54
EXHAUST MANIFOLD
60
BUSHING THROTTLE VALVE SHAFT
78
LEVER
84
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
84
SCREW , Replaced By: N000000001479
90
NUT SPRING-LOADED PUSH ROD
96
BEARING BEARING TUBE,282947
102
BUSHING MOUNTING
106
REPAIR KIT EXHAUST BRAKE,282947
108
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
114
BALL SOCKET PULL ROD TO LEVER
116
BALL SOCKET ACCELERATOR CONTROL
120
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
126
NUT SPRING-LOADED PUSH ROD
128
NUT L.H. THREAD
132
BRACKET LEVER I, 309.300-320,400-420 UP TO CHASSIS 043826, 309.370-380 UP TO CHASSIS 004062, 310.300-399 UP TO CHASSIS 003708
138
SPRING RELEASE SPRING
144
BRACKET RELEASE SPRING
148
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
148
CYLINDER , Replaced By: A0004305926
148
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
148
CYLINDER , Replaced By: A0004304926
148
CYLINDER
150
BUSHING"WABCO"
152
SPRING
154
REPAIR KIT SHIFTING CYLINDER TO KNORR, SZ 1130 I/74963,000 430 3026
154
REPAIR KITTO 000 430 48 26,KNORR
154
REPAIR KIT
156
PISTON
160
EXTENSION EXHAUST BRAKE COMPRESSED AIR CYLINDER
164
BALL SOCKET ROD TO BALL PIVOT
168
CIRCLIP ,B 884219
172
NUT
176
BRACKET COMPRESSED AIR CYLINDER
180
SCREW STOP TO BATTERY CASE
184
PIN CYLINDER TO BRACKET
184
PIN INTERMEDIATE SPEED STOP
184
PIN , Replaced By: A4421440574
184
PIN , Replaced By: A4221440174, +001N999900008004
188
WASHER , Replaced By: N000125008443
188
WASHER INTERMEDIATE SPEED STOP
188
WASHER EXHAUST MUFFLER TO STRAP
192
NUT
196
COTTER PIN STRAP TO CONSOLE 20 L
999
SHAFT
999
VALVE
999
REPAIR KIT POWER CYLINDER TO 000 430 60 26
999
CYLINDER INTERMEDIATE SPEED STOP
999
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
