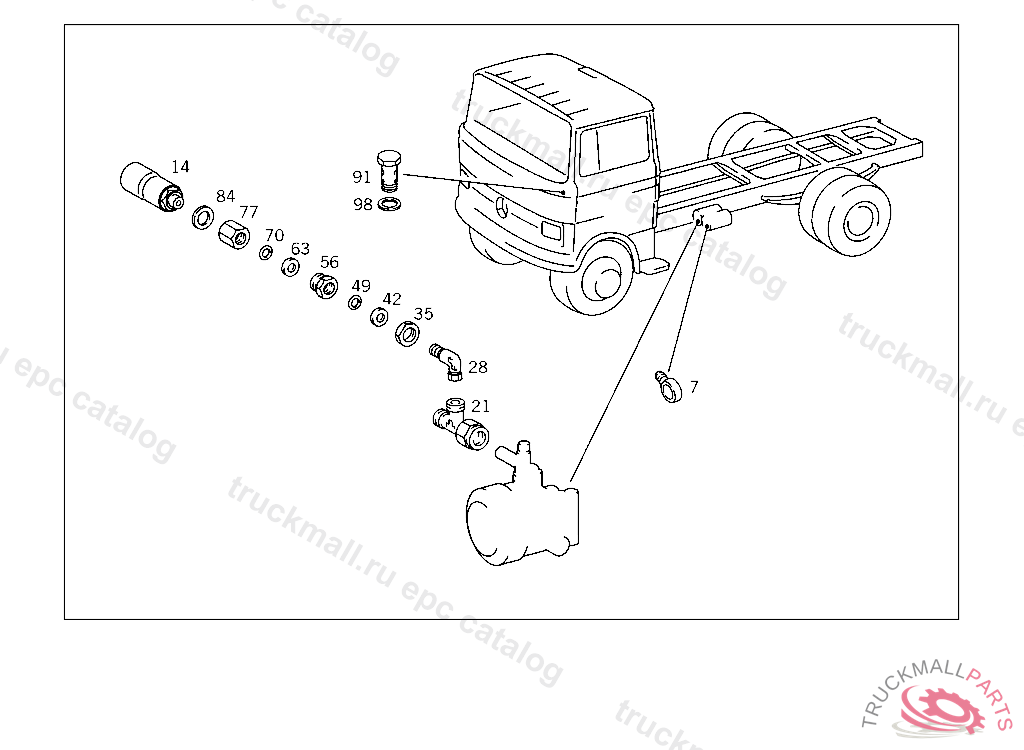

Поз.
Артикул
Описание
7
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
7
BANJO UNION , Replaced By: N915052009009
14
VALVE PRESSURE LIMIT,K 025180
14
VALVE ,K 025179, Replaced By: A0044297044
21
T-FITTING POWER STEERING
21
FITTING , Replaced By: A0019900970
28
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" "23", 314.0.2 ALL, 316.0.2 ALL, 318.051-054 FROM IDENT NO. 4 383114,318.056-599 FROM IDENT NO. 4 373937 ALSO INSTALLED ON SEE FOOTNNOTE 15
35
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
42
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
49
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
56
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
63
THRUST RING CHECK VALVE TO AIR RESERVOIR
63
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
70
O-RING CHECK VALVE TO AIR RESERVOIR
77
ADAPTER FITTING RESERVOIR TO SUPPORT
84
SEAL RING VALVE TO VALVE,K 025179
91
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
98
SEAL RING FUEL LINE TO FEED PUMP
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
SEAL CONE
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
999
GLAND , Replaced By: A0019901667
999
UNION NUT
999
BANJO UNION , Replaced By: N000000000364
999
SLEEVE LEAK LINE
