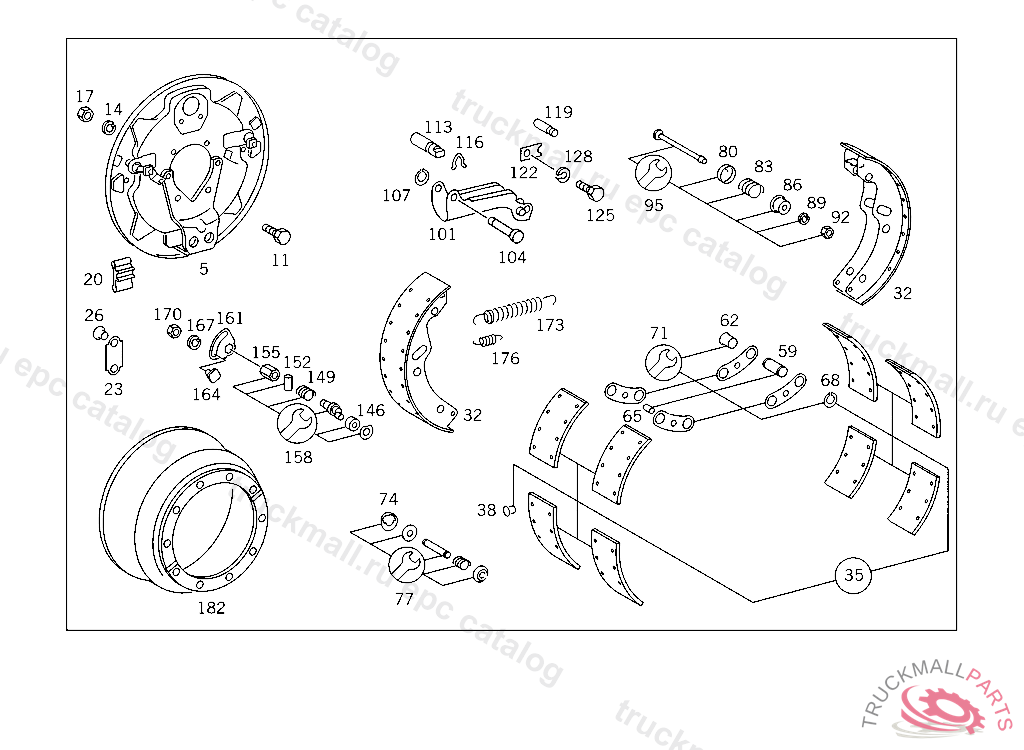

Поз.
Артикул
Описание
5
BRAKE ANCHOR PLATE RIGHT, 601567
5
BRAKE ANCHOR PLATE LEFT, 601567
14
LOCK WASHER FITTING TO BRACKET
17
NUT BRAKE ANCHOR PLATE TO REAR AXLE M 12X1.5
20
PLUG PROTECTIVE PLATE
23
INSPECTION HOLE COVER
26
RIVET
32
BRAKE SHOE LESS LINING
35
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 16.70 MM
35
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING) 15.70 MM
35
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 17.70 MM
38
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 18 MM
38
RIVET
38
RIVET BRAKE LINING 15 MM
38
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 15 MM
59
PIVOT PIN SHACKLE TO BRAKE SHOE
62
PIN SHACKLE TO BRAKE SHOE
65
BUSHING ,3 096825
68
LOCK RING TRANSMISSION CASE,TOP
71
REPAIR KIT BRAKE SHOE SHACKLE, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
71
REPAIR KIT BRAKE SHOE SHACKLE,3 096825
74
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
77
REPAIR KIT BRAKE SHOE SHACKLE SPACER PIN
80
FILLER
83
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
86
FILLER
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
92
NUT
95
REPAIR KIT BRAKE SHOE MOUNTING BOLT
101
THRUST SHACKLE , Replaced By: A3834200389
101
THRUST SHACKLE , FROM REAR AXLE 029312
104
PIVOT PIN THRUST SHACKLE TO BRAKE SHOE,3 096825
104
PIN THRUST SHACKLE TO BRAKE SHOE
107
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
113
PIVOT PIN BRAKE SHAFT TO BRAKE SHOE
116
SNAP RING ,3 096825
119
PIN , Replaced By: A3024230974
119
PIN BRAKE SHAFT TO THRUST SHACKLE, 029312 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
122
LOCK BRAKE SHAFT TO THRUST SHACKLE
125
SCREW , Replaced By: N304017008039
125
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
128
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
146
SLIDE BRAKE READJUSTMENT
149
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
152
GROOVED PIN BRAKE READJUSTMENT
155
HEXAGONAL PIECE BRAKE ANCHOR PLATE TO REAR AXLE TUBE
158
REPAIR KIT BRAKE READJUSTMENT
161
LOCK BRAKE ANCHOR PLATE TO REAR AXLE TUBE
164
SCREW , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
167
LOCK WASHER FITTING TO BRACKET
170
NUT STRAP TO SUPPORT
173
SPRING LONG
176
SPRING SHORT
182
BRAKE DRUM , UP TO REAR AXLE 008661
