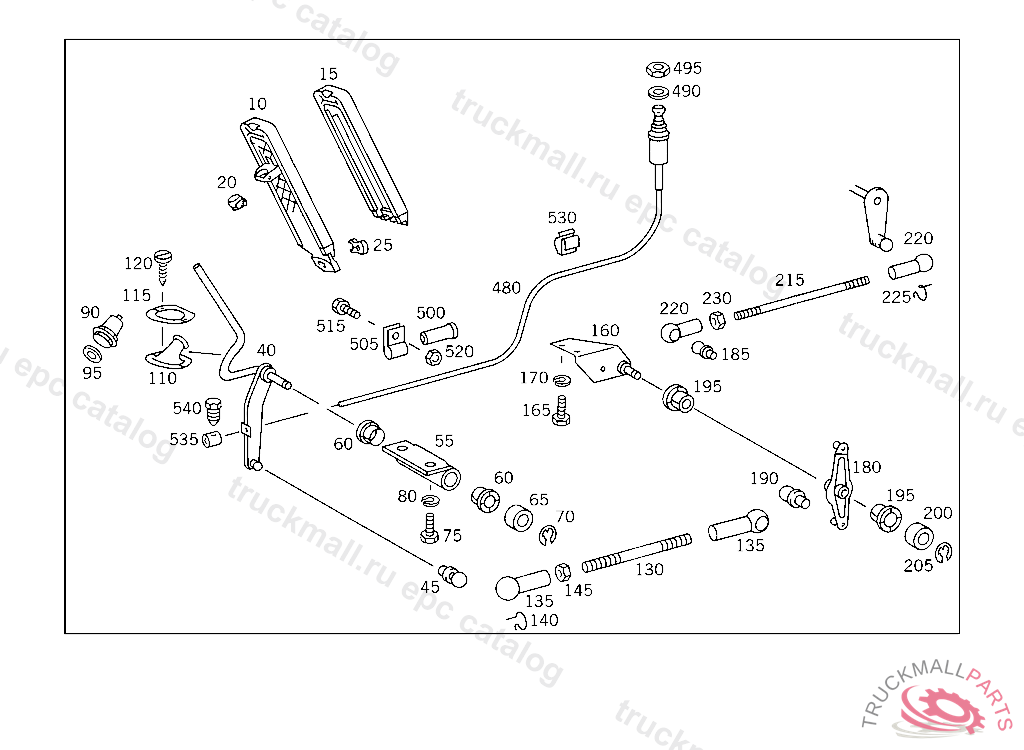

Поз.
Артикул
Описание
10
ACCELERATOR PEDAL , Replaced By: A1233000204
15
PAD , Replaced By: A1233000204
15
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
20
JOINT ,B 859430
25
CLIP
25
BRACKET , Replaced By: A1249888678
40
LEVER (PEDAL LEVER),5 051624
45
BALL PIVOT BOTTOM B13X5 MM
55
BEARING BRACKET ACCELERATOR PEDAL
60
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
65
COVERING , Replaced By: A6153010088
65
COVERING INTERMEDIATE BEARING
70
LOCK PLATE INTERMEDIATE BEARING
75
SCREW COVER PLATE TO BRACKET
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
90
STOP
95
SEAL RING KICK-DOWN SWITCH
110
BOOT PEDAL LEVER
115
BRACKET PEDAL LEVER
120
SCREW
120
SHEET METAL SCREW , Replaced By: N000000002062
130
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
135
BALL SOCKET ROD TO BALL PIVOT
140
SECURING CLIP. CIRCLIP
145
NUT
160
BRACKET INTERMEDIATE BEARING
165
SCREW , Replaced By: N304017008016
165
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
170
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
180
LEVER INTERMEDIATE BEARING
180
LEVER , Replaced By: A6153000628
180
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
185
BALL PIVOT , Replaced By: A3129910120
185
BALL PIVOT LEVER
190
BALL PIVOT BOTTOM B13X5 MM
195
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
200
COVERING , Replaced By: A6153010088
200
COVERING INTERMEDIATE BEARING
205
LOCK PLATE INTERMEDIATE BEARING
215
PULL ROD BETWEEN LEFT AND RIGHT CONTROL LEVERS
215
PULL ROD , Replaced By: N900331006619
220
BALL SOCKET PULL ROD TO LEVER
225
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
230
NUT BALL PIVOT TO LEVER
480
KNOB WITH SPINDLE,WIRE CABLE,AND END PIECE
490
SPACER WASHER ,303365 10/50 528498 20/60 528274
495
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
495
NUT , Replaced By: A3129901151
500
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
505
CLAMP LINE MOUNTING
515
SCREW COVER PLATE TO BRACKET
520
NUT , Replaced By: N913004006001
520
NUT PUMP TO BRACKET
530
CLIP CABLE HARNESS TO ROOF RAIL
535
END PIECE WIRE CABLE
535
END PIECE , Replaced By: A1233000086
540
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000933006229, +001A3763020468
540
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
NUT STRAP TO BRACKET
999
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
999
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
999
SHEET METAL SCREW , Replaced By: N000000000459
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
999
LEVER (PEDAL LEVER),5 051625
999
REINFORCEMENT BRACKET TO CAB,4 431949
999
LEVER CONTROL,RIGHT,4 431949
999
KNOB , Replaced By: A3183000007
999
PIN LEFT CONTROL LEVER,4 431949
999
BUSHING CONTROL LEVER,B 892892
999
KNOB , 10/50 528499 20/60 528275
999
ACCELERATOR PEDAL
