Главная
›
Mercedes
›
AXLE
›
HL 4/01 D-10/41:7
›
745.921
›
35 REAR AXLE 745.9
›

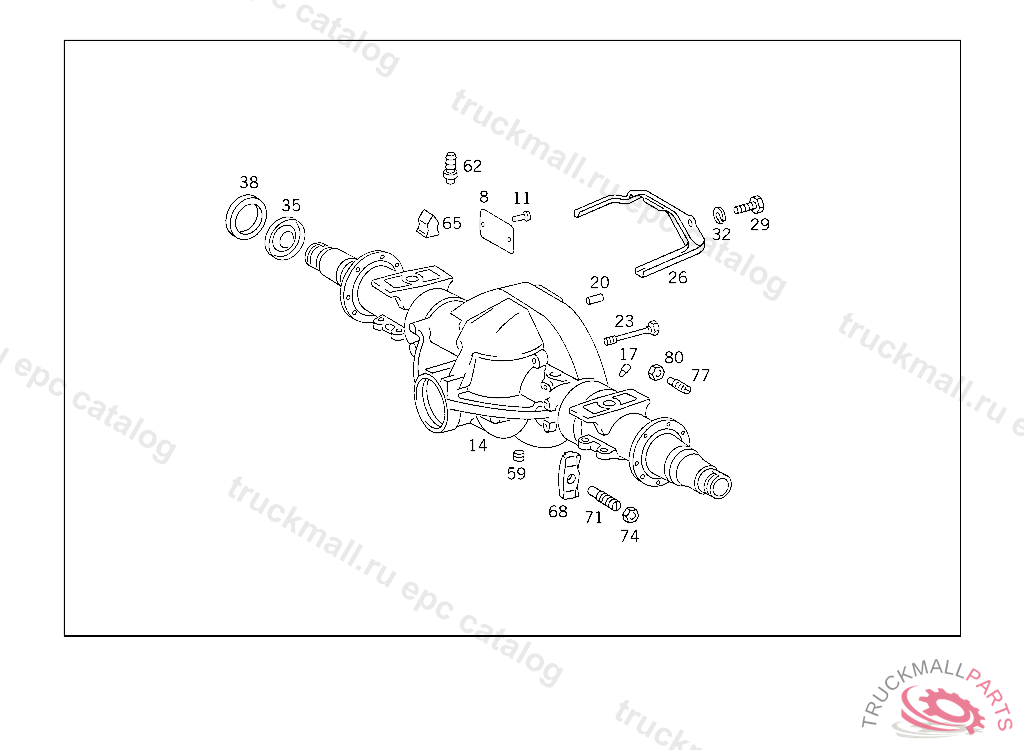

200 REAR AXLE,AXLE CASING,ATTACHMENT PARTS IL. 2
Mercedes A1869970032 - ЗАГЛУШКА РЕЗЬБОВАЯ
HL 4/01 D-10/41:7 745.921
35 REAR AXLE 745.9 - 200 REAR AXLE,AXLE CASING,ATTACHMENT PARTS IL. 2
Поз.
Артикул
Описание
8
A3515847124
UNIT IDENTIFICATION PLATE
11
N001476003009
GROOVED NAIL
14
A3863500520
AXLE HOUSING WITH REAR AXLE TUBES
14
A3863501120
AXLE HOUSING
17
A3523510074
PIN AXLE TUBE TO AXLE HOUSING
20
N000007010203
CYLINDRICAL PIN
23
A6159900004
SCREW BEARING COVER TO AXLE HOUSING M 20X1.5X132,568832
23
N914126018003
SCREW COVER TO REAR AXLE HOUSING
35
A3853570182
OIL COLLECTOR
38
A3853560015
THRUST RING LEFT AND RIGHT
59
A0009972632
SCREW PLUG HOUSING,BOTTOM,183596
59
A0009973432
SCREW PLUG HOUSING,BOTTOM,183596
59
A1869970032
SCREW PLUG , Replaced By: A0009972632
62
A3453510065
FITTING , Replaced By: A3833510065, +001A0009979082
68
A3853530149
SLIDE , NOT USED
71
A3853530376
SET SCREW AXLE HOUSING
74
N000439030202
NUT RING GEAR CHECK
77
A3643510071
SCREW BEARING COVER
80
N000439010202
NUT BATTERY CABLE TO CABLE CONNECTOR
999
A3943500400
REAR AXLE41:7,064702
