Поз.
Артикул
Описание

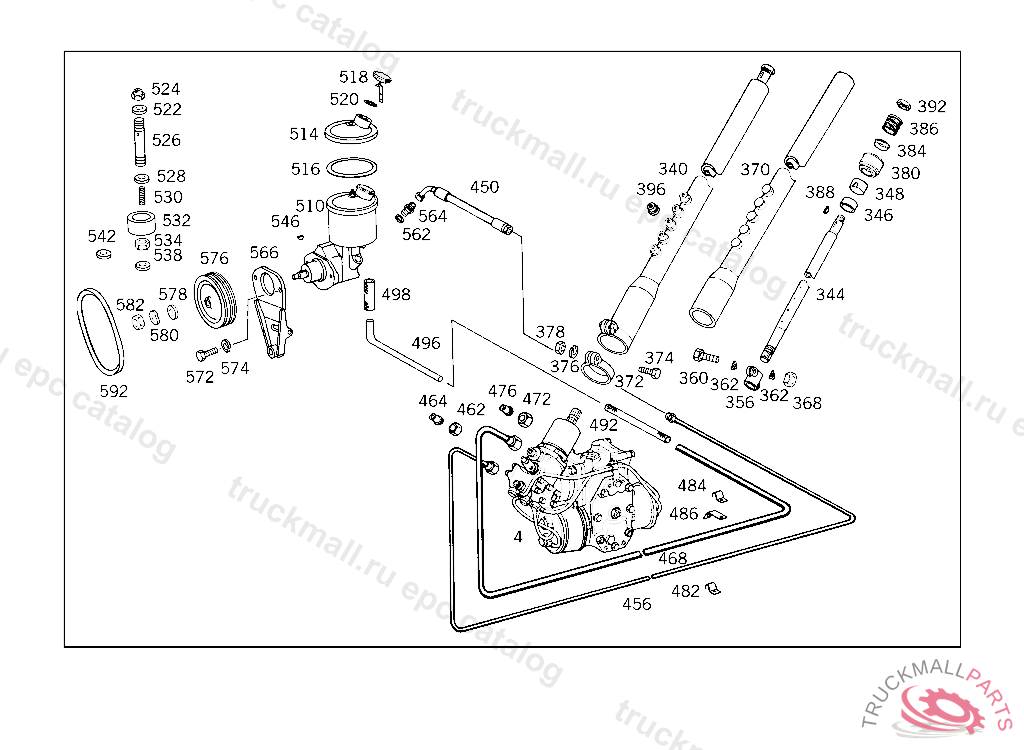

4
STEERING BOX ASSEMBLY
340
STEERING SHAFT , Replaced By: A3174600109
340
STEERING SHAFT
344
STEERING SHAFT , Replaced By: A0004622101
344
STEERING SHAFT
346
BUSHING
348
BEARING RING
356
COUPLING COLLAR , FROM IDENT NO. 001765 EXCEPT FOR, 003051-003071,003074-003077,003096,003099,003102,003104,003105,003108,003109,003110,003112,003115, 003125,003145,003146.
360
SCREW
362
LOCK , UP TO IDENT NO. 001764 ALSO INSTALLED ON, 003051-003071,003074-003077,003096,003099,003102,003104,003105,003108,003109,003110,003112,003115, 003125,003145,003146.
368
NUT
370
STEER.COLUMN JACKET TUBE
372
CLAMP
374
SCREW BRACKET TO BELL HOUSING
376
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
378
NUT BRACKET TO SUPPORT AND TO END PIECE
380
BUSHING
384
RING
386
SPRING
388
WOODRUFF KEY
392
NUT SPRING SHACKLE TO SPRING REAR BRACKET
396
CONTACT PIECE
396
CONTACT PIECE , Replaced By: A0004640319
450
HOSE
456
LINE HIGH PRESSURE, FROM HOSE TO STEERING
456
LINE , Replaced By: A3174600624
462
UNION NUT RETURN LINE
464
SEAL CONE
468
LINE LOW PRESSURE, FROM HOSE TO STEERING
472
UNION NUT FEED LINE
476
SEAL CONE
482
MOUNTING CLAMP. CLAMP DE-AERATION LINE TO BRACKET,4 465189
484
CLAMP FUEL LINE TO BRACKET
484
CLAMP , Replaced By: A1109950401
486
BRACKET
492
HOSE
496
LINE LOW PRESSURE,FROM PIPE TO OIL TANK
498
HOSE
510
HYDRAULIC PUMP , 001778
514
COVER , 001778
516
SEAL RING , 001778
518
COVER , 001778
520
SEAL RING , 001778
522
SEAL RING , 001778
524
NUT STOP LIGHT SWITCH TO PEDAL BEARING BRACKET
526
STUD , 001778
528
WASHER , 001778
530
SPRING , 001778
532
FILTER , 001778
534
NUT , 001778
538
SEAL RING , 001778 NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
542
SEAL RING , 001778 NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
546
WOODRUFF KEY , 001778
562
SEAL RING , 001778
564
FITTING , 001778
566
BRACKET
572
SCREW REFRIGERANT LINE TO COMPRESSOR,5 017486
572
SCREW , Replaced By: A0039901101
574
SPRING WASHER STEERING COLUMN BRACKET TO CAB
576
PULLEY
578
WASHER
580
SPRING WASHER CAB FLOOR
582
NUT
592
NARROW V-BELT12.5X1200
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300785
999
BOOTLEMFOERDER
999
999
CLAMP CLAMP, TWO-HOLE
999
999
999
999
999
999
999
999
999
999
999
999
BOOT DRAG LINK
999
999
999
999
999
999
TUBE STEERING SHOCK ABSORBER, 000490
999
999
BALL JOINT STEERING SHOCK ABSORBER, 000490
999
BALL JOINT STEERING SHOCK ABSORBER, 000491-002532
999
999
999
999
999
DUST CAP REAR, FROM IDENT NO. 796991 EXCEPTO 801111
999
999
999
999
999
999
999
999
999
BALL JOINT STEERING SHOCK ABSORBER, FROM IDENT NO. 002533-004753 EXCEPT FOR 004742,004744,004747,004749,004751,004752.
999
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
DUST CAP , FROM IDENT NO. 796991 EXCEPTO 801111
999
999
999
PLATE ,006548,001,002,006,008,009,015,041
999
999
999
999
999
999
999
999
999
999
999
999
999
999
999
SEALING CORD , Replaced By: A0119973645
999
999
999
999
SNAP RING REAR, FROM IDENT NO. 796991 EXCEPTO 801111
999
NUT DRAG LINK END M 24X1.5
999
HOSE , Replaced By: A0079973082
999
LOCK STOP TO BEARING BRACKET
999
CONTACT PLATE. PLATE ,009343, Replaced By: A0004640417, +001A3224600040, +001A3224640050, +001A3214640062, +001A3204640182
999
KLEMMSCHRAUBE FUR ANSCHLUSSKLEMME BIS FAHRGESTELL-NR. 00054/53
999
FIRMENZEICHEN AM LENKRAD. BADGE
999
999
999
999
999
999
HYDRAULIC PUMP , 001778, Replaced By: A3174600780
999
HYDRAULIC PUMP , 001778, Replaced By: A3174600780
999
999
999
999
STEERING BOX ASSEMBLY , Replaced By: A3174601001
999
999
999
999
999
999
999
999
999
999
999
999
999
999
999
999
999
DRAG LINK , Replaced By: A3174607005
999
999
999
DRAG LINK REAR, FROM IDENT NO. 004573 ALSO INSTALLED ON 004571
999
999
999
STEERING INTERMEDIATE ARM , 004713
999
SHOCK ABSORBER STEERING, 000490
999
SHOCK ABSORBER STEERING, 000491-002532
999
BRACKET AT CROSS MEMBER, UP TO IDENT NO. 001927 EXCEPT FOR 001904,001906-001920,001922-001926.
999
SHOCK ABSORBER , Replaced By: A3024630432
999
999
999
BRACKET LEFT, FROM IDENT NO. 001928 ALSO INSTALLED ON 001904,001906-001920,001922-001926.
999
SCREW STEERING SHOCK ABSORBER TO BRACKET, UP TO IDENT NO. 001927 EXCEPT FOR 001904,001906-001920,001922-001926.
999
SCREW STEERING SHOCK ABSORBER TO BRACKET, FROM IDENT NO. 001928 ALSO INSTALLED ON 001904,001906-001920,001922-001926.
999
999
BRACKET , 014426, Replaced By: A3224640034, +001N072573001006
999
PIN
999
999
SIGNAL RING ,006548,001,002,006,008,009,015,041, Replaced By: A3204640215, +001A0004640437, +001A3214640062, +001A3204640182
999
SIGNAL RING
999
999
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW PLUG SOCKET TO COVERING
999
COTTER PINTO 345 460 94 05
999
COTTER PINTO 309 421 00 71, 309.370-391UP TO CHASSIS 026799,FROM CHASSIS SEE SEPARATE SPARE PARTS LIST 741.030,REMAINS APPLICABLE TO 309.300-326
999
COTTER PIN ROD TO LEVER
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN LEVER TO SUPPORT
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PIN , UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
