Поз.
Артикул
Описание
400

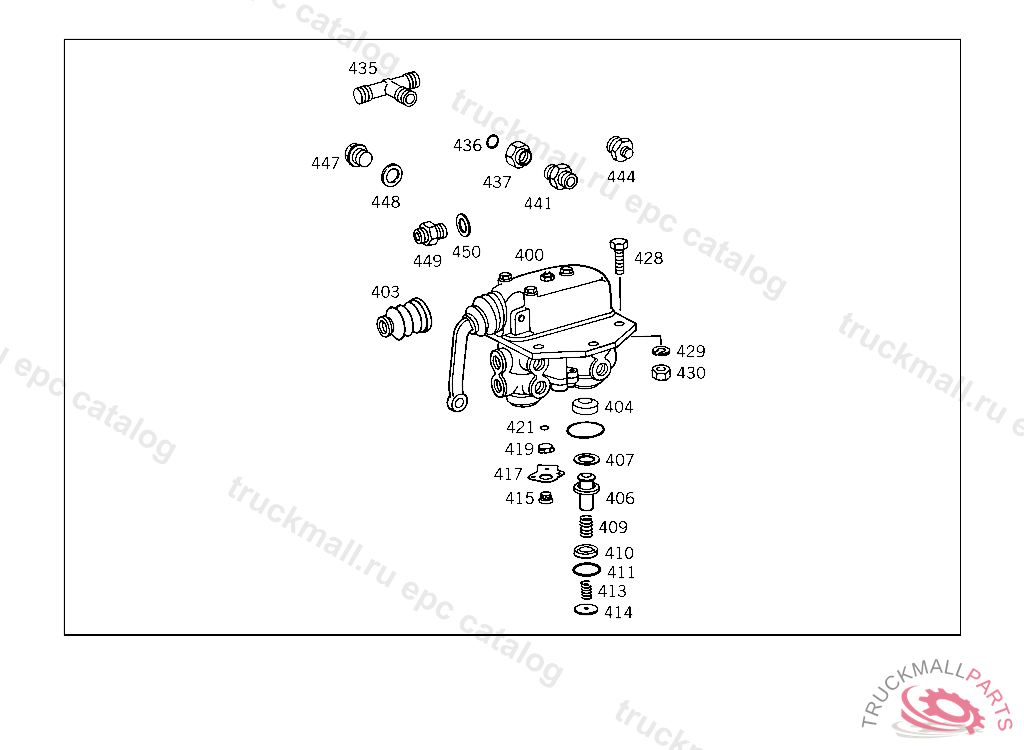

BRAKE VALVE TWO-CIRCUIT BRAKE VALVE, FROM IDENT NO. 002125-002689 AND FROM IDENT NO. 003724 ALSO INSTALLED ON 002708,003720
403
CUPTO 000 431 66 14
404
RUBBER RING , UP TO CHASSIS 002124
406
VALVE ,001504
407
GASKET
407
SEAL RING , Replaced By: A0004311580
409
SPRING
410
SEAL RING
411
SEAL RING ,002125
413
SPRING
414
WASHER ,4 390315
415
VALVE PART ,001504002125
417
SEAL RING
419
VALVE ,001504
421
SEAL RING
428
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
428
SCREW , Replaced By: N308676012012
429
LOCK WASHER FITTING TO BRACKET
430
NUT STRAP TO SUPPORT
435
T-FITTING , Replaced By: N074317000100
436
O-RING CHECK VALVE TO AIR RESERVOIR
437
NUT CHECK VALVE TO AIR RESERVOIR
441
FITTING AIR RESERVOIR,CONNECTION: "13"
444
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
447
SCREW PLUG AT TANK
447
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
448
SEAL RING LINE CONNECTION
449
TS DOUBLE FITTING SOLENOID VALVE
449
FITTING , Replaced By: A0029906071
449
FITTING , Replaced By: A0039979072
450
SEAL RING LINE CONNECTION
999
PISTON
999
CONNECTING ROD
999
CYLINDER HEAD
999
CRANKSHAFT
999
VALVE CYLINDER HEAD
999
BUSHING CONNECTING ROD
999
CYLINDER LINER
999
VALVE CYLINDER HEAD
999
999
GASKET
999
GASKET , Replaced By: A0011319380
999
GASKET , Replaced By: A0011317680
999
BOOTTO 006 420 28 18,15 18,WABCO
999
PLUGTO 694 420 71 18/72 18
999
999
GUIDE , Replaced By: A0009960301
999
999
999
999
999
BUSHING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
999
BUSHING , UP TO CHASSIS 969301,ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE 745.5
999
999
DIAPHRAGMWABCO, TO 010 420 70 18
999
999
PISTON , FROM CHASSIS 003428
999
BUSHINGWABCO,5 433388
999
VALVE SEAT RINGWABCO,5 433388
999
LINE , Replaced By: A0005516256
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE , Replaced By: A0005516456
999
CONNECTOR , Replaced By: A0004312031, +001N074302022304
999
LINE PEDAL ASSEMBLY LUBRICATION 4X0.7 MM, LENGTH AVAILABLE 25000 MM
999
999
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
999
999
ADAPTER FITTING , Replaced By: A0039972072
999
ELBOW FITTING , Replaced By: A0004291838
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
999
VALVE , TRUCKS,L.H.D.,UP TO IDENT NO. 4 422115, Replaced By: A0014296044
999
VALVE , Replaced By: A0014296344
999
999
VALVE SEAT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
STRAINER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE DISC , Replaced By: A0004311981
999
TEST CONNECTION , Replaced By: A0004314831, +001A0039972072
999
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE DISC024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
TEST CONNECTION
999
VALVE DISC101
999
VALVE , 002073, Replaced By: A0004317906
999
SEAL RING ,4 208907
999
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEAL RING PRESSURE REGULATOR,4 208907
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
CUP , INCLUDED IN RANGE OF DELIVERY OF 000 431 68 06
999
VALVE104
999
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
BRAKE VALVE
999
PRESSURE REGULATOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0024316006
999
SEAL RING PRESSURE REGULATOR,4 208907
999
PROTECTIVE CAP101
999
GASKETTO 000 429 16 30
999
SWITCH , Replaced By: A0005456409
999
SWITCH , Replaced By: A0005456009
999
SWITCH , Replaced By: A0007631410
999
999
EINROHRANSCHLUSSKOPF FUR ANSCHLUSS DES ZENTRAISCHMIERSCHLAUCHES
999
LINE PLASTIC 4X0,75 MM2, ORDER BY THE METER
999
HOHLSCHRAUBE FUR ANSCHLUSS DES ZENTRALSCHMIERSCHLAUCHES
999
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
999
999
REPAIR KIT ,4 208907
999
SEALBOSCH 024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SWITCH , TO BE ADAPTED DURING ASSEMBLY
999
SEALING CORD
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
SEALING CORD PRESSURE REGULATOR,4 208907
999
SEALING CORD PRESSURE REGULATOR,4 208907
999
999
NUTTO 001 420 87 18,88 18
999
ELBOW FITTING , Replaced By: A0029901271
999
999
PIN FROM BRAKE SHAFT TO BRAKE LEVER
999
999
SPRING , Replaced By: A0009935205
999
LOCK REVERSE IDLER SHAFT
999
CLAMP , Replaced By: N916016018201
999
FITTING FROM BRAKE BOOSTER,"A" CONNECTION,TO VALVE,"V" CONNECTION, UP TO IDENT NO. 840080 EXCEPT FOR 500001-599999
999
999
999
SEAL RING
999
SEAL RING , UP TO REAR AXLE 000545, Replaced By: A3074200139, +001A3174200339, +001A3179901640, +002A0039971548, +001N000471017000
999
999
PLUG
999
GASKET
999
GASKET CYLINDER CRANKCASE
999
999
999
VALVE (OVERFLOW VALVE) WESTINGHOUSE,5 116581
999
CUP , Replaced By: A0014312386
999
CUPTO BOSCH-NR.0481 027 104
999
CUP101
999
REPAIR KITTO 001 429 52 44
999
NEEDLE BEARING
999
SPRING , USED WITH HYDRAULIC BRAKE UP TO CHASSIS 209475 EXCEPT FOR 209273,209446,209461,209465,209471,209474.
999
SPRING , NOT USED
999
999
SPRING VALVE RETAINER
999
SPRING PRESSURE PLATE
999
999
LOCK AS REQUIRED 2.40 MM
999
FITTING
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
VALVE (OVERFLOW VALVE) BOSCH,5 116581
999
VALVE (OVERFLOW VALVE) GRAU,5 116581
999
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "1", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
999
FITTING BRAKE HOSE,5 418584
999
SEAL RING , UP TO AXLE 1 414308
999
LOOM TIE , Replaced By: N916017020000
999
SEAL RING39.2X3.0 MM
999
SEAL RING BRAKE SHOE ROLLER
999
SEAL RING PRESSURE REGULATOR,4 208907
999
SEAL RING BRAKE HOSE
999
SEAL RING
999
SEAL RING
999
SEAL RING , Replaced By: A0179974148
999
NEEDLE BEARING
999
SEAL RING101
999
CLAMP FUEL LINE TO BRACKET
999
ROLLER , Replaced By: A3354200039
999
BUSHINGTO 301 420 00 39
999
REPAIR KIT BRAKE SHOE BEARING, UP TO CHASSIS 4 886821, FROM CHASSIS SEE SPARE PARTS LIST 745.6
999
BEARING BRACKET BRAKE INTERMEDIATE SHAFT
999
BUSHING , 001,002,003,021,024 UP TO FRONT AXLE 1502306 AND REAR AXLE 1500815 005,006,007,008,025,033 UP TO REAR AXLE 1500400
999
999
SEAL RING BRAKE SHOE TO BRAKE ANCHOR PLATE, 001,002,003,021,024 UP TO FRONT AXLE 1502306 AND REAR AXLE 1500815 005,006,007,008,025,033 UP TO REAR AXLE 1500400
999
999
CLAMP
999
999
999
SPRING
999
RIVET
999
CLAMP
999
CLAMP , Replaced By: A1109950401
999
999
999
999
999
999
999
ROLLER , Replaced By: A3014200039, +002A0039971548
999
999
999
REPAIR KIT , FROM FRONT AXLE 000549
999
PROTECTIVE PLATE , Replaced By: A3054210220
999
999
PROTECTIVE PLATE , Replaced By: A3054210320
999
999
999
