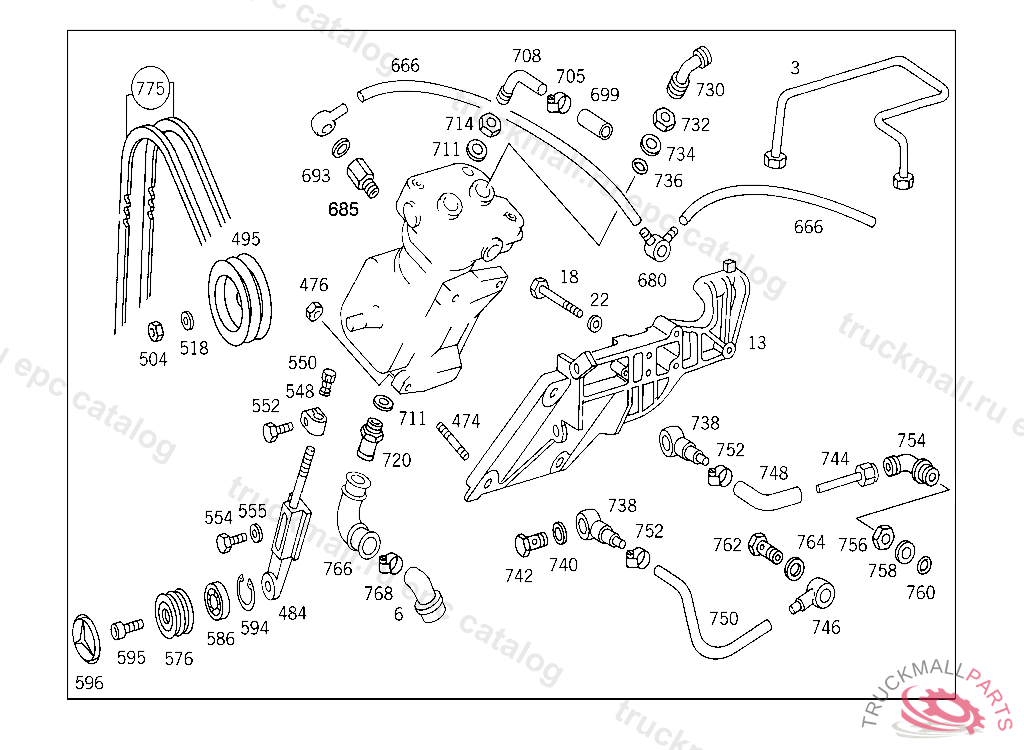

Поз.
Артикул
Описание
3
LINE CYLINDER NO.1
6
EXPANSION PLUG AIR COMPRESSOR-TO-TIMING-CASE OIL RETURN LINE, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
13
SUPPORT FUEL FILTER AND AIR COMPRESSOR
13
SUPPORT FUEL FILTER AND AIR COMPRESSOR, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
18
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
18
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
18
SCREW CLAMP ON BRACKET
18
SCREW BRACKET TO CYLINDER HEAD
18
SCREW , Replaced By: N304017010039
22
WASHER RADIATOR TO RUBBER MOUNTING
474
STUD BOLT AIR COMPRESSOR TO SUPPORT,238225/92
474
STUD BOLT BRACKET TO CROSS MEMBER
476
NUT ENGINE MOUNTING M8
476
HEXAGON NUT. NUT , Replaced By: N913023008002
484
SUPPORT , Replaced By: A3661301435
484
SUPPORT TIGHTENER PULLEY
495
PULLEY AIR COMPRESSOR, TO BE ORDERED ONLY FROM AUWAERTER
495
PULLEY AIR COMPRESSOR
495
PULLEY AIR COMPRESSOR
495
PULLEY AIR COMPRESSOR
495
PULLEY AT AIR COMPRESSOR
504
NUT VIBRATION ABSORBER TO CONSOLE
518
WASHER PULLEY TO AIR COMPRESSOR, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
548
CLAMPING PIECE TIGHTENER PULLEY
548
CLAMPING PIECE CLAMPING SHACKLE TO ALTERNATOR
548
CLAMPING PIECE , Replaced By: A4212060034
548
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
550
NUT TIGHTENER PULLEY TO LEVER
550
NUT CLAMPING SHACKLE TO ALTERNATOR
552
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
554
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
554
HEXAGON HEAD BOLT. SCREW TIGHTENER PULLEY SUPPORT AND BRACKET TO FUEL-FILTER/AIR-COMPRESSOR SUPPORT, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
554
SCREW CLAMPING BOLT TO ALTERNATOR
554
SCREW BRACKET TO FRAME
554
SCREW
554
SCREW REINFORCEMENTS AND ANGLE TO CROSS MEMBER,5 519079
554
SCREW MOUNTING PARTS M 12X65
554
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME
554
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
554
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M12X1.5X65
554
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
554
SCREW , Replaced By: N304017012012
555
SHIM TIGHTENER PULLEY SUPPORT AND BRACKET TO FUEL-FILTER/AIR-COMPRESSOR SUPPORT
555
SHIM TIGHTENER PULLEY SUPPORT AND BRACKET TO FUEL-FILTER/AIR-COMPRESSOR SUPPORT
555
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
555
WASHER COVER PLATE TO FRAME
576
TIGHTENER PULLEY
576
PULLEY , Replaced By: A3661320019
586
BALL BEARING TIGHTENER PULLEY
586
BALL BEARING
594
LOCK RING52X2 MM
594
LOCK RING
595
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
596
CAP , Replaced By: A3661320385
596
CAP
666
HOSE FROM FUEL TANK TO HEATER 4X8 MM, ORDER BY THE METER
680
BANJO UNION HOSE WIDTH, / I.D., 4/4/10 MM
680
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
685
THREADED UNION OIL LINE TO CONNECTOR
693
SEAL RING BRAKE CYLINDER STROKE INDICATOR
699
HOSE , ORDER BY THE METER
699
HOSE , Replaced By: A4969970082
705
CLAMP , Replaced By: A0059970190
705
CABLE TIE. CLAMP GUIDE TUBE TO CYLINDER CRANKCASE
708
PIPE BEND ENGINE BREATHING
711
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
711
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
711
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
714
NUT SUCTION LINE TO OIL PUMP
720
FITTING AIR COMPRESSOR,CONNECTION: "10"
720
FITTING INTAKE PIPE TO AIR COMPRESSOR
730
ELBOW FITTING , Replaced By: A0039901671
730
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
732
NUT SUCTION LINE TO OIL PUMP
734
THRUST RING SUCTION LINE TO OIL PUMP
736
SEAL RING LINE CONNECTION
738
CONNECTOR COOLING WATER INLET/OUTLET
740
SEAL RING LOCKING VALVE 22X29 MM
742
HOLLOW SCREW OIL LINE TO TRANSMISSION
744
TUBE FROM HIGH PRESSURE HOSE TO STEERING
744
PIPING , Replaced By: A0005516156
746
PIPING FROM AIR COMPRESSOR TO HOUSING
748
HOSE LINE CONNECTION TO AIR COMPRESSOR
750
HOSE FROM RADIATOR TO WATER EXPANSION TANK,C 079861
752
HOSE CLAMP LINE MOUNTING
752
CLAMP , Replaced By: A0059970190
754
FITTING , Replaced By: A0009907871
756
NUT ,D 335216
758
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
758
THRUST RING AT CYLINDER CRANKCASE
760
SEAL RING FROM CRANKCASE WATER DRAIN TO FUEL HEAT EXCHANGER
760
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
762
HOLLOW SCREW RESERVOIR TO SUPPORT
764
SEAL RING THERMOSTAT HOUSING
766
OIL LINE AIR COMPRESSOR-TO-TIMING-CASE OIL RETURN LINE, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992 UP TO ENGINE SEE GROUP 09
768
CLAMP25-40X13 MM
768
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
768
CLAMP , Replaced By: A0069970490
768
CLAMP , Replaced By: N000000000667
768
LOOM TIE , Replaced By: N000000000668
775
V-BELT , Replaced By: A0099976992
775
V-BELT SET2 PIECES 12.5X1025
775
V-BELT SET2 PIECES 13X1025
999
BUSHING OIL RETURN TO TIMING CASE
999
INTERMEDIATE PIECE OIL RETURN TO TIMING CASE
999
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 364 006362 366 034506, Replaced By: A3641870037
999
SUSPENSION EYE
999
BRACKET FUEL FILTER
999
EXPANSION PLUG , Replaced By: A3660100019
999
SEAL RING OIL RETURN TO TIMING CASE
999
SEAL RING OIL RETURN TO TIMING CASE
999
V-BELT SET2 PIECES 12.5X1000
999
COMPRESSORWABCO 225CCM, NOT USED
999
COMPRESSORWABCO 225CCM, NOT USED
999
CRANKSHAFTKNORR
999
CYLINDER HEADKNORR
