Поз.
Артикул
Описание

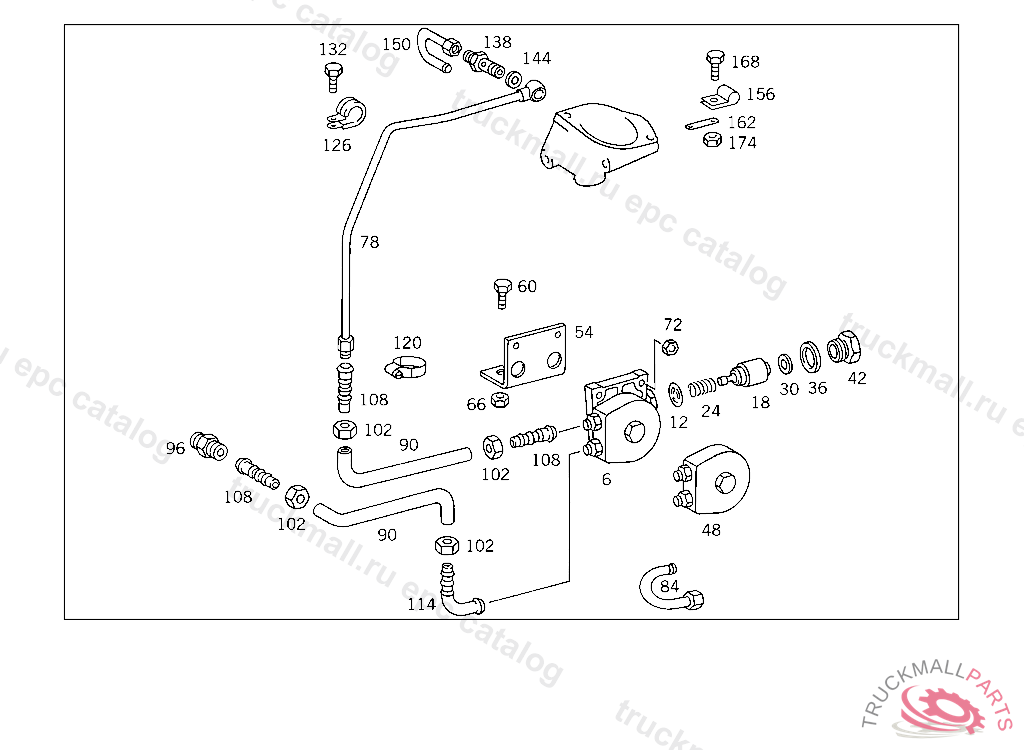

6
PREHEATER , Replaced By: A3660780017, +001A0000700079
12
WASHER
18
THERMOSTAT
24
SPRING
30
WASHER
36
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
42
SCREW
48
HEAT EXCHANGER
54
BRACKET FUEL PREHEATING
60
SCREWM 16X25
60
SCREW REDUCTION VALVE TO BRACKET
60
SCREW , Replaced By: A0079900801
60
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
66
HEXAGON NUT. NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, Replaced By: N000000005461
66
HEXAGON NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
72
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
78
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
78
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
84
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
90
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
96
CONNECTOR CYLINDER CRANKCASE WATER DRAIN
102
NUT
108
CONNECTOR. LINE FROM INTAKE MANIFOLD TO CHECK VALVE,556499
114
LINE VACUUM LINE, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
120
HOSE CLAMP LINE MOUNTING
120
CLAMP , Replaced By: A0059970190
126
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
132
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
138
FITTING COOLING WATER LINE TO THERMOSTAT
144
SEAL RING DELIVERY LINE
150
BREATHER LINE THERMOSTAT HOUSING, UP TO ENGINE 253402 YEAR OF MANUFACTURE 1992
156
CLAMP LINE MOUNTING
162
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
162
BRACKET , Replaced By: A3604293140
168
SCREW COVER PLATE TO COVER PLATE M 6 X 12
174
NUT SPRING-LOADED PUSH ROD
999
COVERTO 001 092 72 01
999
FILTER HEAD
999
FILTER
999
HOLLOW SCREW
999
FILTER FUEL FILTER "HENGST",RB031294
999
FILTER FUEL FILTER
999
SEAL RING
999
SEAL RING
999
CONNECTOR PIPE SOCKET TO THERMOSTAT HOUSING
999
FITTING THERMOSTAT HOUSING BREATHING
999
HOUSING
999
SCREW PLUG FUEL TANK BREATHING M 14X1.5
