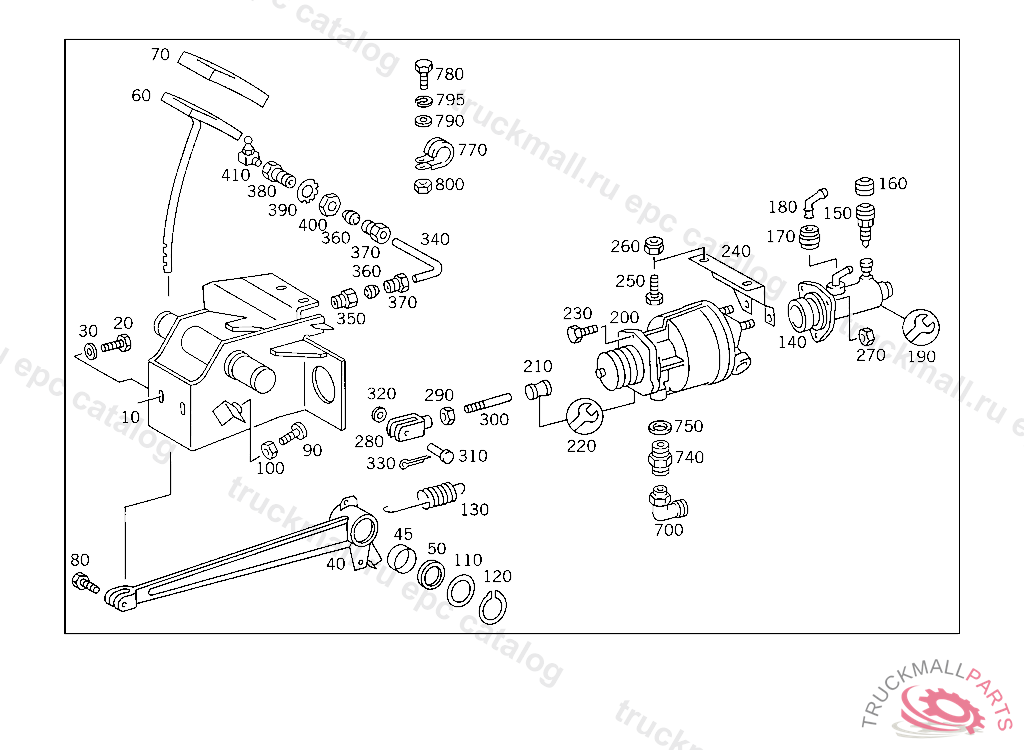

Поз.
Артикул
Описание
10
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL
20
SCREW , Replaced By: N304017010043
30
WASHER RADIATOR TO RUBBER MOUNTING
30
WASHER , Replaced By: N000125010532
40
PEDAL CLUTCH
40
PEDAL CLUTCH
45
BUSHING RELEASE SHAFT,TOP 35X39 MM
45
BUSHING CLUTCH PEDAL TO 373 290 70 16
50
SEAL RING BRAKE PEDAL TO 301 290 02 18
60
PEDAL PLATE CLUTCH
70
PAD BRAKE PEDAL
80
SCREW END PIECE TO EXHAUST PIPE M 10X25
90
STOP CLUTCH PEDAL STOP
100
NUT , Replaced By: N304035008001
110
WASHER CLUTCH PEDAL TO BEARING BRACKET
120
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
130
SPRING CLUTCH PEDAL RESET
140
MASTER CYLINDER CLUTCH FAG
150
VALVE CLUTCH SLAVE CYLINDER
160
PROTECTIVE CAP , Replaced By: A0004217187
160
PROTECTIVE CAP ,5 962906
170
PLUG
180
INTERMEDIATE PIECE
180
INTERMEDIATE PIECETO 000 295 82 06
190
REPAIR KIT CLUTCH MASTER CYLINDER "FAG"
200
MASTER CYLINDER CLUTCH BOOSTER
210
RUBBER BUFFER
220
REPAIR KITTO 000 295 71 06
230
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
230
SCREW , Replaced By: N304017008016
240
BRACKET CLUTCH BOOSTER
250
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
250
SCREW SWITCH TO BRACKET 8X16
260
NUT BRACKET TO SIDE MEMBER
270
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
280
YOKE FOLLOWER LEVER TO CLUTCH BOOSTER
290
NUT R.H. THREAD
300
ROD FOLLOWER LEVER TO CLUTCH BOOSTER
310
PIN ROD TO LEVER
320
WASHER PISTON ROD TO LEVER
330
COTTER PIN LEVER TO SUPPORT
340
LINE PEDAL ASSEMBLY LUBRICATION 4X0.7 MM, LENGTH AVAILABLE 25000 MM
350
CONNECTOR TRAILER COUPLING,FRONTVOGEL
360
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
370
UNION SCREW RELEASE COLLAR LUBRICATION
380
BULKHEAD FITTING RELEASE BEARING LUBRICATION
390
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
400
NUT JOINT TO BRACKET
400
NUT , Replaced By: N308675014001
410
GREASE NIPPLE
700
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
740
FITTING LINE CONNECTION
750
SEAL RINGTO 000 553 03 05,000 553 18 05,
770
CLAMP DELIVERY AND SUCTION LINES TO FRAME
770
CLAMP ,K 147121, Replaced By: N000000000319
780
SCREW CAB FLOOR COVERING M 6X25
790
WASHER , Replaced By: N009021006208
795
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
800
NUT , Replaced By: N910113006001
