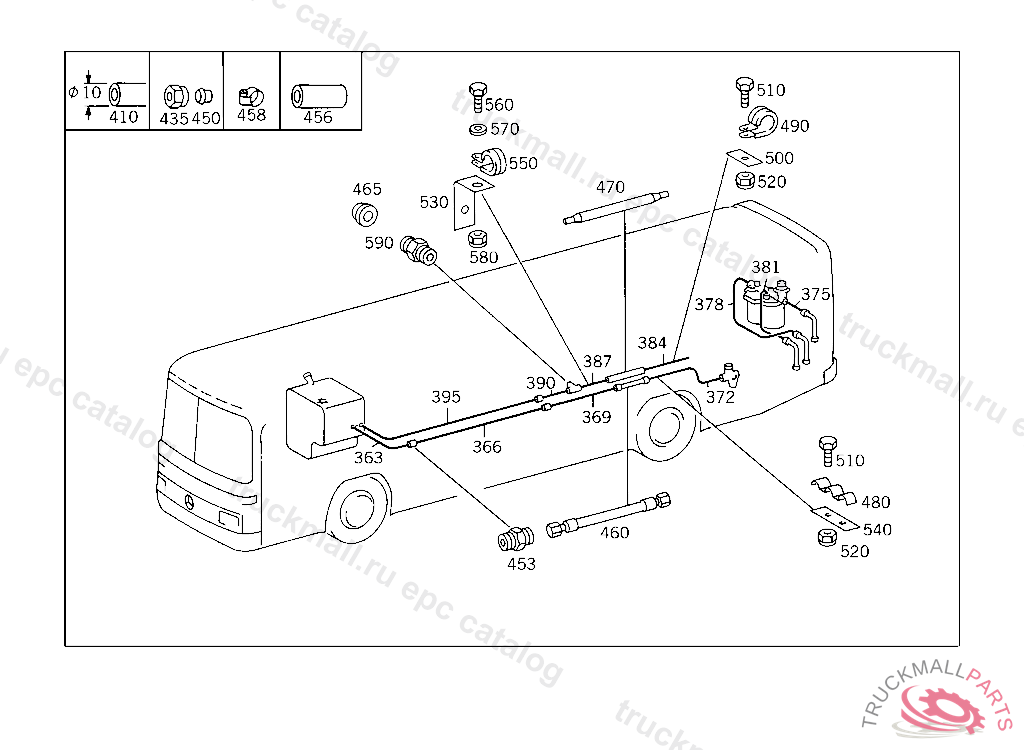

Поз.
Артикул
Описание
363
LINE FROM FUEL TANK TO CONNECTOR I
363
LINE , Replaced By: A3734708665
366
LINE FROM CONNECTOR I TO CONNECTOR II
366
LINE FROM CONNECTOR I TO CONNECTOR II
372
LINE FUEL LINE TO ENGINE
375
LINE FROM FUEL HOSE TO MANUAL AUXILIARY PUMP
378
LINE FROM FUEL FILTER TO CONNECTING HOSE, FEED
381
LINE FROM FUEL FILTER TO RUBBER HOSE,RETURN
384
LINE FUEL LINE TO RETURN LINE CONNECTION AT ENGINE
387
LINE FROM FUEL LINE TO T-FITTING
390
LINE FROM CONNECTOR TO T-FITTING
395
LINE FROM CONNECTOR II TO FUEL TANK
410
LINE FEED & RETURN 10X1 MM, LENGTH AVAILABLE: 3000 MM
410
LINE FEED AND RETURN LINES TO FUEL TANK 10X0.7 MM, LENGTH AVAILABLE 25.000 MM
435
NUT. UNION NUT RETURN
435
NUT. UNION NUT LINE CONNECTION
450
CUTTING RING. GLAND LINE CONNECTION
453
FITTING (PARTS KIT),LINE RUPTURE
453
CONNECTION FITTING , Replaced By: A0049971672
456
HOSE LEAK LINE
458
CLAMP FROM FUEL FILTER TO FUEL TANK
460
HOSE RETURN
465
LOCKING CONE REAR DOOR CLOSING SYSTEM
470
HOSE FUEL RETURN LINE
480
CLAMP LINE MOUNTING
490
CLAMP
490
CLAMP
500
BASE , Replaced By: A3142030084
510
SCREW CAB FLOOR COVERING M 6X25
520
NUT , Replaced By: N910113006001
530
BRACKET RADIATOR BASE FRAME
540
BRACKET FUEL LINES TO BRACKET
550
CLAMP , Replaced By: N916016010211
560
SCREW CAB FLOOR COVERING M 6X25
570
WASHER , Replaced By: N009021006208
580
NUT , Replaced By: N910113006001
590
FITTING CONNECTION TO HEATER UNIT
999
