Поз.
Артикул
Описание

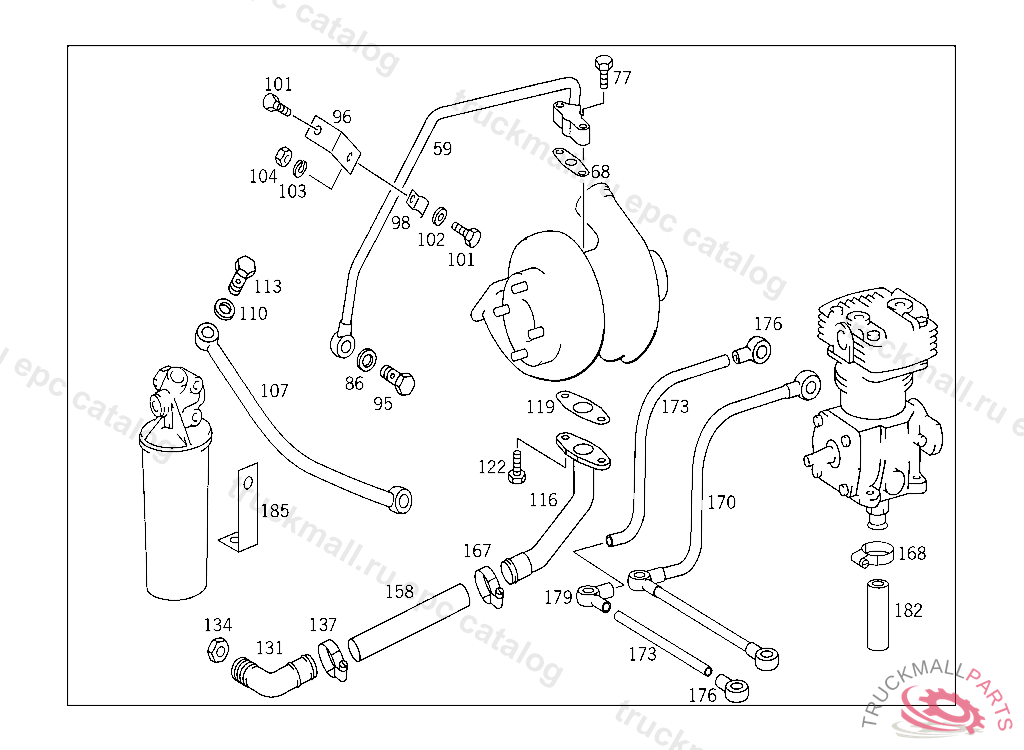

59
OIL LINE TURBOCHARGER
68
GASKET FLANGE TO TURBOCHARGER
77
SCREW PULLEY
86
SEAL RING
95
HOLLOW SCREW INJECTION PUMP
96
BRACKET OIL LINE TO TURBO-CHARGER
98
BEFESTIGUNGSSCHELLE. CLAMP LINES TO ENGINE
101
SCREW BRACKET TO CONSOLE
102
WASHER BRACKET TO INJECTION PUMP
103
LOCK WASHER CLAMP TO BRACKET
104
NUT , Replaced By: N304032006004
107
OIL LINE INJECTION PUMP LUBRICATION
110
SEAL RING BRAKE CYLINDER STROKE INDICATOR
113
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
116
OIL LINE OIL RETURN LINE
119
GASKET OIL RETURN LINE TO TURBOCHARGER
119
GASKET , Replaced By: A4421870080
119
GASKET OIL RETURN LINE TO TURBOCHARGER
122
SCREW
131
PIPE ELBOW OIL RETURN LINE TO CYLINDER CRANKCASE,585512
131
PIPE ELBOW , FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
131
PIPE ELBOW , UP TO ENGINE 432713 YEAR OF MANUFACTURE 1996, Replaced By: A3661870224, +001A3661800822, +001A3669970382, +002A0069970490
134
NUT , Replaced By: N080705026003
137
CLAMP25-40X13 MM
137
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
158
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
167
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
170
OIL LINE LUBRICATION OF AIR COMPRESSOR AND INJECTION PUMP
170
OIL LINE LUBRICATION OF AIR COMPRESSOR AND INJECTION PUMP
