Поз.
Артикул
Описание
32

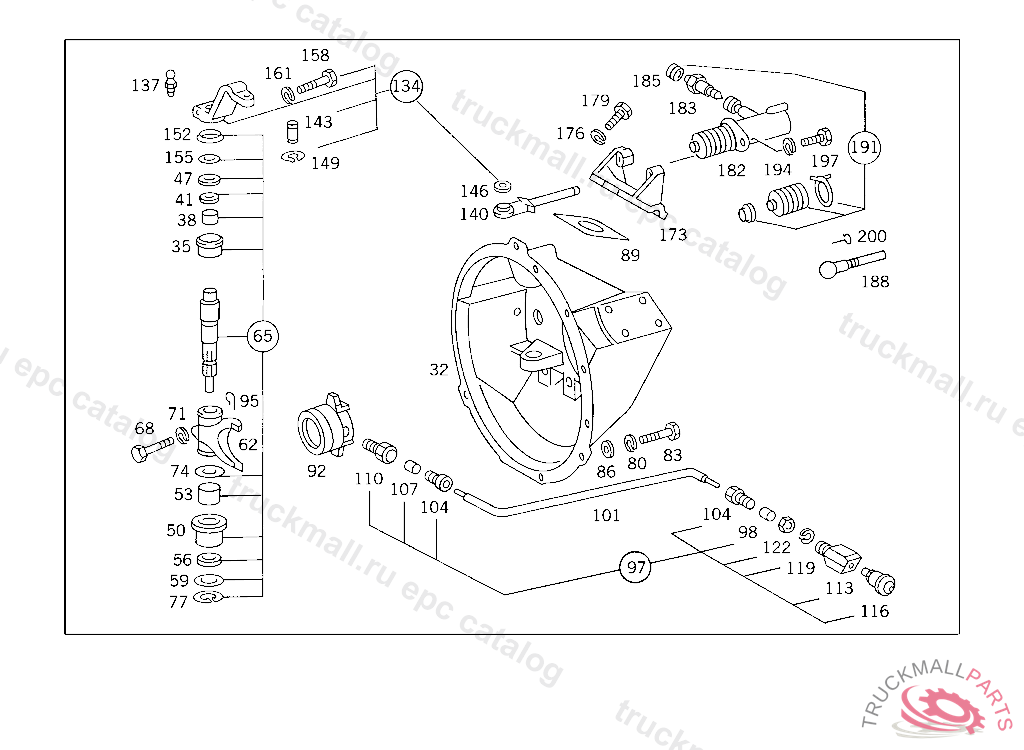

HOUSING BELL HOUSING WITH BUSHINGS
32
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 753305, Replaced By: A3972500405, +002A3852420905, +008N000961018019
32
HOUSING ,5 285575, Replaced By: A6202501105, +001A6202500155
35
BUSHING ,4 401411, Replaced By: A3852510450, +001A0119978846
35
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
35
BUSHING RELEASE SHAFT,TOP
38
BUSHING RELEASE SHAFT,TOP 35X39 MM
41
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
41
SEAL RING RELEASE SHAFT,TOP
41
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
47
COVER PLATE RELEASE SHAFT,TOP
50
BUSHING RELEASE SHAFT,BOTTOM
53
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
56
SEAL RING BOTTOM
59
WASHER AS REQUIRED 0.80 MM
59
WASHER AS REQUIRED 1.10 MM
59
WASHER AS REQUIRED 1.20 MM
59
WASHER AS REQUIRED 1.00 MM
59
WASHER AS REQUIRED 1.3 MM
59
WASHER AS REQUIRED 0.90 MM
62
RELEASE LEVER CLUTCH ACTUATION
62
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
65
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
65
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
65
REPAIR KIT , Replaced By: A3892500014
65
SHAFT (PARTS KIT),RELEASE SHAFT
68
SCREW , Replaced By: N304017012002
68
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
71
LOCK WASHER FITTING TO BRACKET
74
SPACER WASHER RELEASE SHAFT,BOTTOM
77
LOCK RING RELEASE SHAFT,BOTTOM
80
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
83
SCREW RADIATOR M 10X45
86
WASHER , Replaced By: N000125010532
86
WASHER RADIATOR TO RUBBER MOUNTING
89
COVER BELL HOUSING,4 743985
92
RELEASE BEARING
92
RELEASE BEARING
95
SPRING RELEASE BEARING TO RELEASE LEVER
97
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
98
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
101
HOSE RELEASE COLLAR LUBRICATION 220 MM
104
UNION SCREW RELEASE COLLAR LUBRICATION
107
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
110
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
113
GREASE NIPPLE RELEASE COLLAR LUBRICATION
113
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
116
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
116
CAP RELEASE BEARING LUBRICATION
119
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
122
NUT , Replaced By: N308675014000
122
NUT , Replaced By: N308675014002
122
NUT RELEASE BEARING LUBRICATION
134
LEVER (PARTS KIT),CLUTCH ACTUATION
137
BALL PIVOT CLUTCH ACTUATION,4 601609
140
ROD END CLUTCH ACTUATION
143
PIN CLUTCH ACTUATION
146
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
146
SEAL RING CLUTCH ACTUATION
149
LOCK RINGTO 000 553 37 01,000 553 39 01,
152
COVER RELEASE SHAFT,TOP
152
WASHER , Replaced By: A6202540176
152
WASHER LEVER TO RELEASE SHAFT,5 285575
155
SEAL RING LEVER TO RELEASE SHAFT,5 285575
158
SCREW , Replaced By: N304017010053
161
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
173
BRACKET , Replaced By: A3072950840
173
BRACKET , Replaced By: A3072950840
173
BRACKET CLUTCH ACTUATION
176
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
179
SCREW , Replaced By: N304017010002
179
SCREW BRACKET TO SIDE MEMBER
182
SLAVE CYLINDER CLUTCH ACTUATION
182
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
182
SLAVE CYLINDER , Replaced By: A0012955307
182
SLAVE CYLINDER CLUTCH ACTUATION
182
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
183
VALVE , Replaced By: A3075530107
183
VALVE CLUTCH SLAVE CYLINDER
185
PROTECTIVE CAP , Replaced By: A0004217187
185
PROTECTIVE CAP , Replaced By: A0004210887
185
PROTECTIVE CAP ,5 962906
185
PROTECTIVE CAP , Replaced By: A0004210887
188
PIN CLUTCH SLAVE CYLINDER
191
REPAIR KIT CLUTCH SLAVE CYLINDER
191
REPAIR KIT , Replaced By: A0002900911
194
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
197
SCREW , Replaced By: N304017010002
197
SCREW BRACKET TO SIDE MEMBER
200
SNAP RING CLUTCH SLAVE CYLINDER
200
SECURING CLIP , Replaced By: N073130019300
999
LOCK
999
BOOT , Replaced By: A0005863129
999
LEVER CLUTCH ACTUATION,4 601610
999
LEVER ,4 601609, Replaced By: A6202900534, +001A0009966440
