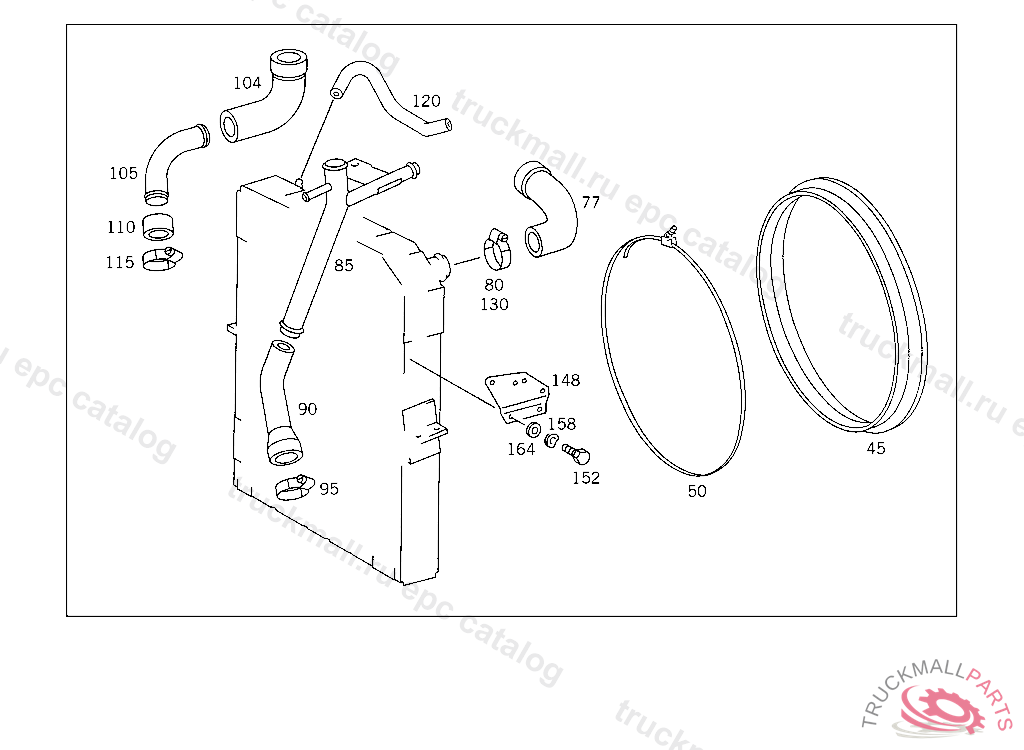

Поз.
Артикул
Описание
45
BOOT FAN SHROUD
45
BOOT FAN SHROUD TO FAN RING
50
CLAMP FAN SHROUD TO FAN RING
50
CLAMP BOOT TO FAN SHROUD
77
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
77
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
77
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
77
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
80
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
80
CLAMP HOSE 70-90X13 MM
80
CLAMP , Replaced By: N000000000674
80
CLAMP , Replaced By: N000000000671
85
LINE COOLING WATER,4 829878
90
HOSE FROM RADIATOR TO OIL COOLER
90
HOSE FROM RADIATOR TO OIL COOLER,4 829879
95
CLAMP HOSE 70-90X13 MM
95
CLAMP , Replaced By: N000000000674
104
HOSE FROM RADIATOR OUTLET TO WATER PUMP
104
HOSE FROM RADIATOR TO WATER PUMP
105
PIPE ELBOW FROM RADIATOR TO WATER PUMP, 415 5 014668 416 5 000515 417 4 972023
110
HOSE FROM RADIATOR TO WATER PUMP, 415 5 014668 416 5 000515 417 4 972023
115
CLAMP HOSE 70-90X13 MM
115
CLAMP , Replaced By: N000000000674
120
HOSE DE-AERATION LINE 12X21X390
120
HOSE DE-AERATION LINE TO HEATER AND TO RADIATOR
120
HOSE VENTILATION, FROM RADIATOR TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
130
CLAMP HOSE TO FLANGE AND TO VALVE
148
BRACKET OIL DIPSTICK TO RADIATOR
152
SCREW LICENSE PLATE TO BRACKET
152
SCREW , Replaced By: N304017006020
152
SCREW COVER PLATE TO BRACKET
158
SPRING WASHER LICENSE PLATE TO BRACKET
164
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
164
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
164
WASHER COMPRESSED AIR LINE TO BRACKET
999
BOOT FAN SHROUD TO FAN RING
999
FLANGE HEATING AND VENTILATION
999
FAN SHROUD RADIATOR
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OIL DIPSTICK TO RADIATOR
999
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
999
RUBBER MOUNTING RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR MOUNTING,4 428845
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
CLAMP
999
RADIATOR , Replaced By: A0015010901
999
RADIATOR WATER BEHR
