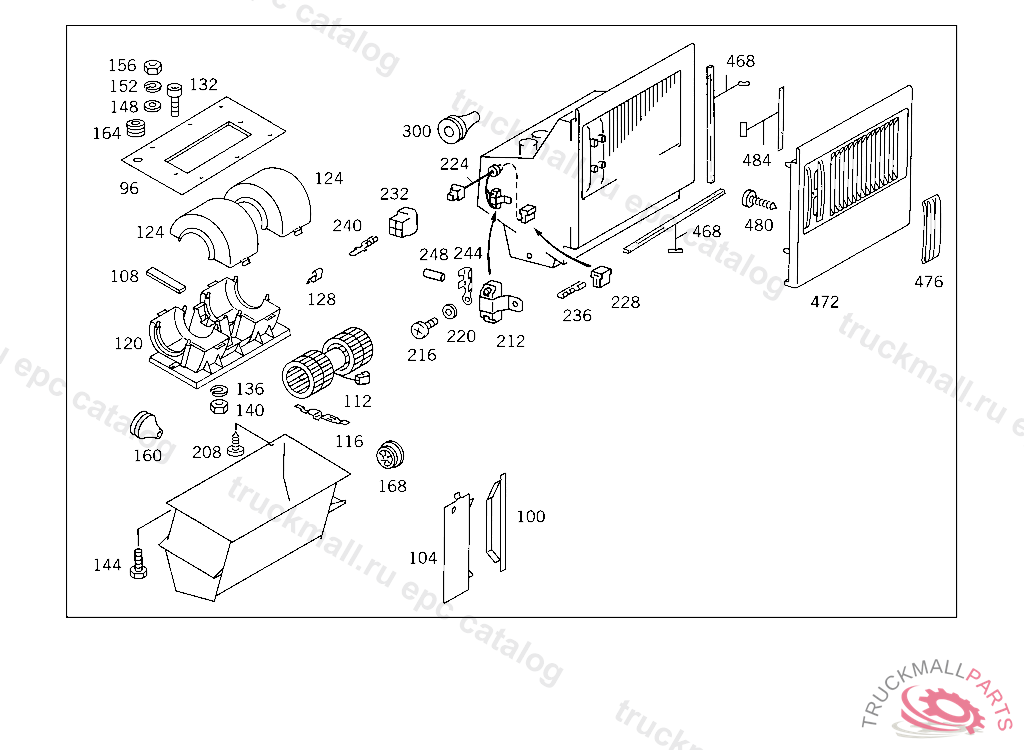

Поз.
Артикул
Описание
96
PLATE
96
HOTPLATE FLAP TO HOUSING
100
COVERING
104
COVERING
108
PLASTIC SECTION , ORDER BY THE METER
112
BLOWER
116
STRAP
120
HOUSING
124
COVER
128
SPRING
132
SCREW
136
LOCK WASHER CABLE TO FUSE BOX
140
NUT
144
SCREW BRACKET TO TAIL LAMP BRACKET
148
WASHER , Replaced By: N000433005304
152
LOCK WASHER STEP SWITCH
156
NUT TACHOGRAPH TO BRACKET
160
GROMMETD6/32
164
GROMMET ,D 314239
168
COVER
208
SHEET METAL SCREW WIRE CABLE TO CAB
212
RESISTOR
216
SCREW CABLE TO FUSE BOX M 6X12
220
WASHER PLUG SOCKET TO BRACKET
224
CABLE HARNESS CABLE HARNESS
228
PIN BUSHING HOUSING BIPOLAR
232
PLUG HOUSING 4-POLE
236
PIN BUSHING , Replaced By: A0075458226
240
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
244
CABLE SHOE. CABLE LUGH2.11/12, A4-2.5 TO 0045424420 / 4520
248
GROMMET3.0 MM
300
GROMMETD6/32
468
RUBBER PAD FLAP TO LEVER, TO BE ADAPTED DURING ASSEMBLY
472
COVER FRONT END HEATER
476
COVERING FRONT END HEATER
480
SHEET METAL SCREW COVERING TO COVER
484
PLASTIC SECTION , ORDER BY THE METER
999
LOCKING CAP AT WATER EXPANSION TANK
999
LOCKING CAP COOLING WATER LINE
999
SEPARATOR (BUBBLE SEPARATOR)
999
SHAFT SHUT-OFF VALVE
999
GUSSET PLATE FRONT, NOT USED
999
BRACKET SHUT-OFF VALVE
999
HOSE FROM INTERMEDIATE PIECE TO HEATING PIPE, NOT USED
999
HOSE
999
BRACKET HEATER UNIT, NOT USED
999
INTERMEDIATE PIECE HEATING WATER LINE, NOT USED
999
HOSE FROM RADIATOR TO WATER PUMP
