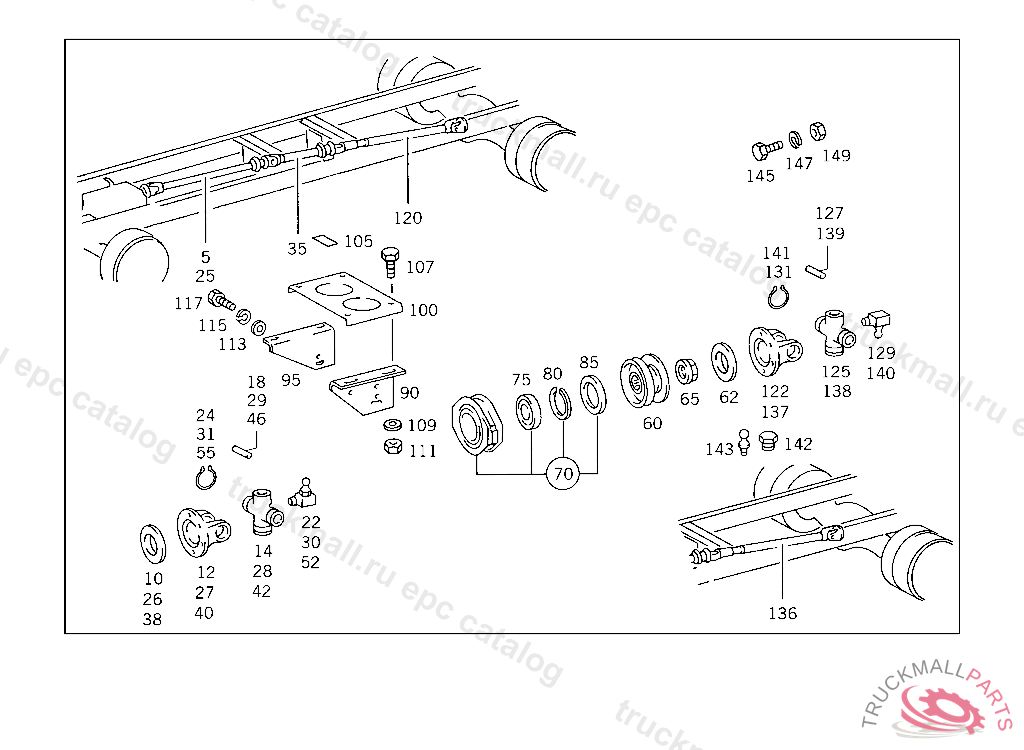

Поз.
Артикул
Описание
5
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 846 MM,4 277507
10
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
10
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
12
DRIVE FLANGE
14
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
18
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
22
GREASE NIPPLE
24
SNAP RING2.700 MM
24
SNAP RING2.550 MM
24
SNAP RING2.650 MM
24
SNAP RING2.750 MM
24
SNAP RING2.500 MM
24
SNAP RING2.600 MM
25
PROPELLER SHAFT
26
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING WITH LOCK
27
DRIVE FLANGE
28
UNIVERSAL JOINT CROSS WITH BUSHINGS
28
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
29
NEEDLE SET124 PIECES, WITH BOOT
30
GREASE NIPPLE
31
LOCK AS REQUIRED 1.65 MM
31
LOCK AS REQUIRED 1.85 MM
31
LOCK RING AS REQUIRED 1.75 MM
31
LOCK AS REQUIRED 1.70 MM
31
LOCK AS REQUIRED 1.90 MM
31
LOCK AS REQUIRED 1.80 MM
60
FLANGE PROPELLER SHAFT BEARING,4 188089 FLANGE MOUNTING:NUT
60
CENTERING FLANGE PROPELLER SHAFT BEARING
60
CENTERING FLANGE INTERMEDIATE BEARING,5 298189
62
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
62
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
65
NUT COUPLING FLANGE TO DRIVE SHAFT,5 298189
65
NUT FOLLOWER FLANGE TO PROPELLER SHAFT
70
INTERMEDIATE BEARING PROPELLER SHAFT, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
70
INTERMEDIATE BEARING , Replaced By: A3814101222
70
INTERMEDIATE BEARING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK, Replaced By: A3814101522, +002A3814130461, +004N000933010105
70
REPAIR KIT , Replaced By: A3814100222
70
INTERMEDIATE BEARING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK, Replaced By: A3854101722, +002A3854130461, +004N000933010105
70
INTERMEDIATE BEARING , Replaced By: A9734100022, +002A9734110052
70
INTERMEDIATE BEARING PROPELLER SHAFT BEARING, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
75
BALL BEARING , Replaced By: A0079818525
75
BALL BEARING INTERMEDIATE SHAFT BEARING, INTERMEDIATE BEARING, BALL BEARING WITH LOCK
80
LOCK INTERMEDIATE SHAFT BEARING, INTERMEDIATE BEARING, BALL BEARING WITH LOCK
80
SNAP RING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
85
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
85
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
90
BRACKET PROPELLER SHAFT BEARING,LEFT
95
BRACKET PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
100
REINFORCEMENT PROPELLER SHAFT BEARING
105
REINFORCEMENT MOUNTING USED FOR FRAME CONNECTION PARTS
107
SCREW BRACKET TO CROSS MEMBER
109
WASHER STRUT TO CROSS MEMBER
109
WASHER , Replaced By: N007349010007
111
NUT BRACKET TO CROSS MEMBER
113
WASHER STRUT TO CROSS MEMBER
113
WASHER , Replaced By: N007349010007
115
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
117
SCREW BRACKET TO FRAME SIDE MEMBER
117
SCREW END PIECE TO EXHAUST PIPE M 10X25
120
PROPELLER SHAFT , BEARING BUSHING O.D.,38 MM4 6519494 805903, Replaced By: A6744100202
136
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE 1580 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
137
DRIVE FLANGE
138
UNIVERSAL JOINT CROSS WITH BUSHINGS
139
NEEDLE SET124 PIECES, WITH BOOT
140
GREASE NIPPLE
141
LOCK AS REQUIRED 1.80 MM
141
LOCK AS REQUIRED 1.85 MM
141
LOCK AS REQUIRED 1.70 MM
141
LOCK RING AS REQUIRED 1.75 MM
141
LOCK AS REQUIRED 1.65 MM
141
LOCK AS REQUIRED 1.90 MM
142
PLUG
147
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
149
NUT FROM PROPELLER SHAFT TO FRONT AXLE
999
EXPANSION PLUG
999
BEARING BUSHING
999
SPACER WASHER PROPELLER SHAFT BEARING
