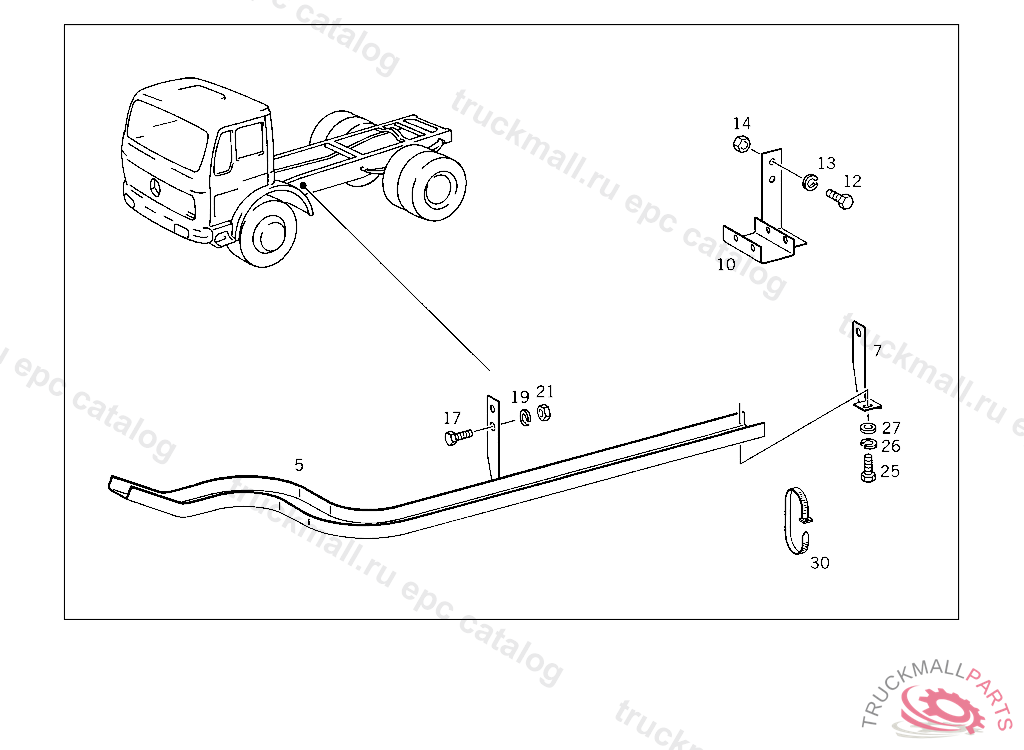

Поз.
Артикул
Описание
5
RAIL BATTERY CABLE FIXTURE TO FRAME SIDE MEMBER
5
RAIL BATTERY CABLE FIXTURE TO FRAME SIDE MEMBER
7
BRACKET ,4 436301
7
BRACKET ,4 436301
7
BRACKET
7
BRACKET
10
BRACKET ELECTRIC CABLE TO FRAME,4 436302
12
SCREW PIPE CLAMP
12
SCREW , Replaced By: N304017008021
13
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
14
NUT
17
SCREW PIPE CLAMP
17
SCREW , Replaced By: N304017008021
17
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
19
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
19
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
21
NUT
21
NUT BRACKET TO SUPPORT AND TO END PIECE
25
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
25
SCREW , Replaced By: N304017008016
26
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
27
WASHER EXHAUST MUFFLER TO STRAP
27
WASHER , Replaced By: N000125008443
30
LOOM TIE LINE MOUNTING
