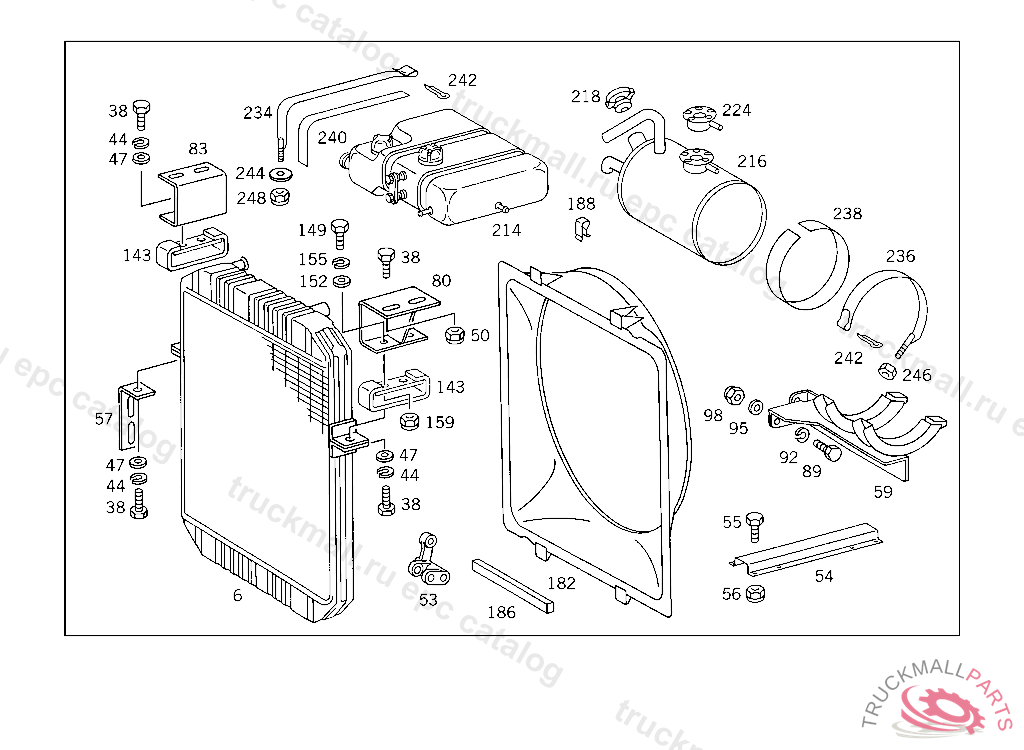

L 1215 - 384.002 - 50 RADIATOR
Поз.
Артикул
Описание
38
SCREW , Replaced By: N304017010040
47
WASHER GROUND CABLE
50
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
80
BRACKET , Replaced By: A3845008331
80
BRACKET LEFT
143
RUBBER MOUNTING RADIATOR
143
RUBBER MOUNTING RADIATOR
143
RUBBER MOUNTING RADIATOR
149
SCREW CROSS MEMBER TO SIDE MEMBERS
149
SCREW COLD START SYSTEM TO BRACKET
152
WASHER GROUND CABLE
188
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
218
RADIATOR CAP FILLER NECK
