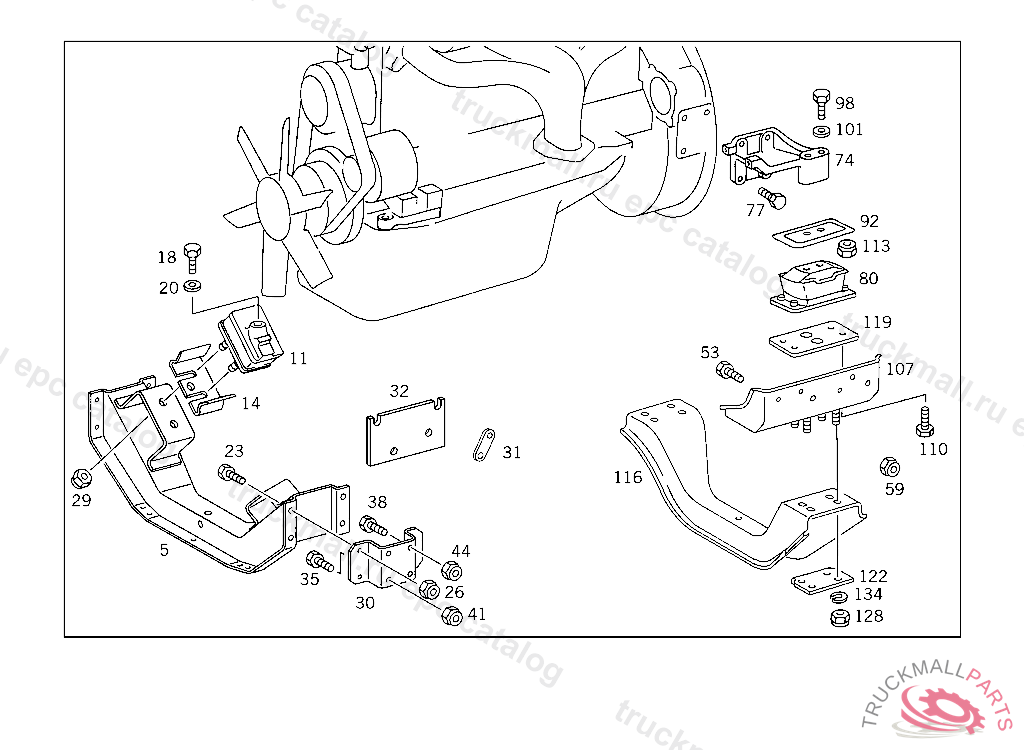

Поз.
Артикул
Описание
5
ENGINE SUPPORT FRONT
11
RUBBER MOUNTING ENGINE SUSPENSION
11
RUBBER MOUNTING ENGINE FRONT SUSPENSION
11
RUBBER MOUNTING ENGINE FRONT SUSPENSION
14
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
18
SCREW ENGINE SUPPORT TO RUBBER MOUNTING M 16X1.5X40
18
SCREW , Replaced By: N308676016014
20
WASHER CONSOLE TO FRAME
23
SCREW BRACKET TO CROSS MEMBER,024208
26
NUT , Replaced By: N910113010002
29
NUT SUPPORT TO SIDE MEMBER
30
ENGINE STAY , NOT USED
30
CONSOLE LEFT,D 034636
30
CONSOLE RIGHT,D 034636
30
ENGINE STAY , NOT USED
31
SHIM LEFT AND RIGHT CONSOLES TO SUBSTRUCTURE
32
SHIM FRONT LEFT AND RIGHT,D 034636
35
SCREW PROPELLER SHAFT BEARING TO CROSS MEMBER
38
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
38
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
38
SCREW , Replaced By: N000961012184
38
SCREW , Replaced By: N308676012018
38
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
41
NUT , Replaced By: N910113010002
44
NUT ALTERNATOR TO SUPPORT
53
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
59
NUT ALTERNATOR TO SUPPORT
74
ENGINE SUPPORT REAR LEFT
74
ENGINE SUPPORT ENGINE RIGHT SUPPORT
77
SCREW ENGINE REAR SUPPORT TO RUBBER MOUNTING M 16X45
80
RUBBER MOUNTING REAR
80
RUBBER MOUNTING
80
RUBBER MOUNTING REAR
92
SCREENING PLATE REAR RUBBER MOUNTING
98
SCREW ENGINE TO ENGINE REAR MOUNTING M 14X1.5X90
101
WASHER CROSS MEMBER TO SUPPORT
107
CONSOLE REAR RUBBER MOUNTING
110
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
110
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
110
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
113
NUT ALTERNATOR TO SUPPORT
116
ENGINE CROSS MEMBER REAR
119
WASHER ENGINE REAR SUSPENSION
122
REINFORCEMENT RIGHT
122
REINFORCEMENT LEFT
